Article no.: F032113654

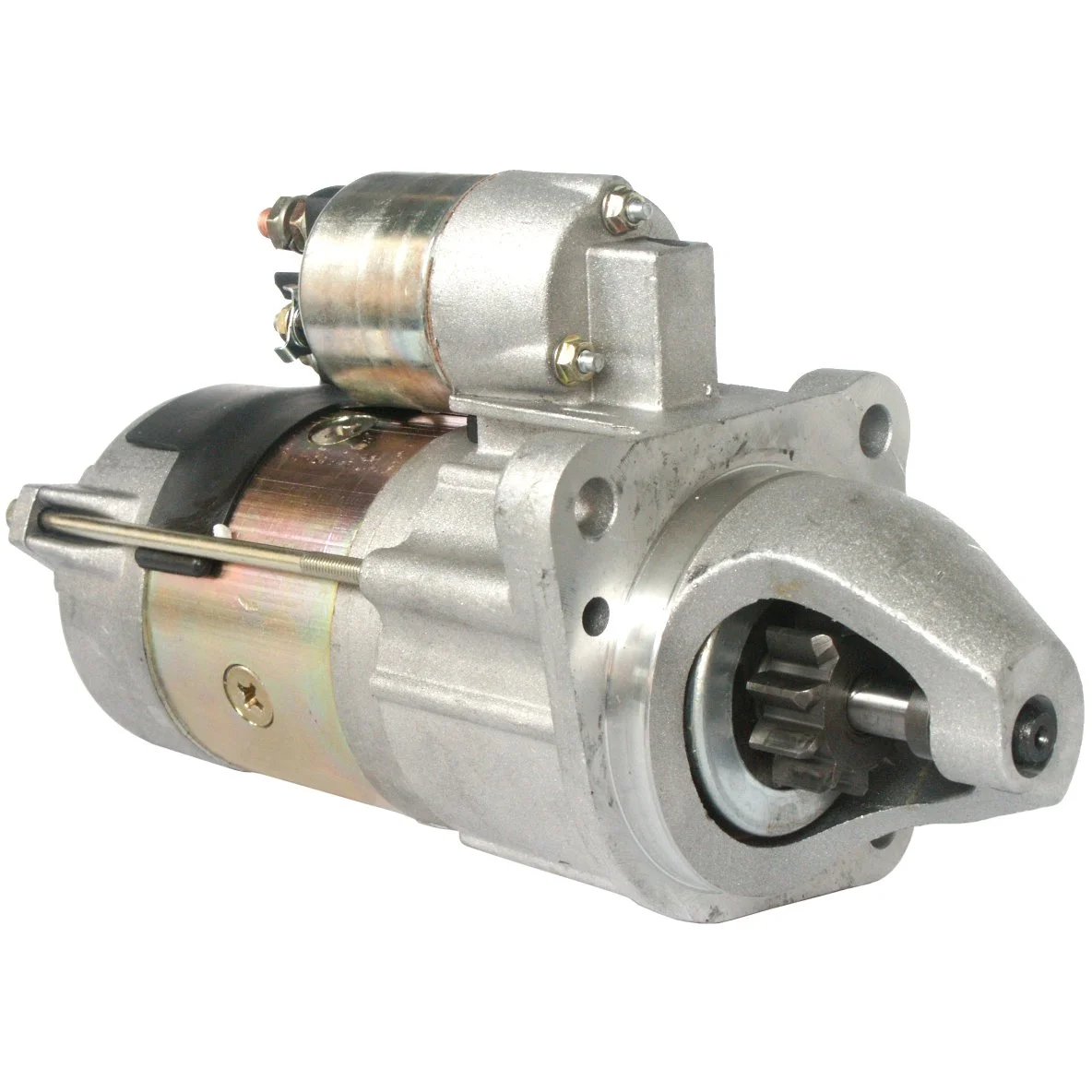

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kilowatts: 3.0
Mounting flange: 89.00
Drive distance: 30.50
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/rear: 194.00
Distance/front: 68.00
Number/teeth: 10
B+: M8
Position/B+: 60
Thread length mm: 20.00
Position/50: 20
Terminal 50: M6
Gear type: GR
Distance 2: 126.50
Distance 3: 89.50
Distance mm: 89.50
Rotation: CW
Position/b-: 7
B-: M8
Total length mm: 292.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Info: HC-CARGO 113654 is a Marelli/Denso version
Remarks: Optional use HC-CARGO 115389
Number/mounting holes: 3 (0)

Files

  • OEM
    F032113654, T400267, 312-7539, 2873k404, 40003A, 428000-1380, 702284, 781742, 788129, 63280040

  • Normalised article numbler
    bso7310, f032113654, les0272, msn8040, s4029, s9172, t400267, 8ea015642001, 2873k404, 18941, 18941nik, 40003a, 220814, 220814a, 254194, 702284, 781742, 788129, 3127539, 11090180, 63280040, 4280001380
  • Description
    Voltage: 12
    kilowatts: 3.0
    Mounting flange: 89.00
    Drive distance: 30.50
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/rear: 194.00
    Distance/front: 68.00
    Number/teeth: 10
    B+: M8
    Position/B+: 60
    Thread length mm: 20.00
    Position/50: 20
    Terminal 50: M6
    Gear type: GR
    Distance 2: 126.50
    Distance 3: 89.50
    Distance mm: 89.50
    Rotation: CW
    Position/b-: 7
    B-: M8
    Total length mm: 292.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Info: HC-CARGO 113654 is a Marelli/Denso version
    Remarks: Optional use HC-CARGO 115389
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113654, T400267, 312-7539, 2873k404, 40003A, 428000-1380, 702284, 781742, 788129, 63280040

    • Normalised article numbler
      bso7310, f032113654, les0272, msn8040, s4029, s9172, t400267, 8ea015642001, 2873k404, 18941, 18941nik, 40003a, 220814, 220814a, 254194, 702284, 781742, 788129, 3127539, 11090180, 63280040, 4280001380
