Article no.: F032113655

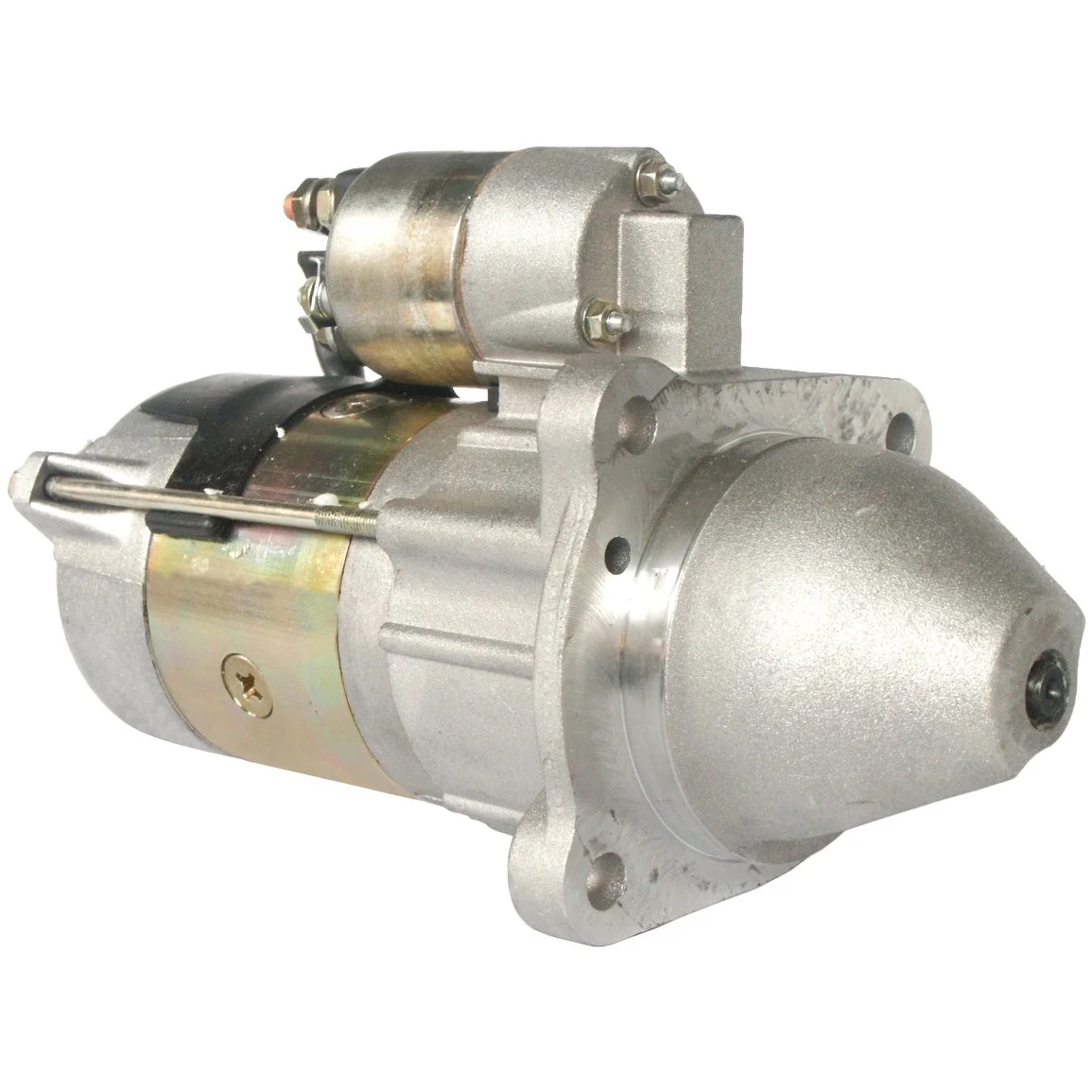

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mounting flange: 89.00
Drive distance: 30.50
Mounting hole 3 mm: 11.50
Mounting hole 2 mm: 11.50
Mounting hole 1 mm: 11.50
Distance/ back: 196.50
Distance/ front: 68.50
Number/ teeth: 10
B+: M8
Thread length mm: 19.00
Position/50: 20
Terminal 50: M6
Gear type: GR
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 126.50
Rotation: CW
Total length mm: 291.00
Clutch type: Dry
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Information: HC-CARGO 113655 is a Marelli/Denso version
Remarks: Marelli/Denso version.
Number/ mounting holes: 3 (0)

Files

  • OEM
    F032113655, 2873k405, 428000-1290, 63280041

  • Normalised article numbler
    bso7311, cst30170, f032113655, les0271, lrs02425, msn8041, s4030, str70057, 8ea015642131, 2873k405, 18940n, 220702, 220702a, 254097, 254193, 11090183, 63280041, 4280001290
  • Description
    Voltage: 12
    kW: 3.0
    Mounting flange: 89.00
    Drive distance: 30.50
    Mounting hole 3 mm: 11.50
    Mounting hole 2 mm: 11.50
    Mounting hole 1 mm: 11.50
    Distance/ back: 196.50
    Distance/ front: 68.50
    Number/ teeth: 10
    B+: M8
    Thread length mm: 19.00
    Position/50: 20
    Terminal 50: M6
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 126.50
    Rotation: CW
    Total length mm: 291.00
    Clutch type: Dry
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Information: HC-CARGO 113655 is a Marelli/Denso version
    Remarks: Marelli/Denso version.
    Number/ mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113655, 2873k405, 428000-1290, 63280041

    • Normalised article numbler
      bso7311, cst30170, f032113655, les0271, lrs02425, msn8041, s4030, str70057, 8ea015642131, 2873k405, 18940n, 220702, 220702a, 254097, 254193, 11090183, 63280041, 4280001290
