Article no.: F032113665

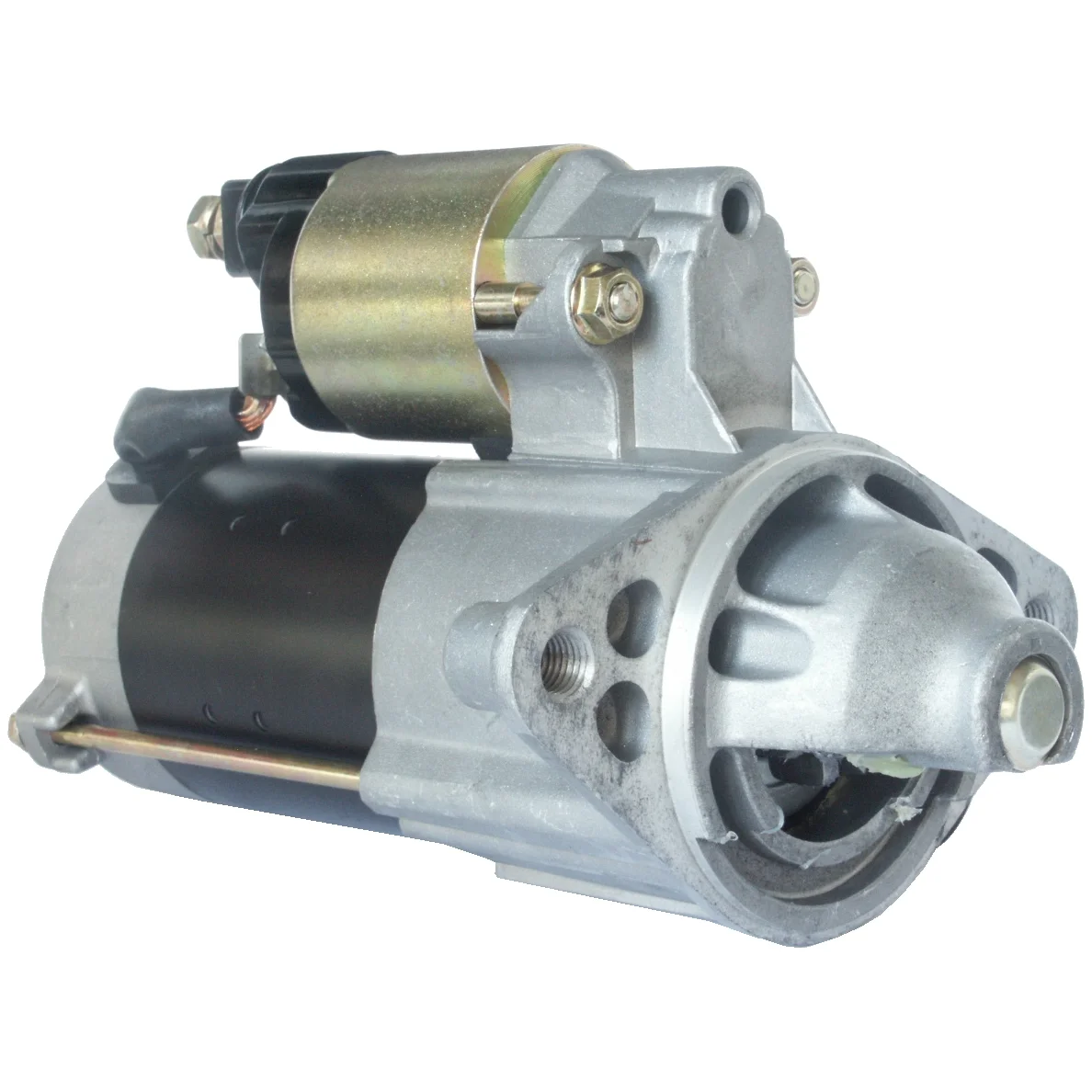

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.8
Mounting flange: 74.00
Drive distance: 5.00
Distance/rewind: 164.00
Distance/forward: 40.00
Number of teeth: 9
B+: M8
Position/B+: 60
Position/50: 42
Terminal 50: Plug
Gear type: DD/GR
Distance in mm: 114.00
Rotation: CW
Total length in mm: 206.50
Clutch type: Wet
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (2)

Files

  • OEM
    F032113665, js1023, 6858, 28100-11060, 28100-11080, 28100-11140, 228000-4020, 228000-6730

  • Normalised article numbler
    cst44110, drs3379, f032113665, f042000201, f042s00201, js1023, s6321s, s8907, snd0220, st00147r, str8261, str8279, 8ea011611271, 8ea737356001, 4508, 6858, 17285, 17679, 17679n, 21840nd, 103726, 105021, 201023, 252218, 252234, 446741, 11040611, 11040612, 11040624, 335045092, 335212092, 0986018741, 0986019111, 0986019121, 2280004020, 2280006730, 2810011060, 2810011080, 2810011140
  • Description
    Voltage: 12
    kW: 0.8
    Mounting flange: 74.00
    Drive distance: 5.00
    Distance/rewind: 164.00
    Distance/forward: 40.00
    Number of teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 42
    Terminal 50: Plug
    Gear type: DD/GR
    Distance in mm: 114.00
    Rotation: CW
    Total length in mm: 206.50
    Clutch type: Wet
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032113665, js1023, 6858, 28100-11060, 28100-11080, 28100-11140, 228000-4020, 228000-6730

    • Normalised article numbler
      cst44110, drs3379, f032113665, f042000201, f042s00201, js1023, s6321s, s8907, snd0220, st00147r, str8261, str8279, 8ea011611271, 8ea737356001, 4508, 6858, 17285, 17679, 17679n, 21840nd, 103726, 105021, 201023, 252218, 252234, 446741, 11040611, 11040612, 11040624, 335045092, 335212092, 0986018741, 0986019111, 0986019121, 2280004020, 2280006730, 2810011060, 2810011080, 2810011140
