HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113668

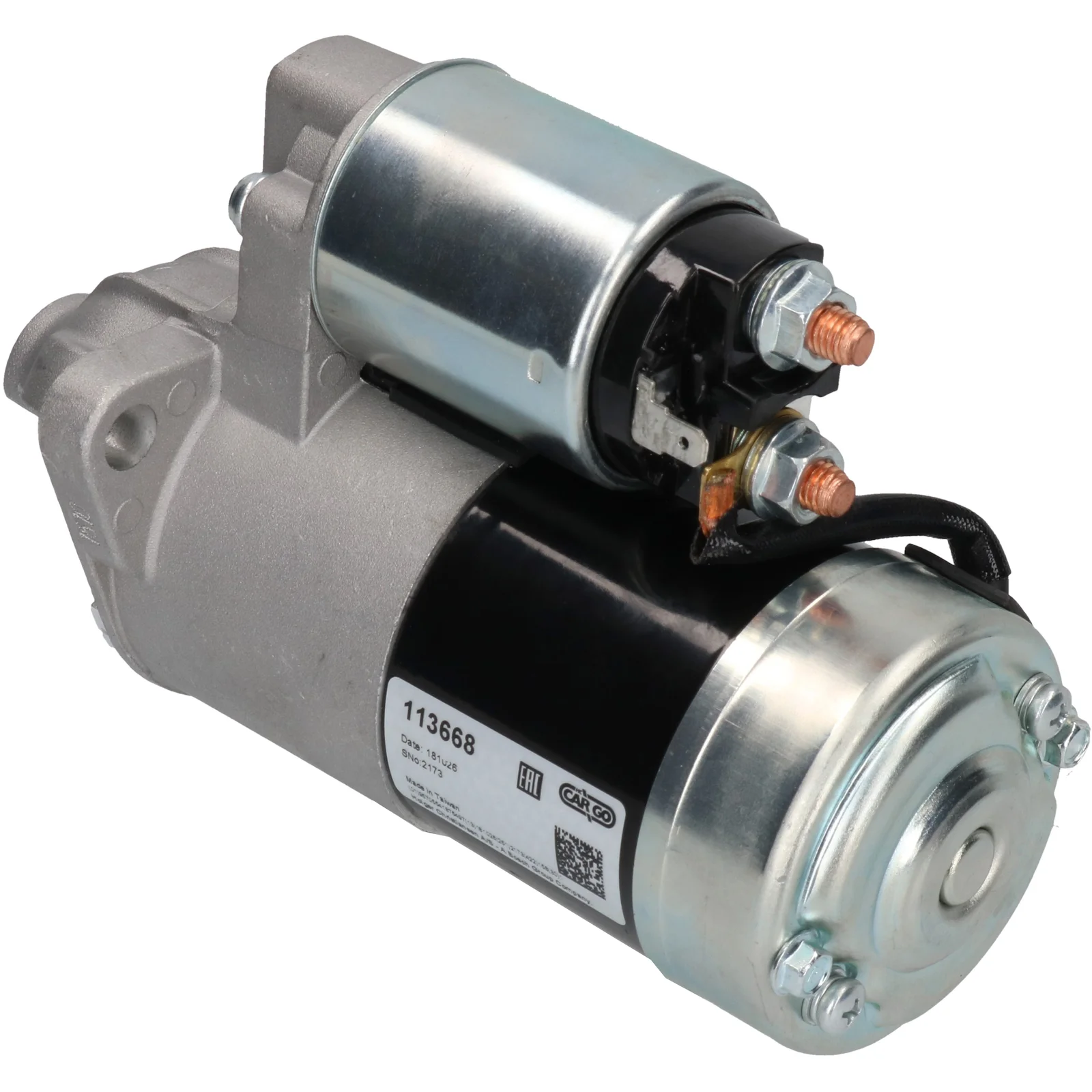

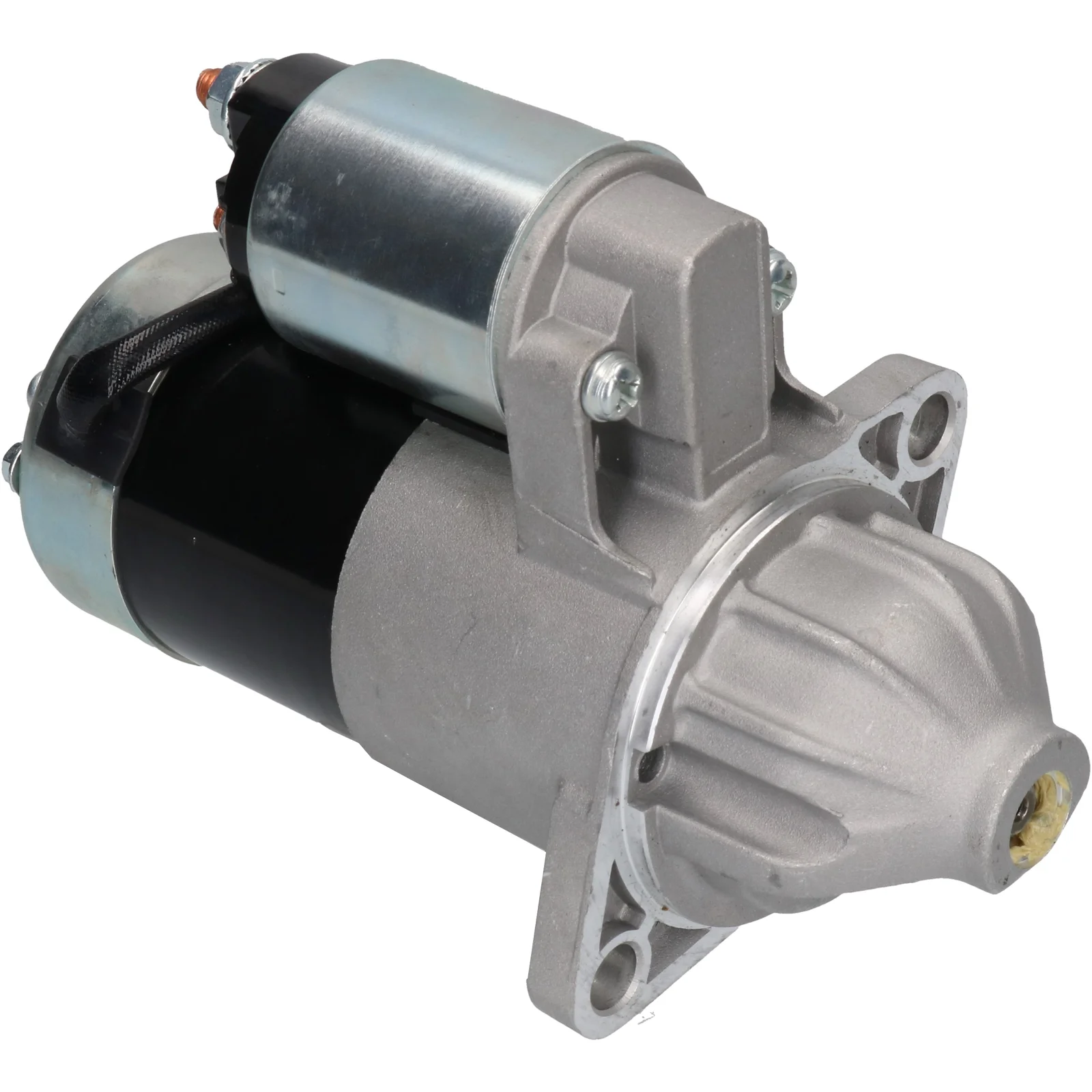

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mount. flange: 77.00
Drive dist.: 18.00
Mount. hole 2 mm: 11.20
Mount. hole 1 mm: 11.20
Dist./back: 154.50
Dist./front: 53.50
No./teeth: 10
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 104.50
Rotation: CW
Total length mm: 208.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: w/ and w/o bendix housing are interchangeable.
No./mount. holes: 2 (0)

Files

  • OEM
    F032113668, js915, M002T58581, M002T58881, m2t58581, m2t58881, s9463, 115518, 115519, 918306

  • Normalised article numbler
    acs116, drs3235, f032113668, f042001175, f042s01175, js915, m002t58581, m002t58881, m2t58581, m2t58881, s5021, s8325, s9463, sm0046r, smt0102, sr5037x, str7002, 8ea737116001, 4327, 17110, 17110n, 17110r, 21612mi, 69207, 115518, 115519, 252140, 918306, 3025527, 11040341, 91273094, 150515112, 626012112
  • Description
    Voltage: 12
    kW: 1.2
    Mount. flange: 77.00
    Drive dist.: 18.00
    Mount. hole 2 mm: 11.20
    Mount. hole 1 mm: 11.20
    Dist./back: 154.50
    Dist./front: 53.50
    No./teeth: 10
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 104.50
    Rotation: CW
    Total length mm: 208.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: w/ and w/o bendix housing are interchangeable.
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113668, js915, M002T58581, M002T58881, m2t58581, m2t58881, s9463, 115518, 115519, 918306

    • Normalised article numbler
      acs116, drs3235, f032113668, f042001175, f042s01175, js915, m002t58581, m002t58881, m2t58581, m2t58881, s5021, s8325, s9463, sm0046r, smt0102, sr5037x, str7002, 8ea737116001, 4327, 17110, 17110n, 17110r, 21612mi, 69207, 115518, 115519, 252140, 918306, 3025527, 11040341, 91273094, 150515112, 626012112
