Article no.: F032113677

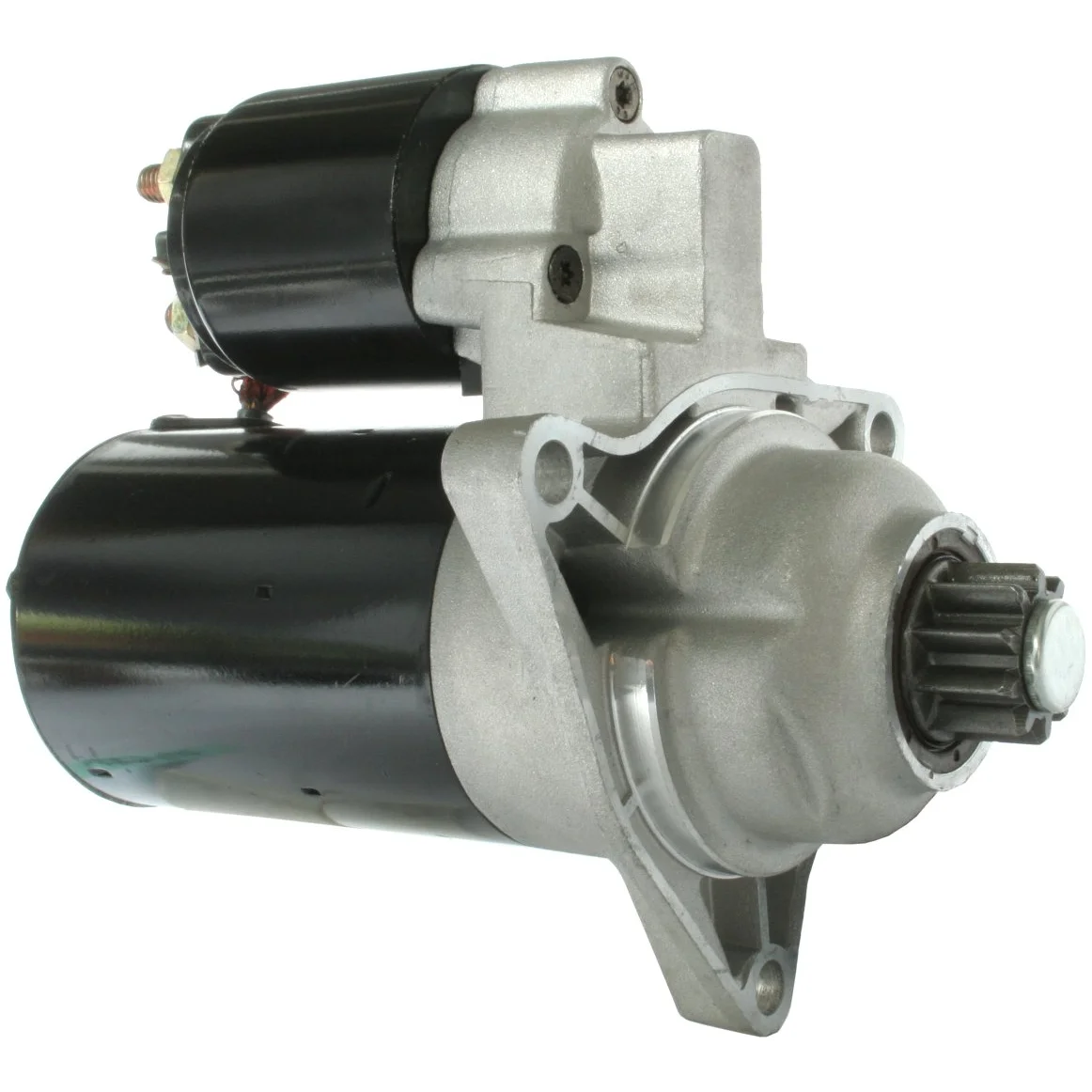

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 10, Rotation: CCW

Description

Voltage: 12
kW: 1.1
Mount. flange: 76.20
Drive dist.: 52.50
Mount. hole 3 mm: 9.00
Mount. hole 2 mm: 9.00
Mount. hole 1 mm: 9.00
Dist./back: 142.00
Dist./front: 56.50
No./teeth: 10
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. 2: 106.00
Dist. 3: 101.50
Dist. mm: 101.50
Rotation: CCW
Total length mm: 213.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Files

  • OEM
    aze2640, cs1176, cs597, F032113677, 02b911023b, 02B911023BX, 02b911023f, 02B911023FX, 11.131.178, 0001107005, 0001107006, 0001108096, 0001108097, 0001121010, 0001121011, 1516679R, 1516781R, 9141390, 443115141319

  • Normalised article numbler
    aze2640, cs1176, cs597, cst10327, drs6750, drs6990, f032113677, f042002024, f042s02024, f042s0h058, lrs00893, lrs02033, ms412, qs1942, s0131, s0401, str2030, strh058, 02b911023b, 02b911023bx, 02b911023f, 02b911023fx, 8ea726221001, 8ea737742001, 1455, 3025, 10597, 11717, 33031n, 101176, 103415, 104553, 251312, 252451, 455979, 0001107005, 0001107006, 0001108096, 0001108097, 0001121010, 0001121011, 1516679r, 1516781r, 4116750, 8016750, 9141390, 11016750, 11018470, 11131178, 42016750, 311040102, 311062092, 311084092, 0986016750, 0986018470, 443115141319, 943241009010, 943253159010, 944280167500
  • Description
    Voltage: 12
    kW: 1.1
    Mount. flange: 76.20
    Drive dist.: 52.50
    Mount. hole 3 mm: 9.00
    Mount. hole 2 mm: 9.00
    Mount. hole 1 mm: 9.00
    Dist./back: 142.00
    Dist./front: 56.50
    No./teeth: 10
    B+: M8
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Dist. 2: 106.00
    Dist. 3: 101.50
    Dist. mm: 101.50
    Rotation: CCW
    Total length mm: 213.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      aze2640, cs1176, cs597, F032113677, 02b911023b, 02B911023BX, 02b911023f, 02B911023FX, 11.131.178, 0001107005, 0001107006, 0001108096, 0001108097, 0001121010, 0001121011, 1516679R, 1516781R, 9141390, 443115141319

    • Normalised article numbler
      aze2640, cs1176, cs597, cst10327, drs6750, drs6990, f032113677, f042002024, f042s02024, f042s0h058, lrs00893, lrs02033, ms412, qs1942, s0131, s0401, str2030, strh058, 02b911023b, 02b911023bx, 02b911023f, 02b911023fx, 8ea726221001, 8ea737742001, 1455, 3025, 10597, 11717, 33031n, 101176, 103415, 104553, 251312, 252451, 455979, 0001107005, 0001107006, 0001108096, 0001108097, 0001121010, 0001121011, 1516679r, 1516781r, 4116750, 8016750, 9141390, 11016750, 11018470, 11131178, 42016750, 311040102, 311062092, 311084092, 0986016750, 0986018470, 443115141319, 943241009010, 943253159010, 944280167500
