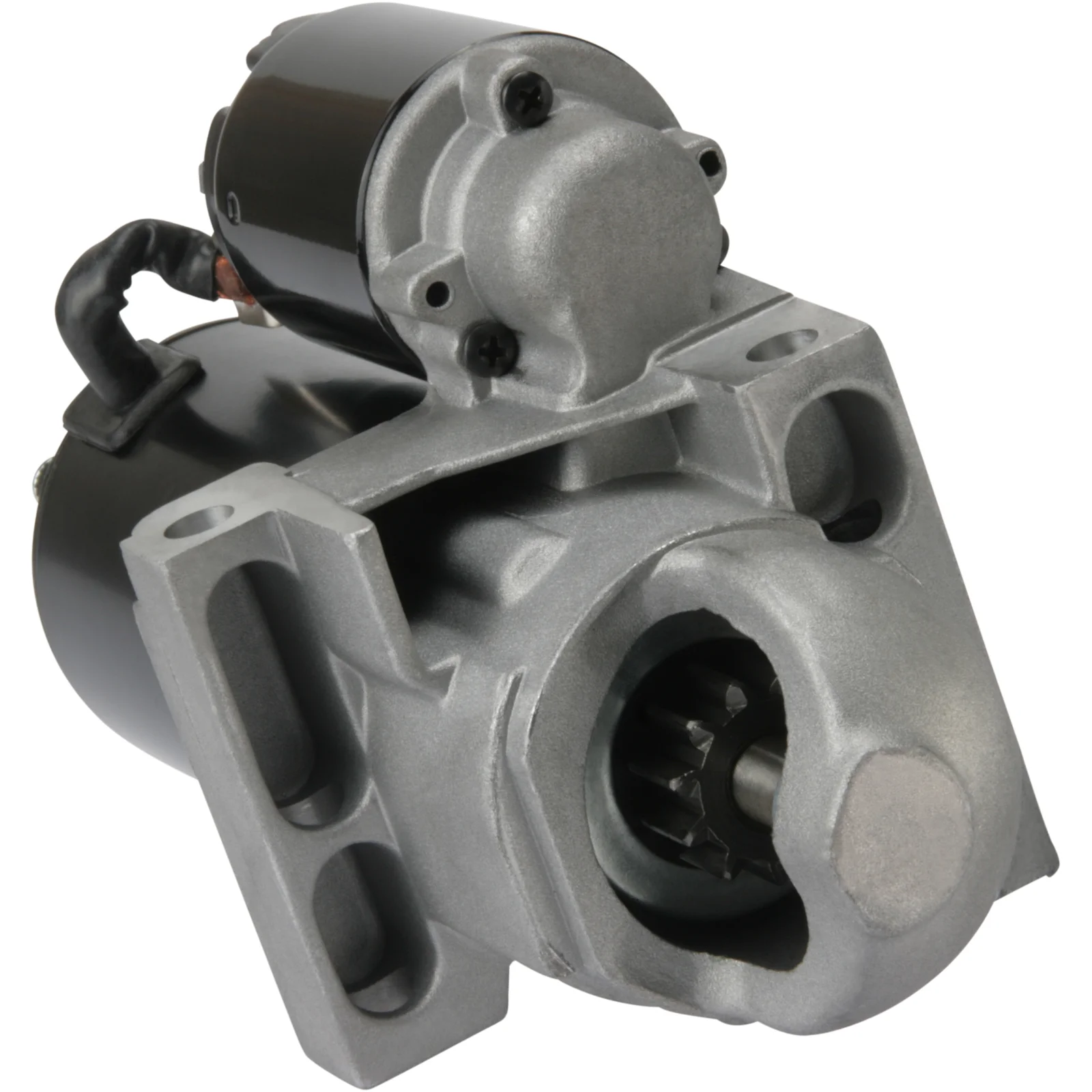

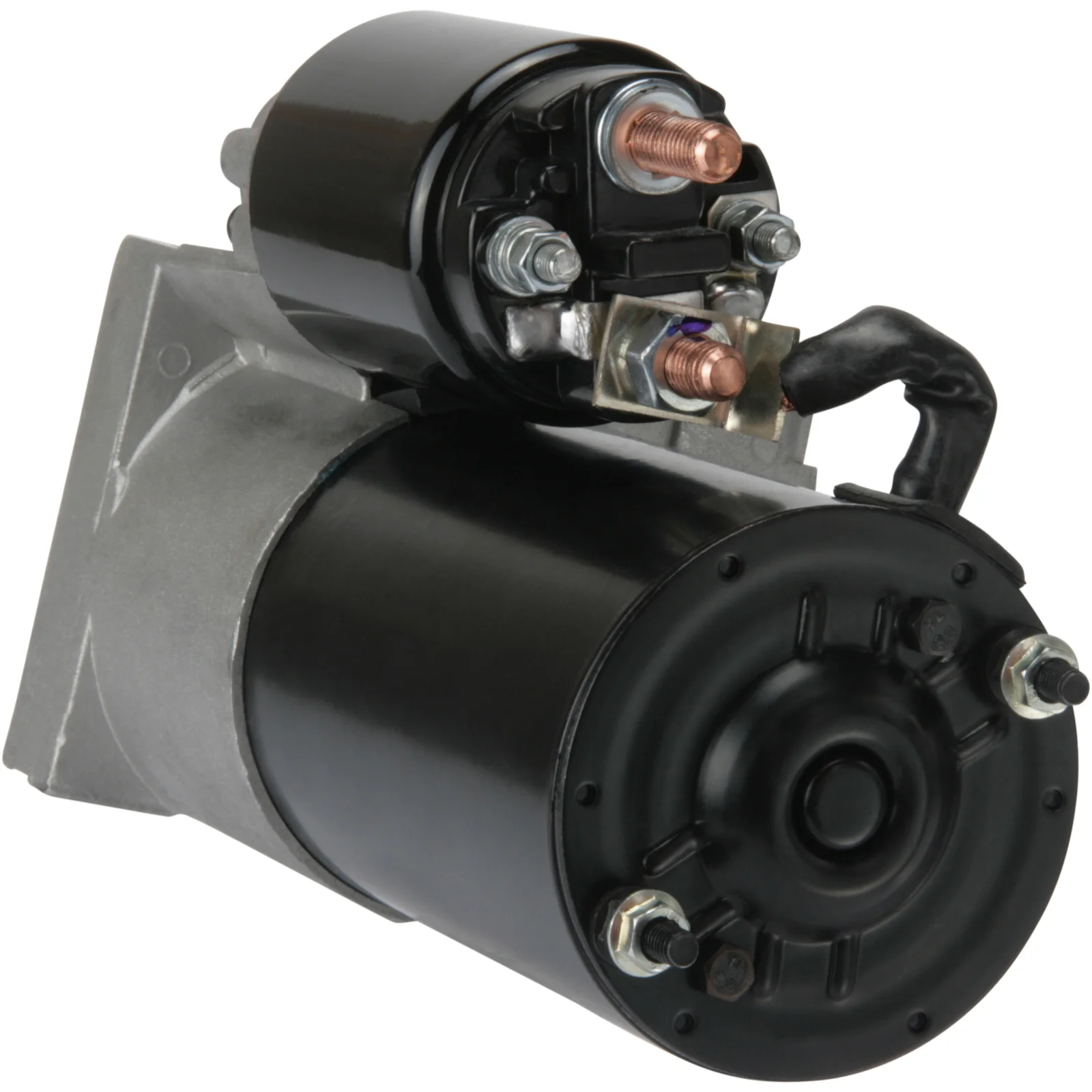

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113679

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.6, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 1.6
Drive dist.: 18.00
Mount. hole 2 mm: 10.20
Mount. hole 1 mm: 10.20
Dist./back: 171.00
Dist./front: 57.00
No./teeth: 11
B+: M8
Position/15a: 45
Terminal 15a: M5
Thread length mm: 12.00
Position/50: 15
Terminal 50: M5
Gear type: GR
Dist. mm: 83.00
Rotation: Clockwise
Total length mm: 243.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: Replacing: PG260L.
No./mount. holes: 2 (0)

Files

  • OEM
    F032113679, 30470, 9000885

  • Normalised article numbler
    f032113679, s1008, s1437, sdr0031, sr8538x, 6407n, 6407r, 6562nm, 6562r, 22323dr, 22323dr2, 30470, 1469604, 9000885, 11090140
  • Description
    Voltage: 12
    kW: 1.6
    Drive dist.: 18.00
    Mount. hole 2 mm: 10.20
    Mount. hole 1 mm: 10.20
    Dist./back: 171.00
    Dist./front: 57.00
    No./teeth: 11
    B+: M8
    Position/15a: 45
    Terminal 15a: M5
    Thread length mm: 12.00
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 83.00
    Rotation: Clockwise
    Total length mm: 243.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Replacing: PG260L.
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113679, 30470, 9000885

    • Normalised article numbler
      f032113679, s1008, s1437, sdr0031, sr8538x, 6407n, 6407r, 6562nm, 6562r, 22323dr, 22323dr2, 30470, 1469604, 9000885, 11090140
