Article no.: F032113703

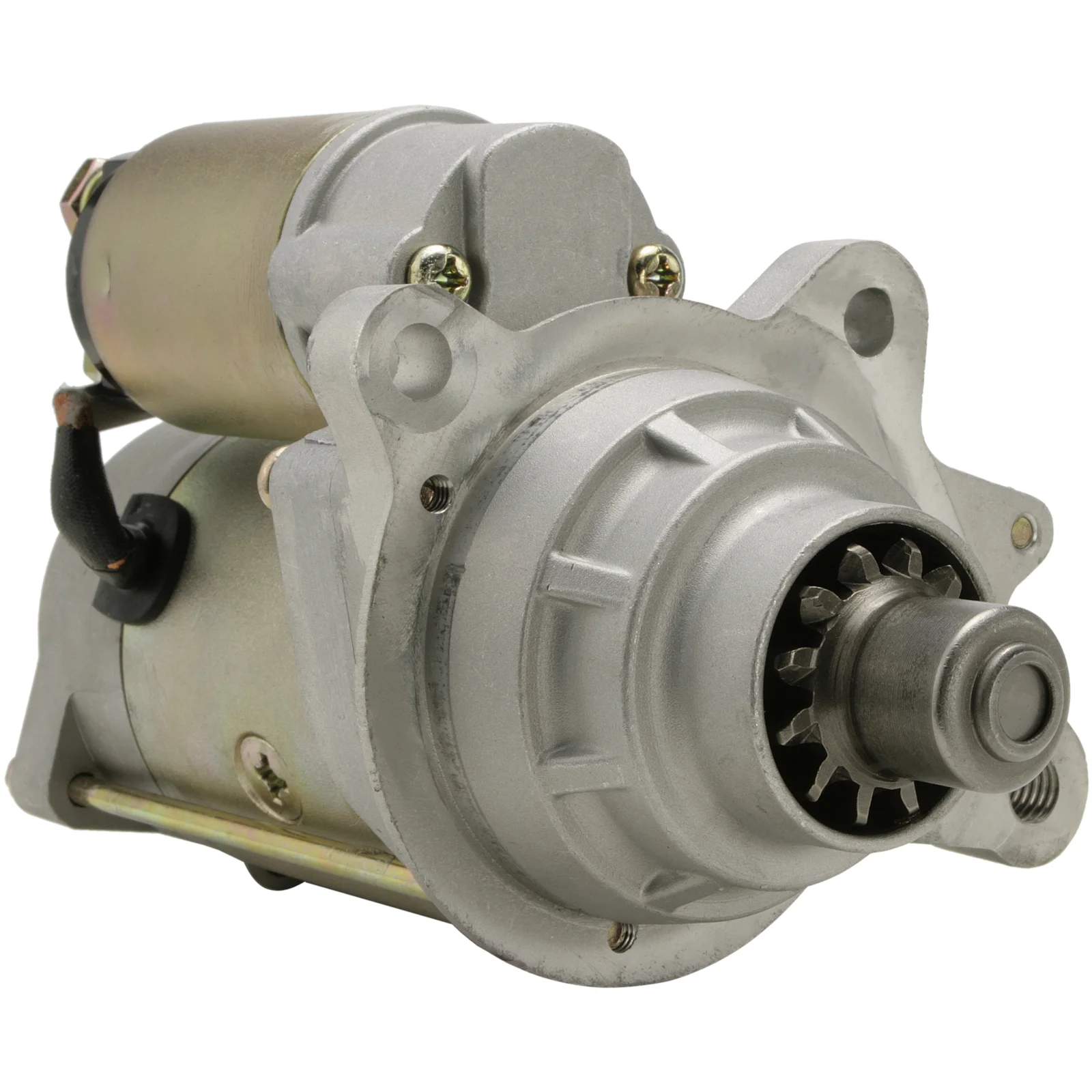

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 12, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mount. flange: 76.00
Drive dist.: 47.00
Mount. hole 3 mm: 9.50
Mount. hole 1 mm: 9.50
Dist./back: 175.50
Dist./front: 70.50
No./teeth: 12
B+: M10
Position/50: 40
Terminal 50: M6
Gear type: GR
Dist. 2: 134.00
Dist. 3: 79.00
Dist. mm: 81.00
Rotation: CW
Total length mm: 248.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (1)

Files

  • OEM
    F032113703, 3C3U11000AB, 3C3U11000AC, 3c3z11002a, 3C3Z11002AA, 6C2T11000A, 6c2t11000aa, 6c2z11002a

  • Normalised article numbler
    cst14138, f032113703, f042005033, f042s05033, ms52, s2124, s9426s, sg00158r, sr7586x, str7013, 3c3u11000ab, 3c3u11000ac, 3c3z11002a, 3c3z11002aa, 6c2t11000a, 6c2t11000aa, 6c2z11002a, 6670, 6670r, 22215fd, 28727, 106993, 91025903, 590570123
  • Description
    Voltage: 12
    kW: 3.0
    Mount. flange: 76.00
    Drive dist.: 47.00
    Mount. hole 3 mm: 9.50
    Mount. hole 1 mm: 9.50
    Dist./back: 175.50
    Dist./front: 70.50
    No./teeth: 12
    B+: M10
    Position/50: 40
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 134.00
    Dist. 3: 79.00
    Dist. mm: 81.00
    Rotation: CW
    Total length mm: 248.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032113703, 3C3U11000AB, 3C3U11000AC, 3c3z11002a, 3C3Z11002AA, 6C2T11000A, 6c2t11000aa, 6c2z11002a

    • Normalised article numbler
      cst14138, f032113703, f042005033, f042s05033, ms52, s2124, s9426s, sg00158r, sr7586x, str7013, 3c3u11000ab, 3c3u11000ac, 3c3z11002a, 3c3z11002aa, 6c2t11000a, 6c2t11000aa, 6c2z11002a, 6670, 6670r, 22215fd, 28727, 106993, 91025903, 590570123
