Article no.: F032113893

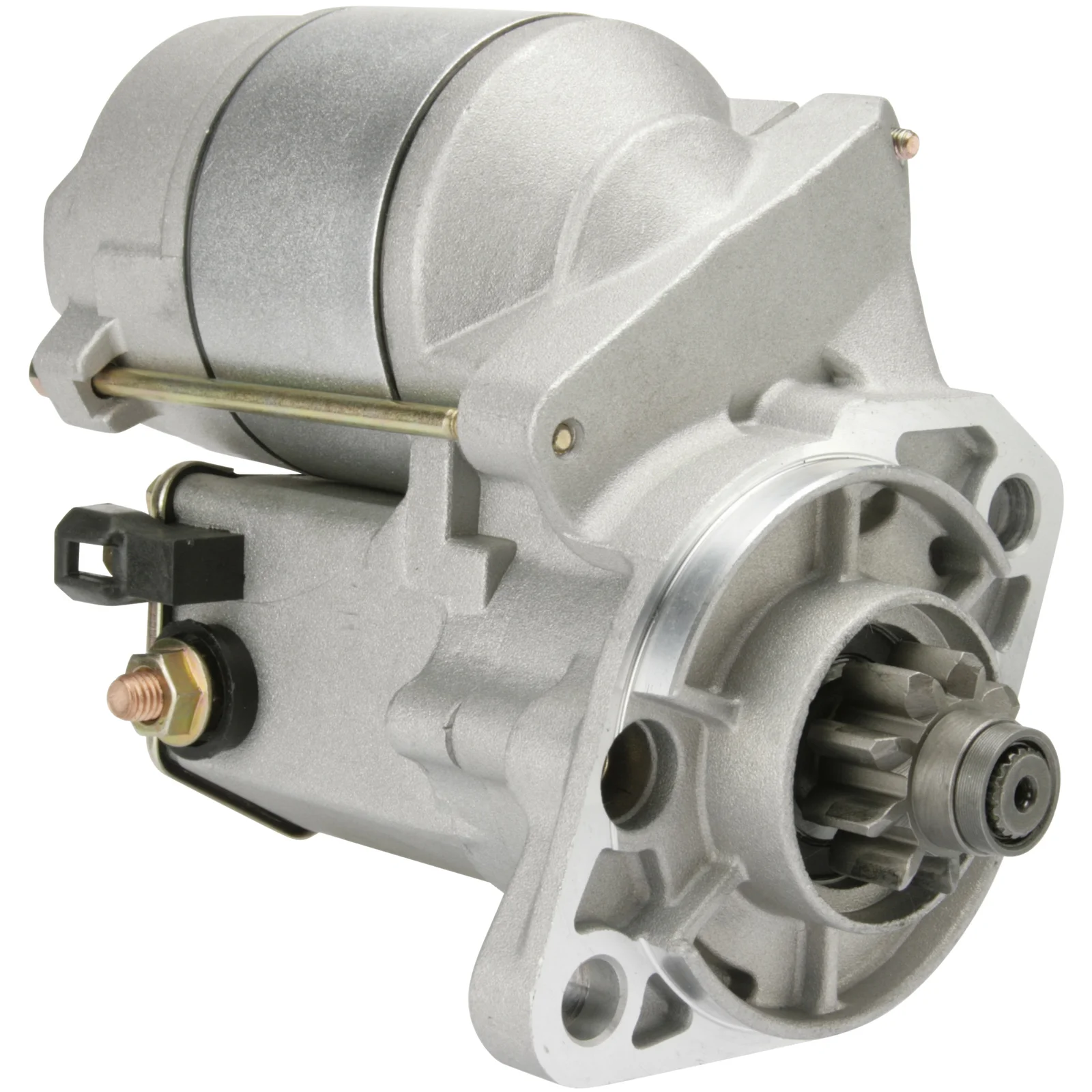

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 9, Mount. flange: 82.50

Description

Voltage: 12
kW: 1.2
Mount. flange: 82.50
Drive dist.: 25.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 118.50
Dist./front: 37.00
No./teeth: 9
B+: M8
Position/50: 40
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Total length mm: 178.50
Clutch type: Wet
Drive type: Steel
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Files

  • OEM
    F032113893, 34070-16081, 34070-16083, 34070-16800, 34070-16801, 34070-16803, 128000-8460, 128000-8461, 128000-8462

  • Normalised article numbler
    cst40530, dsn2132, f032113893, snd0324, 18145, 18145n, 22734nd, 255131, 91295349, 690538092, 1280008460, 1280008461, 1280008462, 3407016081, 3407016083, 3407016800, 3407016801, 3407016803
  • Description
    Voltage: 12
    kW: 1.2
    Mount. flange: 82.50
    Drive dist.: 25.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 118.50
    Dist./front: 37.00
    No./teeth: 9
    B+: M8
    Position/50: 40
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.00
    Total length mm: 178.50
    Clutch type: Wet
    Drive type: Steel
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113893, 34070-16081, 34070-16083, 34070-16800, 34070-16801, 34070-16803, 128000-8460, 128000-8461, 128000-8462

    • Normalised article numbler
      cst40530, dsn2132, f032113893, snd0324, 18145, 18145n, 22734nd, 255131, 91295349, 690538092, 1280008460, 1280008461, 1280008462, 3407016081, 3407016083, 3407016800, 3407016801, 3407016803
