Article no.: F032113900

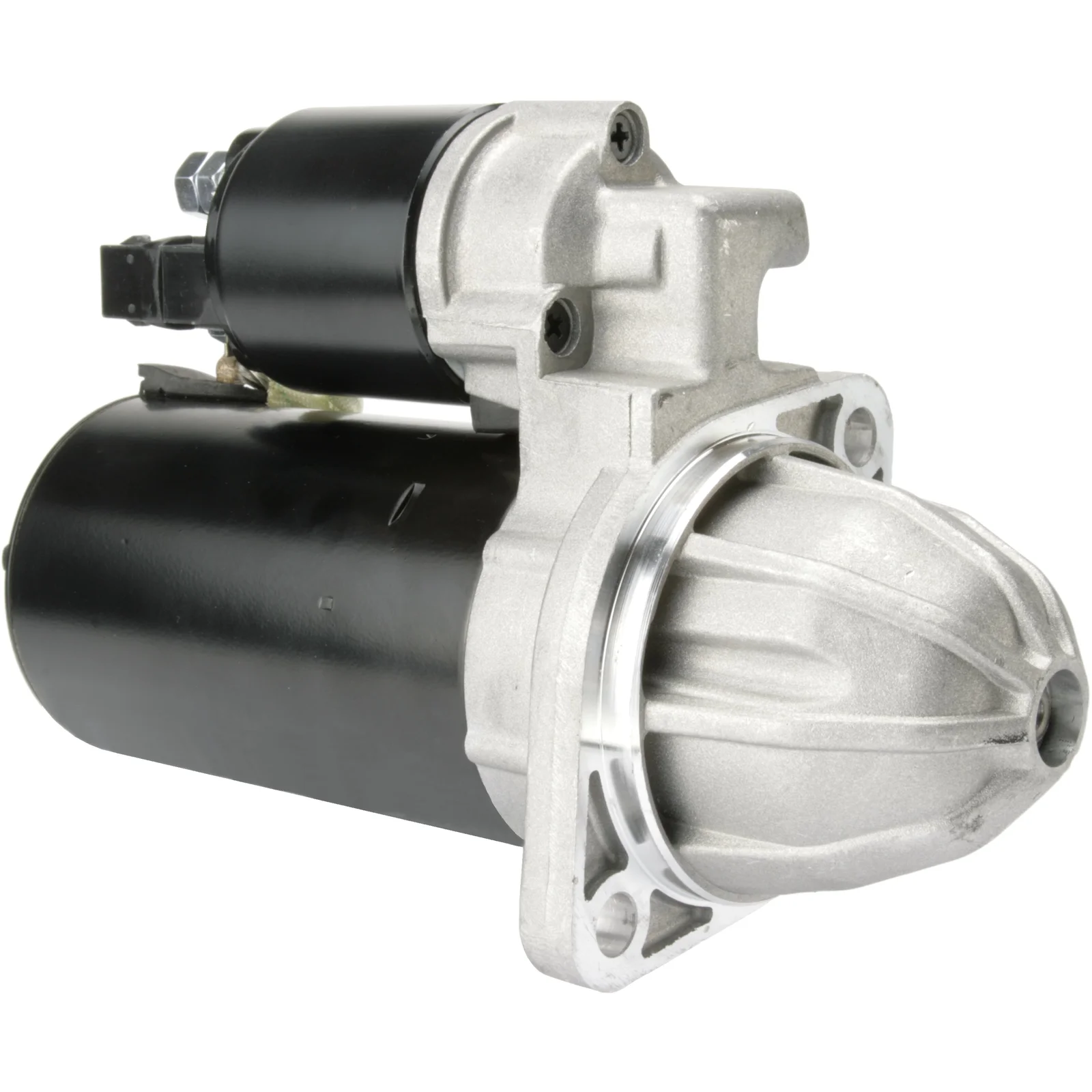

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mounting flange: 82.50
Drive distance: 26.00
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance / back: 162.00
Distance / front: 61.50
Number / teeth: 9
B+: M8
Position / 50: 17
Terminal 50: 4.80
Gear type: DD/GR
Distance in millimeters: 105.00
Rotation: CW
Total length in millimeters: 239.50
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    aze6544, F000AL0115, F032113900, RE508922, RE531243, RE540303, RE540304, RM100034, 11.131.750, 1986S00018, 1986S00736, 6004aa3014, 501844, 0001109330, 0001109331

  • Normalised article numbler
    aze6544, cst10481, f000al0115, f032113900, les0381, lrs02676, ms221, re508922, re531243, re540303, re540304, rm100034, s0259, 1986s00018, 1986s00736, 6004aa3014, 18954, 18954n, 23005bo, 106758, 254348, 254489, 501844, 0001109330, 0001109331, 11090229, 11131750, 686017092, 0986023064
  • Description
    Voltage: 12
    kW: 2.2
    Mounting flange: 82.50
    Drive distance: 26.00
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance / back: 162.00
    Distance / front: 61.50
    Number / teeth: 9
    B+: M8
    Position / 50: 17
    Terminal 50: 4.80
    Gear type: DD/GR
    Distance in millimeters: 105.00
    Rotation: CW
    Total length in millimeters: 239.50
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      aze6544, F000AL0115, F032113900, RE508922, RE531243, RE540303, RE540304, RM100034, 11.131.750, 1986S00018, 1986S00736, 6004aa3014, 501844, 0001109330, 0001109331

    • Normalised article numbler
      aze6544, cst10481, f000al0115, f032113900, les0381, lrs02676, ms221, re508922, re531243, re540303, re540304, rm100034, s0259, 1986s00018, 1986s00736, 6004aa3014, 18954, 18954n, 23005bo, 106758, 254348, 254489, 501844, 0001109330, 0001109331, 11090229, 11131750, 686017092, 0986023064
