HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113924

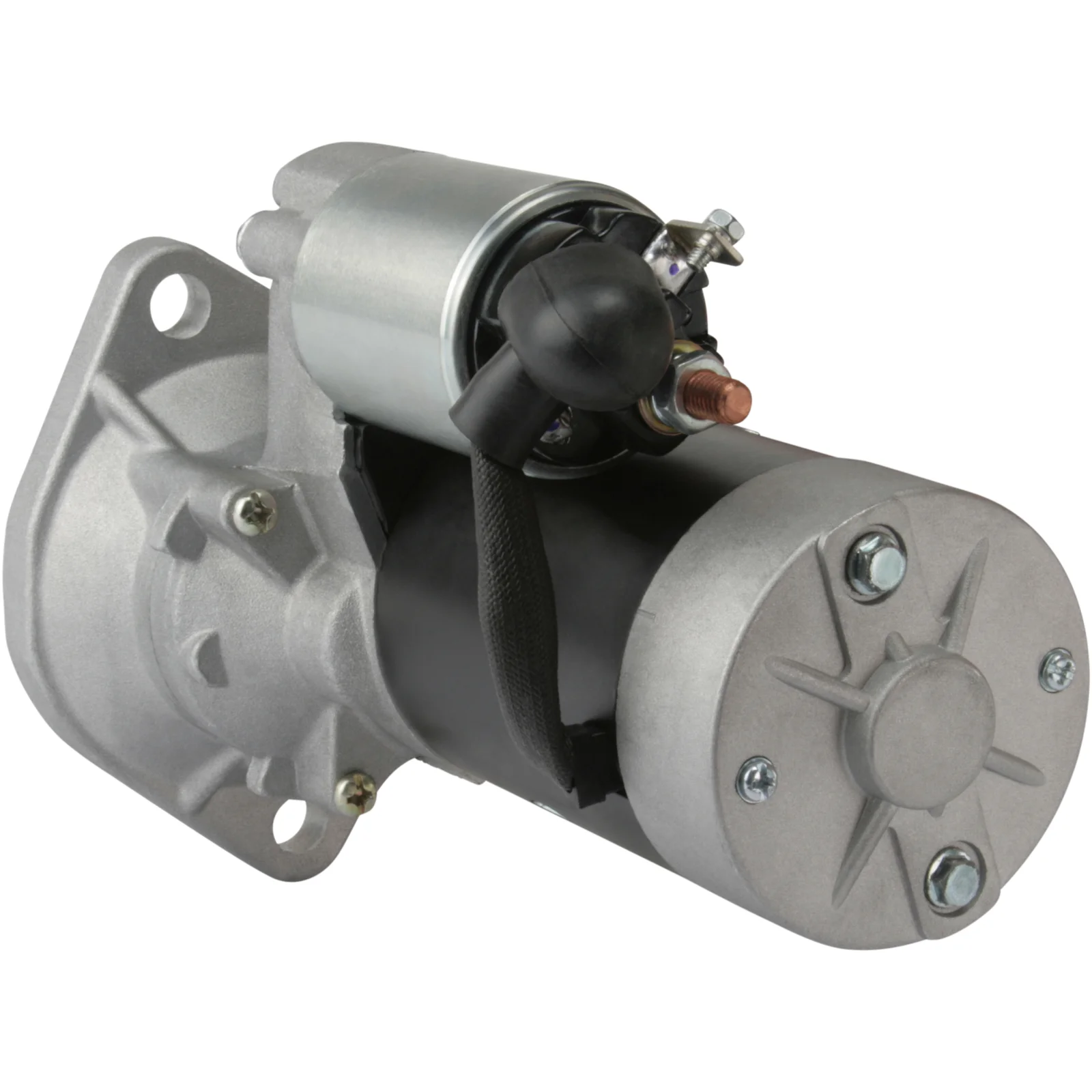

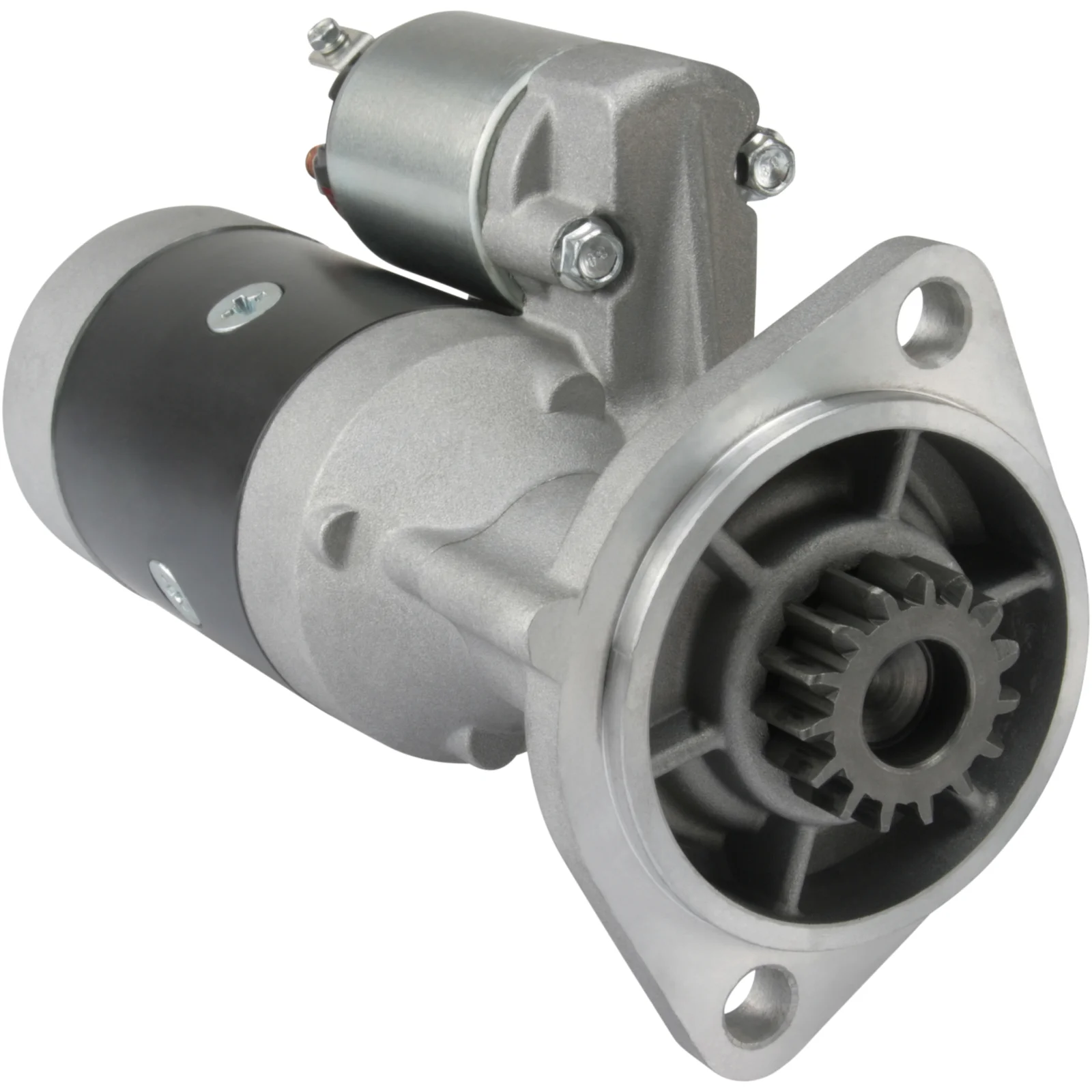

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 15, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 95.00
Drive distance: 20.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance/back: 203.00
Distance/front: 20.00
Number/teeth: 15
B+: M8
Position/50: 10
Terminal 50: M4
Gear type: DD/GR
Distance mm: 119.00
Rotation: CW
Total length mm: 226.00
Prod. info: BN
Number/mounting holes: 2 (0)

Files

  • OEM
    F032113924, js731, s114-146, s114-206, s114-244, s114-244a, s114-257, s114-257a, S114-257B, s114-257c, s114-257d, s114-257g, s114-257h, s114-349, s114-349a, s114-349b, S114-448, s114-483, s114-483a, 105891-77010, 124772-77020, 128000-0711, 171008-77010

  • Normalised article numbler
    drs3247, f032113924, js731, lrs01120, lrs01162, pbns3032, s114146, s114206, s114244, s114244a, s114257, s114257a, s114257b, s114257c, s114257d, s114257g, s114257h, s114349, s114349a, s114349b, s114448, s114483, s114483a, 8ea730271001, 4254, 18205n, 20731, 33549, 33729, 33794, 220578, 220578a, 250423, 251048, 251150, 252322, 255060, 11040493, 682006152, 682011152, 682034152, 980001152, 980002152, 980538152, 1280000711, 10589177010, 12477277020, 17100877010
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 95.00
    Drive distance: 20.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance/back: 203.00
    Distance/front: 20.00
    Number/teeth: 15
    B+: M8
    Position/50: 10
    Terminal 50: M4
    Gear type: DD/GR
    Distance mm: 119.00
    Rotation: CW
    Total length mm: 226.00
    Prod. info: BN
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113924, js731, s114-146, s114-206, s114-244, s114-244a, s114-257, s114-257a, S114-257B, s114-257c, s114-257d, s114-257g, s114-257h, s114-349, s114-349a, s114-349b, S114-448, s114-483, s114-483a, 105891-77010, 124772-77020, 128000-0711, 171008-77010

    • Normalised article numbler
      drs3247, f032113924, js731, lrs01120, lrs01162, pbns3032, s114146, s114206, s114244, s114244a, s114257, s114257a, s114257b, s114257c, s114257d, s114257g, s114257h, s114349, s114349a, s114349b, s114448, s114483, s114483a, 8ea730271001, 4254, 18205n, 20731, 33549, 33729, 33794, 220578, 220578a, 250423, 251048, 251150, 252322, 255060, 11040493, 682006152, 682011152, 682034152, 980001152, 980002152, 980538152, 1280000711, 10589177010, 12477277020, 17100877010
