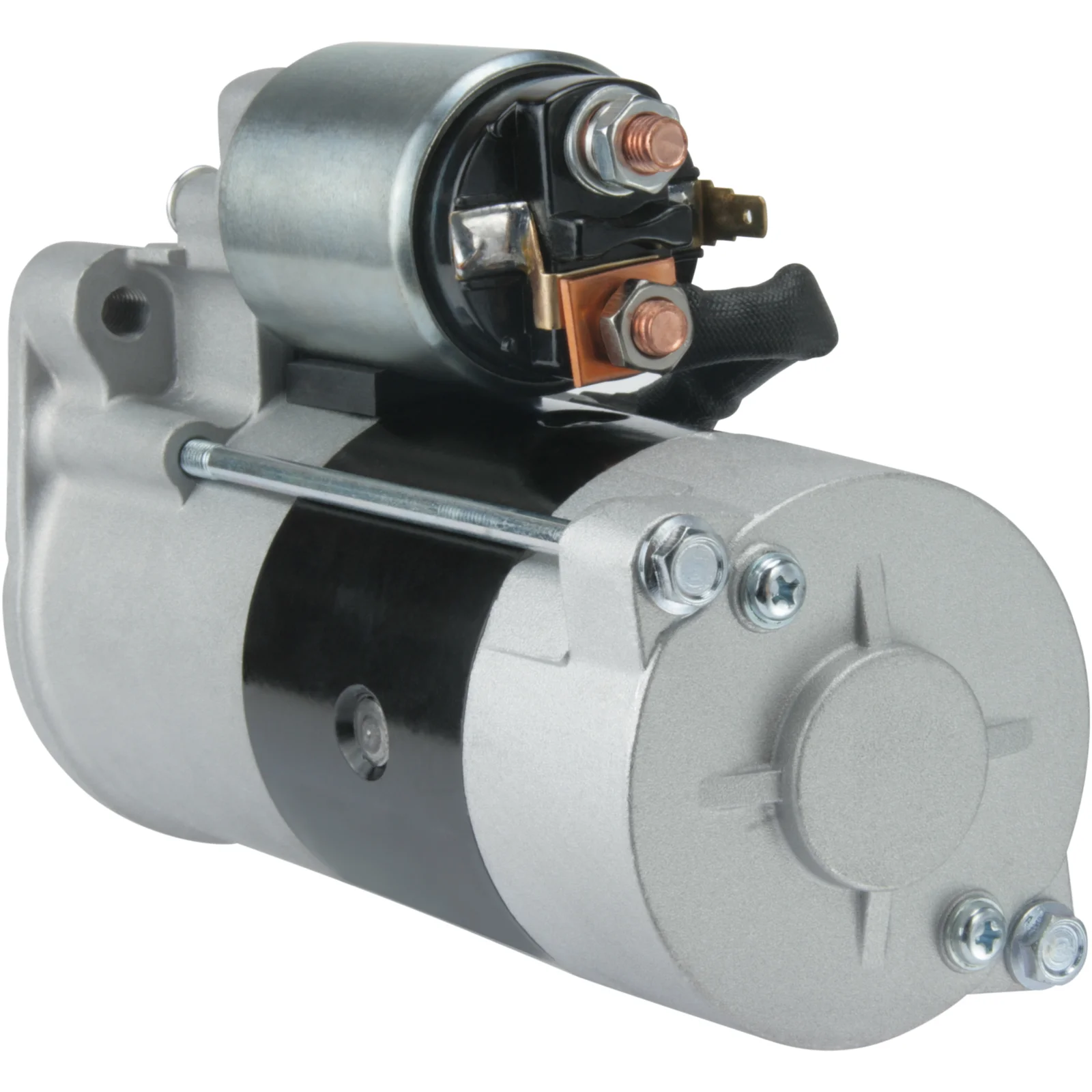

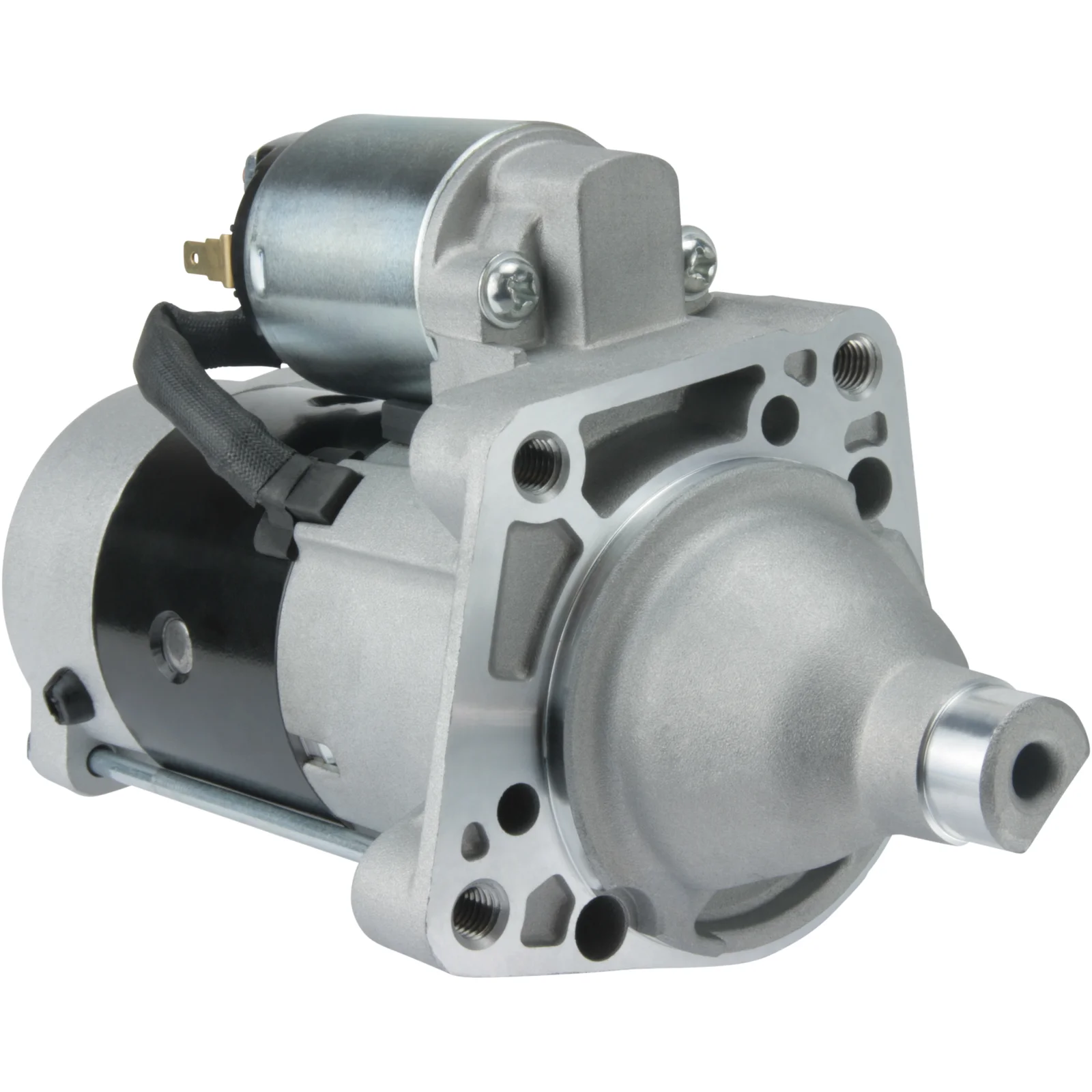

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113977

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mounting flange: 82.00
Drive distance: 9.00
Mounting hole 3 mm: M10
Distance / back: 181.00
Distance / front: 68.50
Number / teeth: 9
B+: M8
Terminal 50: 6.30
Gear type: GR
Distance 2: 70.50
Distance 3: 67.50
Distance mm: 113.00
Rotation: CW
Total length mm: 251.00
Number / mounting holes: 3 (3)

Files

  • OEM
    cs1482, F032113977, K04868860AA, M002T88971, m2t88971, M2T88971ZC, 04868860AA, 4868860aa

  • Normalised article numbler
    cs1482, cst35207, drs0095, f032113977, k04868860aa, les0405, lrs02356, m002t88971, m2t88971, m2t88971zc, s5099, 8ea011611971, 3662, 32716, 32716n, 106865, 220711, 220711a, 254028, 254394, 458900, 04868860aa, 4868860aa, 8080360, 11040783, 42024390, 634037092, 0986024390
  • Description
    Voltage: 12
    kW: 2.2
    Mounting flange: 82.00
    Drive distance: 9.00
    Mounting hole 3 mm: M10
    Distance / back: 181.00
    Distance / front: 68.50
    Number / teeth: 9
    B+: M8
    Terminal 50: 6.30
    Gear type: GR
    Distance 2: 70.50
    Distance 3: 67.50
    Distance mm: 113.00
    Rotation: CW
    Total length mm: 251.00
    Number / mounting holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      cs1482, F032113977, K04868860AA, M002T88971, m2t88971, M2T88971ZC, 04868860AA, 4868860aa

    • Normalised article numbler
      cs1482, cst35207, drs0095, f032113977, k04868860aa, les0405, lrs02356, m002t88971, m2t88971, m2t88971zc, s5099, 8ea011611971, 3662, 32716, 32716n, 106865, 220711, 220711a, 254028, 254394, 458900, 04868860aa, 4868860aa, 8080360, 11040783, 42024390, 634037092, 0986024390
