HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114003

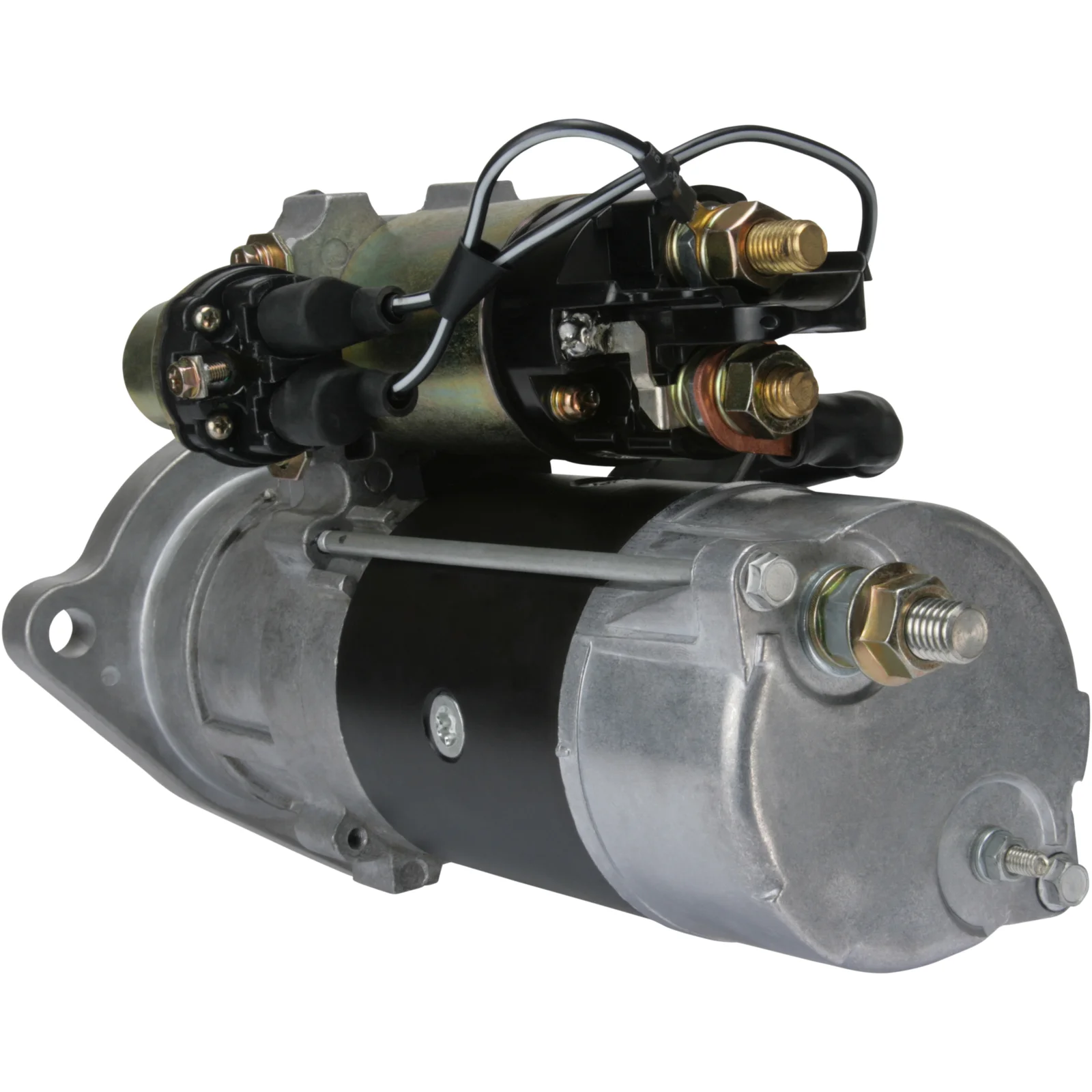

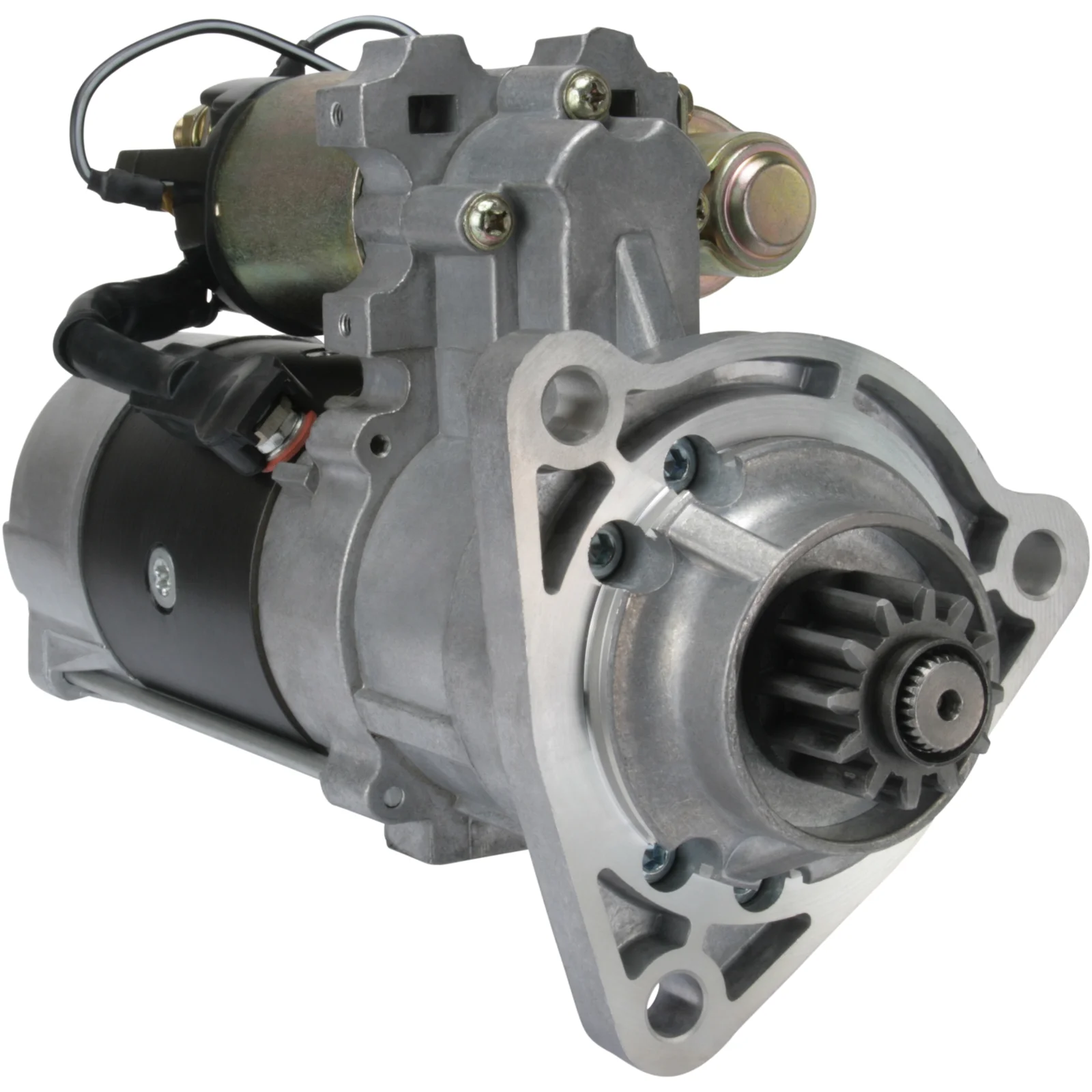

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 5.0, No./teeth: 12, Rotation: CW

Description

Voltage: 12
kW: 5.0
Mount. flange: 92.00
Drive dist.: 47.50
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 296.00
Dist./front: 56.00
No./teeth: 12
B+: M12
Thread length mm: 22.00
Terminal 50: M5
Gear type: GR
Dist. 2: 127.00
Dist. 3: 127.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 345.00
Prod. info: BN
No./mounting holes: 3 (0)

Files

  • OEM
    A0051511001, a0051517001, a0061511601, a0061517101, A0071510601, F032114003, M009T70172, M009T70173, M009T72271, M009T72971, M105R2031SE, m9t70172, M9T70173, M9T72271, M9T72971, 00671140, 19011504, 0051517001, 0061511601, 0061517101, 0071510601

  • Normalised article numbler
    a0051511001, a0051517001, a0061511601, a0061517101, a0071510601, cst35344, cst60160, f032114003, lrs02620, m009t70172, m009t70173, m009t72271, m009t72971, m105r2031se, m9t70172, m9t70173, m9t72271, m9t72971, s1018, s5077, 6835n, 6910n, 6910r, 6919n, 254293, 254450, 255083, 00671140, 19011504, 0051517001, 0061511601, 0061517101, 0071510601, 325079122, 550563123, 550598123, 625038122
  • Description
    Voltage: 12
    kW: 5.0
    Mount. flange: 92.00
    Drive dist.: 47.50
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 296.00
    Dist./front: 56.00
    No./teeth: 12
    B+: M12
    Thread length mm: 22.00
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 127.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 345.00
    Prod. info: BN
    No./mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      A0051511001, a0051517001, a0061511601, a0061517101, A0071510601, F032114003, M009T70172, M009T70173, M009T72271, M009T72971, M105R2031SE, m9t70172, M9T70173, M9T72271, M9T72971, 00671140, 19011504, 0051517001, 0061511601, 0061517101, 0071510601

    • Normalised article numbler
      a0051511001, a0051517001, a0061511601, a0061517101, a0071510601, cst35344, cst60160, f032114003, lrs02620, m009t70172, m009t70173, m009t72271, m009t72971, m105r2031se, m9t70172, m9t70173, m9t72271, m9t72971, s1018, s5077, 6835n, 6910n, 6910r, 6919n, 254293, 254450, 255083, 00671140, 19011504, 0051517001, 0061511601, 0061517101, 0071510601, 325079122, 550563123, 550598123, 625038122
