HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114021

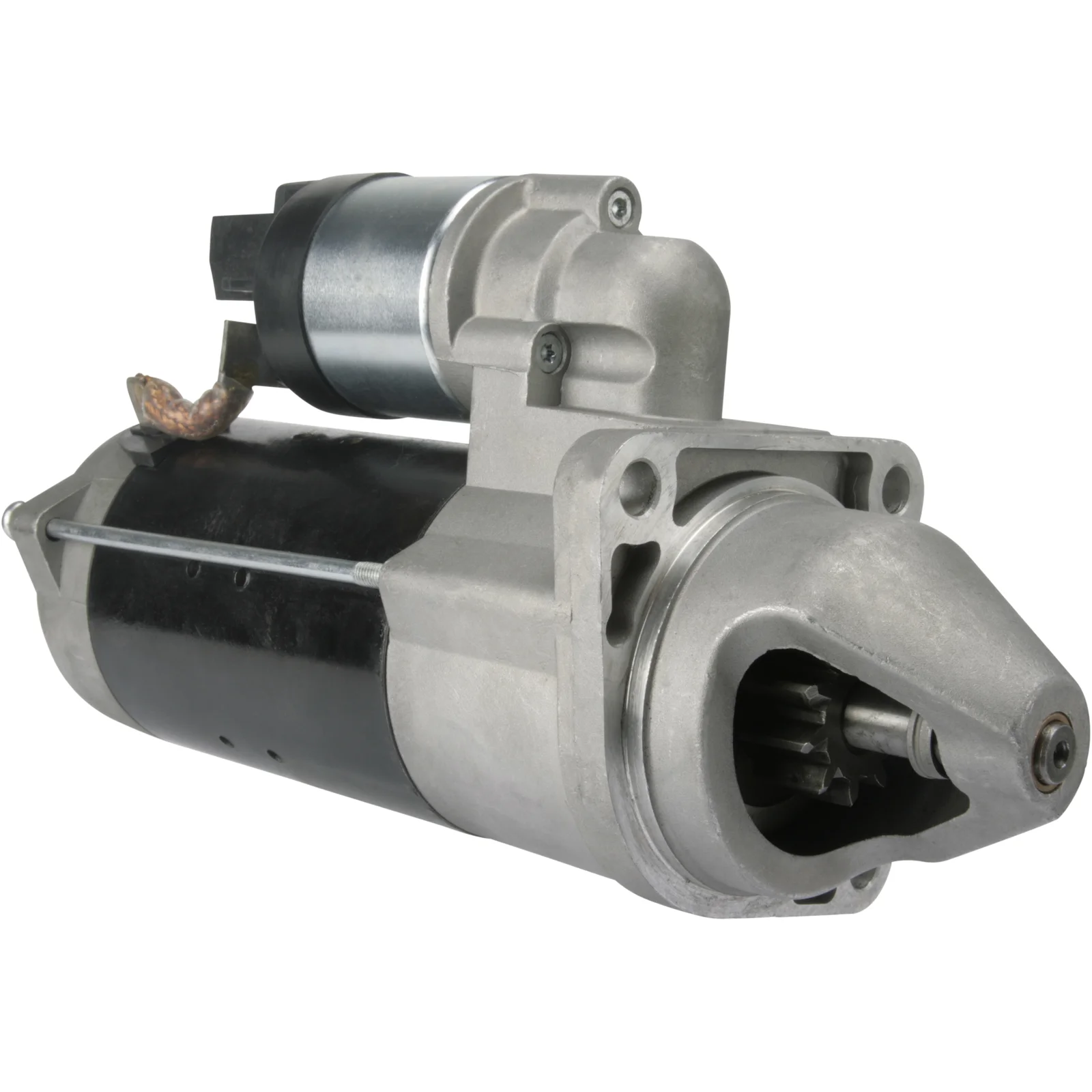

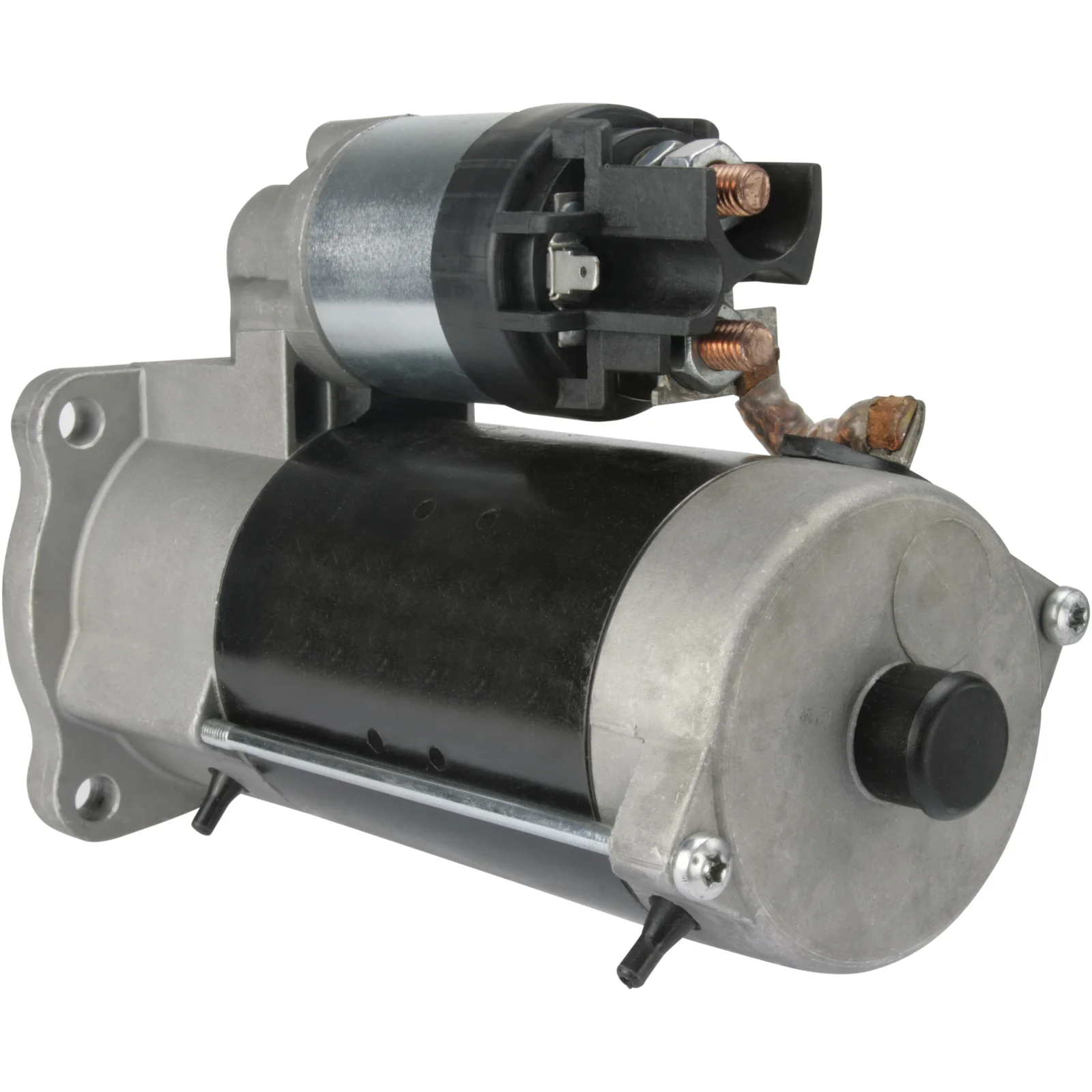

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mount. flange: 89.00
Drive distance: 27.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Distance / back: 228.50
Distance / front: 72.50
Number / teeth: 10
B+: M10
Position / 50: 45
Terminal 50: 6.30
Gear type: GR
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Total length mm: 314.00
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number / mount. holes: 3 (0)

Files

  • OEM
    AZF4591, F032114021, 1986S10036, 0001230020, 0001250001, 0001250002, 0001262019, 0001262020, 2852178, 2859527, 323019050, 504031929, 504357109, 5801577137

  • Normalised article numbler
    azf4591, cst10304, cst21145, drs0026, drs0026n, f032114021, lrs02407, lrs2407, s0256, s0301, s0786s, s0811s, str50290, 8ea015642631, 1986s10036, 8003, 18955, 18955n, 19861n, 203010, 220752, 220752a, 254079, 254129, 438595, 460266, 0001230020, 0001250001, 0001250002, 0001262019, 0001262020, 2852178, 2859527, 11090205, 323019050, 500546103, 504031929, 504357109, 618036102, 0986026900, 5801577137
  • Description
    Voltage: 12
    kW: 3.0
    Mount. flange: 89.00
    Drive distance: 27.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Distance / back: 228.50
    Distance / front: 72.50
    Number / teeth: 10
    B+: M10
    Position / 50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 314.00
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number / mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4591, F032114021, 1986S10036, 0001230020, 0001250001, 0001250002, 0001262019, 0001262020, 2852178, 2859527, 323019050, 504031929, 504357109, 5801577137

    • Normalised article numbler
      azf4591, cst10304, cst21145, drs0026, drs0026n, f032114021, lrs02407, lrs2407, s0256, s0301, s0786s, s0811s, str50290, 8ea015642631, 1986s10036, 8003, 18955, 18955n, 19861n, 203010, 220752, 220752a, 254079, 254129, 438595, 460266, 0001230020, 0001250001, 0001250002, 0001262019, 0001262020, 2852178, 2859527, 11090205, 323019050, 500546103, 504031929, 504357109, 618036102, 0986026900, 5801577137
