HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114052

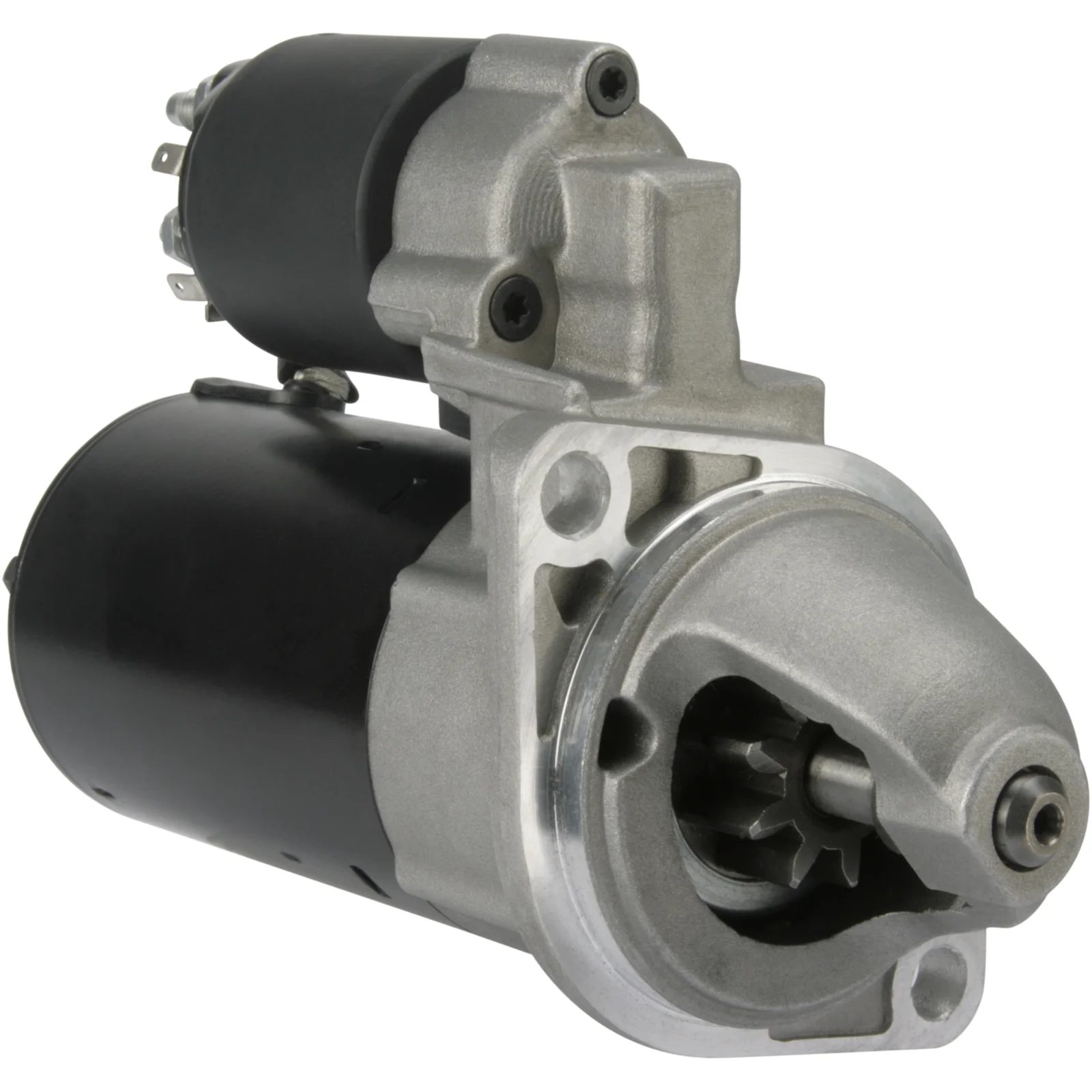

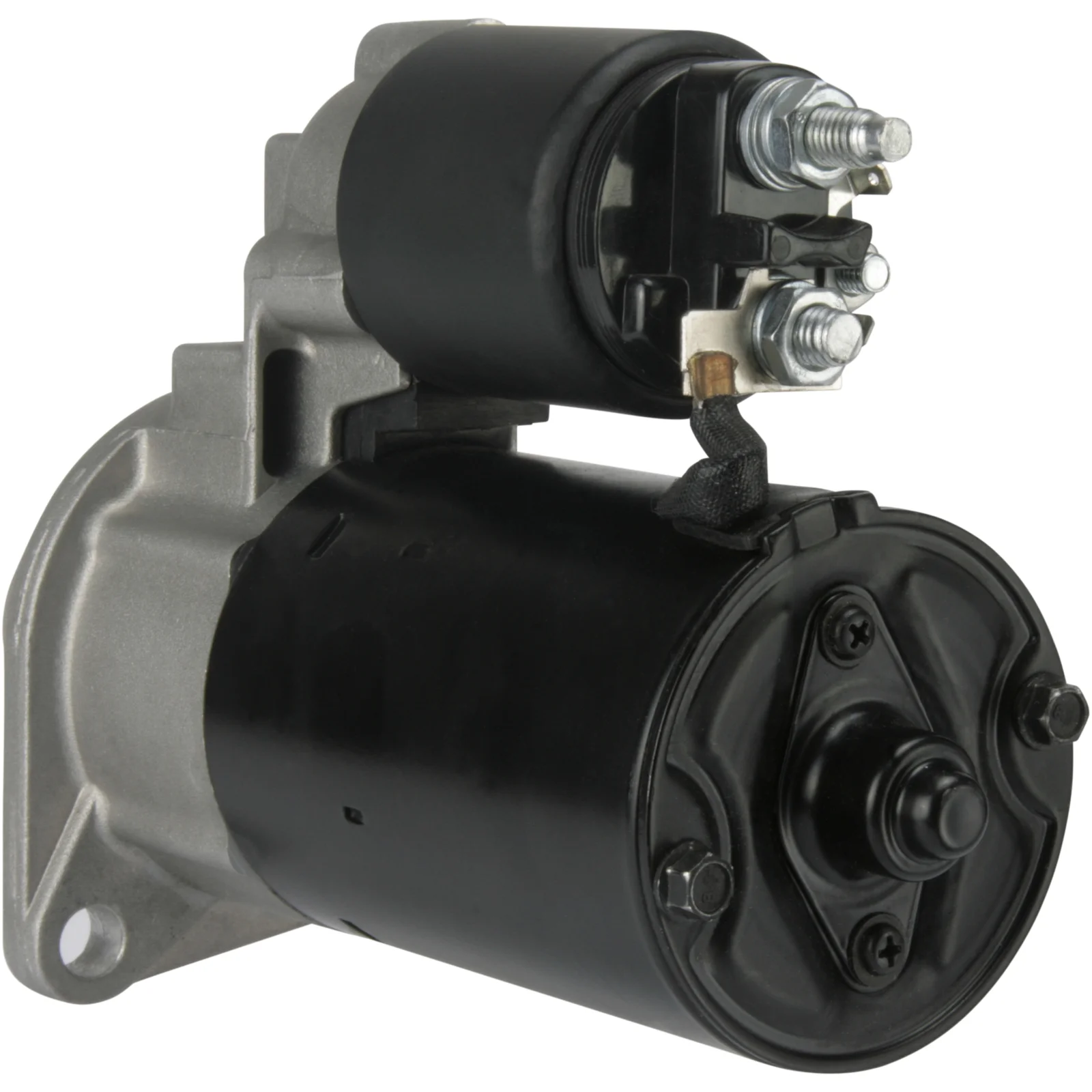

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mounting flange: 76.00
Drive distance: 18.00
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance / back: 150.00
Distance / front: 57.50
Number / teeth: 9
B+: M8
Position / 15a: 20
Terminal 15a: M6
Gear type: DD
Distance mm: 105.00
Rotation: CW
Total length mm: 219.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032114052, 1986S00665, 0001107083, 0001107400, 0001107420, 0001107430, 5840199, 5840209, 58401990, 0058402090, 58402090

  • Normalised article numbler
    cst10258, drt2490, drt2490n, f032114052, lrs02302, ms59, s0232, 1986s00665, 33302n, 33302r, 220812, 220812a, 253474, 254169, 0001107083, 0001107400, 0001107420, 0001107430, 5840199, 5840209, 8022490, 11022490, 58401990, 0058402090, 58402090, 0986022490, 063521074300
  • Description
    Voltage: 12
    kW: 1.1
    Mounting flange: 76.00
    Drive distance: 18.00
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance / back: 150.00
    Distance / front: 57.50
    Number / teeth: 9
    B+: M8
    Position / 15a: 20
    Terminal 15a: M6
    Gear type: DD
    Distance mm: 105.00
    Rotation: CW
    Total length mm: 219.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114052, 1986S00665, 0001107083, 0001107400, 0001107420, 0001107430, 5840199, 5840209, 58401990, 0058402090, 58402090

    • Normalised article numbler
      cst10258, drt2490, drt2490n, f032114052, lrs02302, ms59, s0232, 1986s00665, 33302n, 33302r, 220812, 220812a, 253474, 254169, 0001107083, 0001107400, 0001107420, 0001107430, 5840199, 5840209, 8022490, 11022490, 58401990, 0058402090, 58402090, 0986022490, 063521074300
