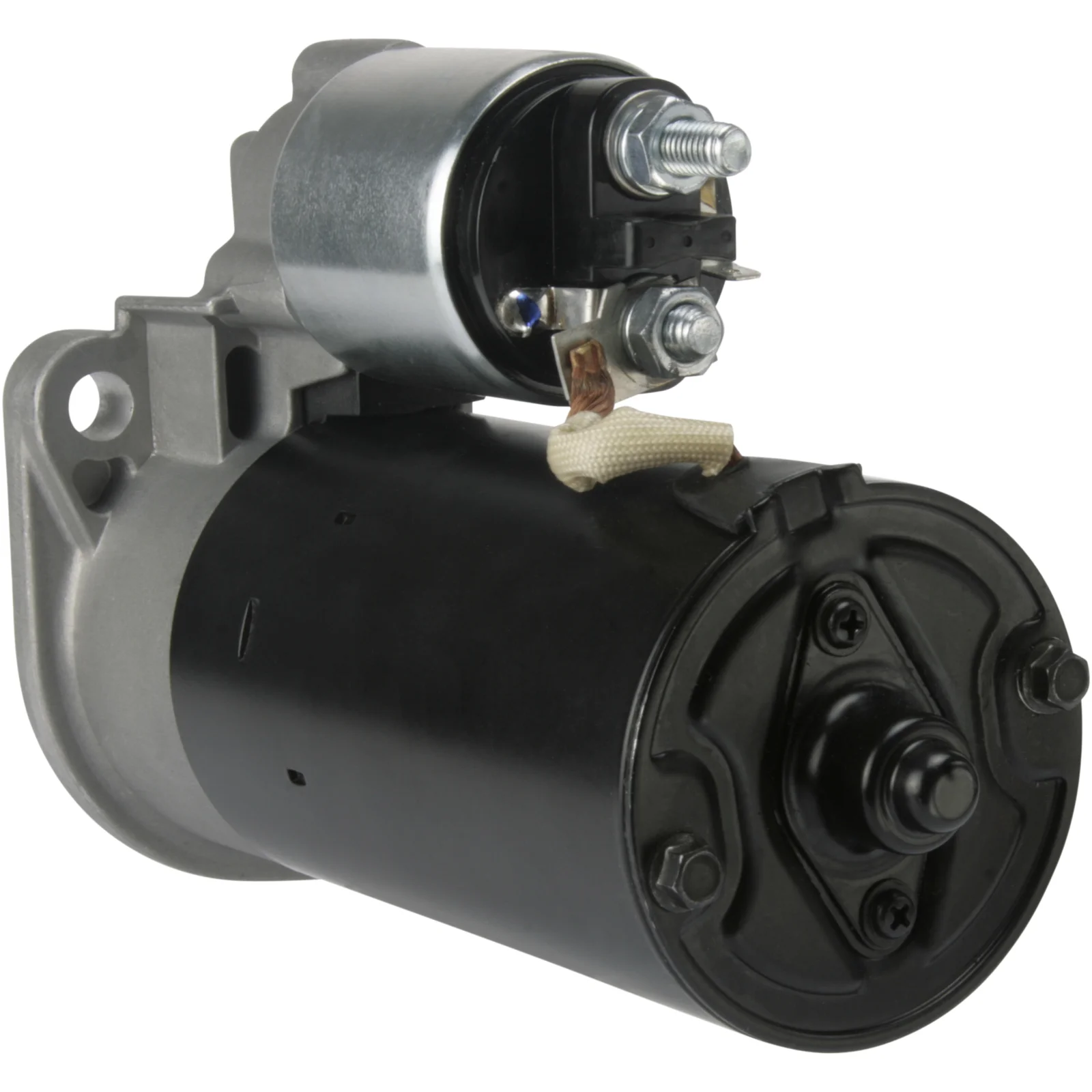

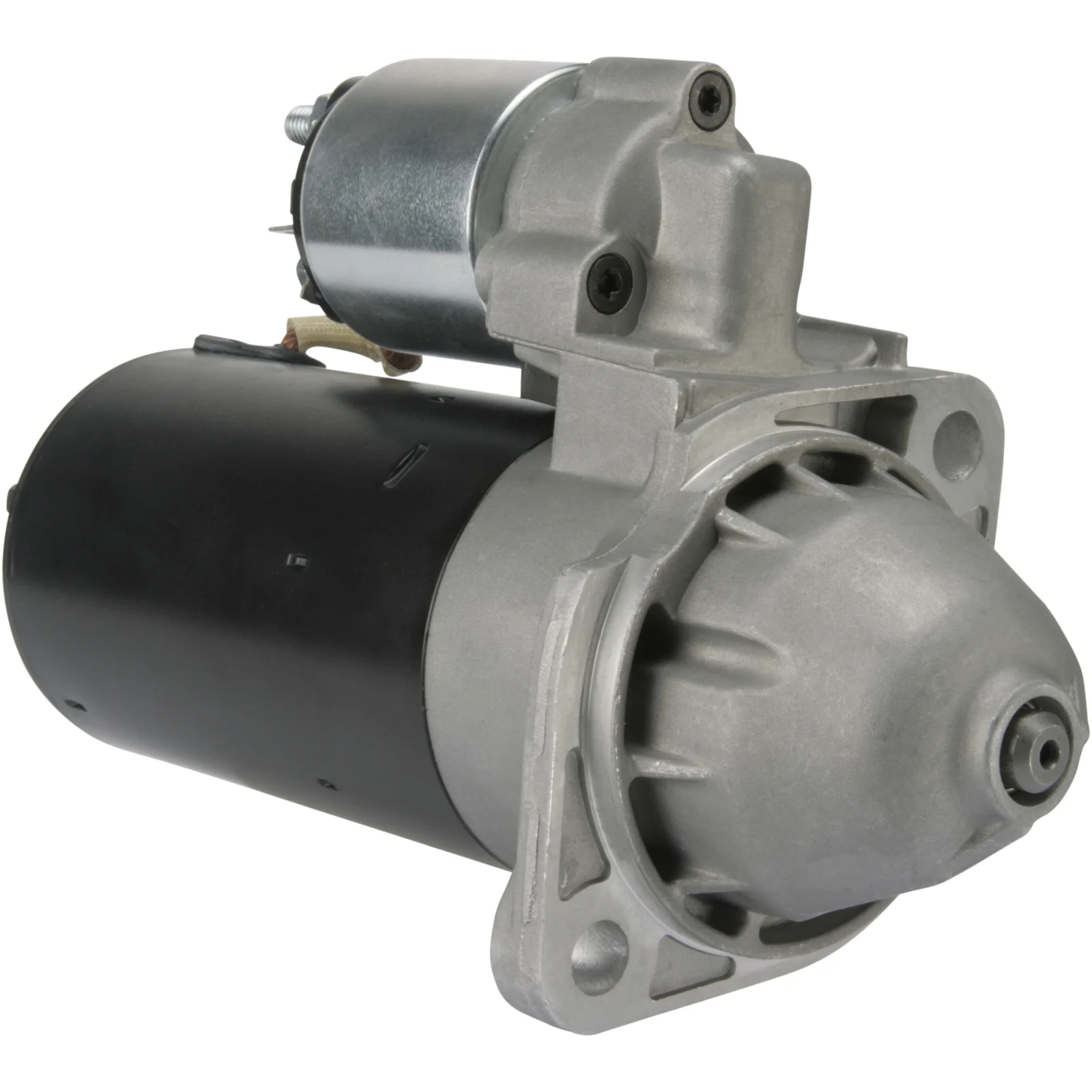

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114053

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mount. flange: 82.50
Drive dist.: 16.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 173.00
Dist./front: 55.00
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: 6.30
Gear type: Gear
Dist. millimeters: 105.00
Rotation: Clockwise
Total length millimeters: 240.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Files

  • OEM
    ED0058102810, F032114053, 333H5787, 1986S00718, 0001109019, 0001109031, 0001109419, 0001109420, 0001218161, 5840191, 58401910, 0058402810, 58402810

  • Normalised article numbler
    cst10168, drs0013, ed0058102810, f032114053, lrs01975, ms732, s0156, 8ea015642101, 333h5787, 1986s00718, 19785n, 220889, 220889a, 253334, 254020, 0001109019, 0001109031, 0001109419, 0001109420, 0001218161, 5840191, 11090003, 58401910, 0058402810, 58402810, 690548092, 0986024090
  • Description
    Voltage: 12
    kW: 2.0
    Mount. flange: 82.50
    Drive dist.: 16.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 173.00
    Dist./front: 55.00
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: 6.30
    Gear type: Gear
    Dist. millimeters: 105.00
    Rotation: Clockwise
    Total length millimeters: 240.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      ED0058102810, F032114053, 333H5787, 1986S00718, 0001109019, 0001109031, 0001109419, 0001109420, 0001218161, 5840191, 58401910, 0058402810, 58402810

    • Normalised article numbler
      cst10168, drs0013, ed0058102810, f032114053, lrs01975, ms732, s0156, 8ea015642101, 333h5787, 1986s00718, 19785n, 220889, 220889a, 253334, 254020, 0001109019, 0001109031, 0001109419, 0001109420, 0001218161, 5840191, 11090003, 58401910, 0058402810, 58402810, 690548092, 0986024090
