HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114055

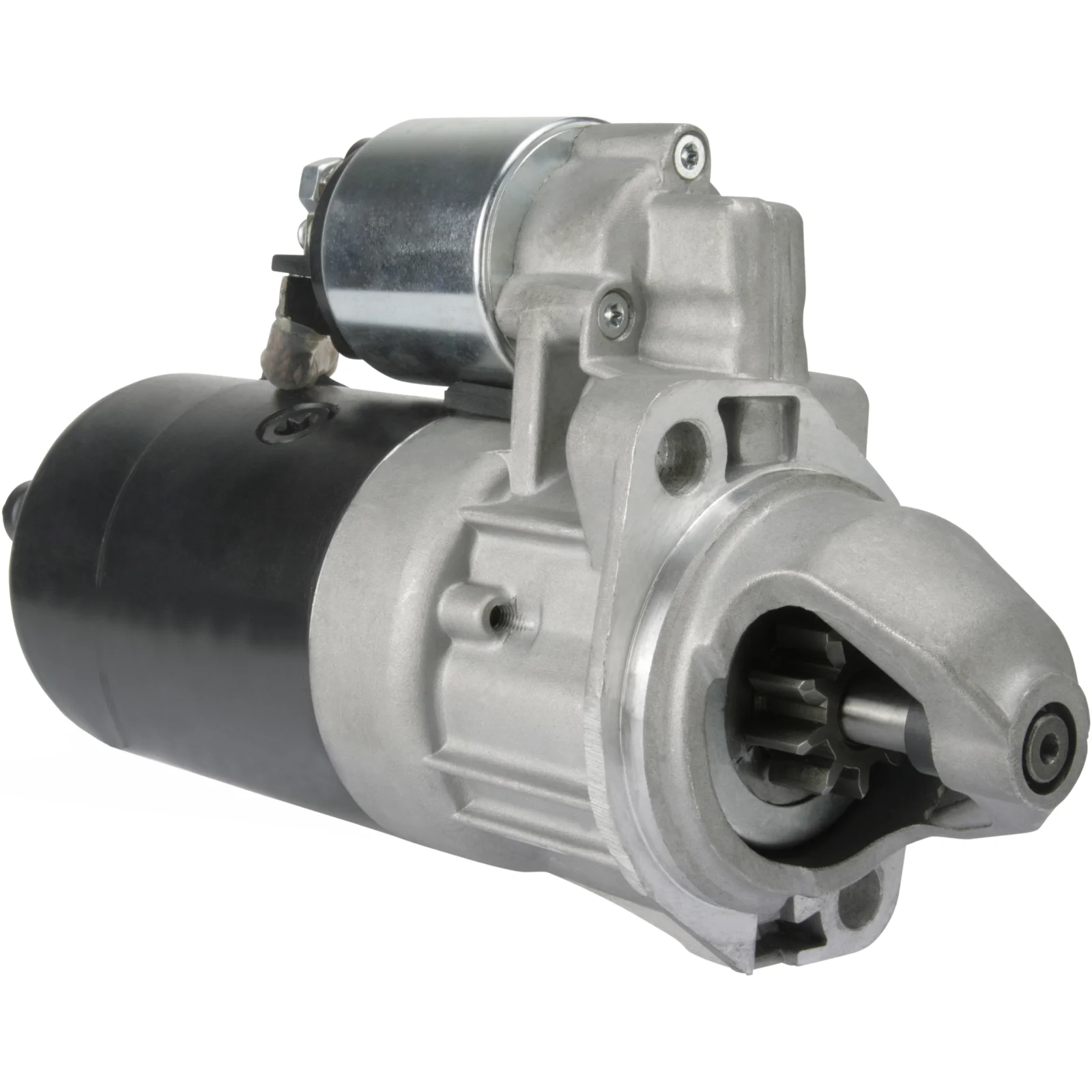

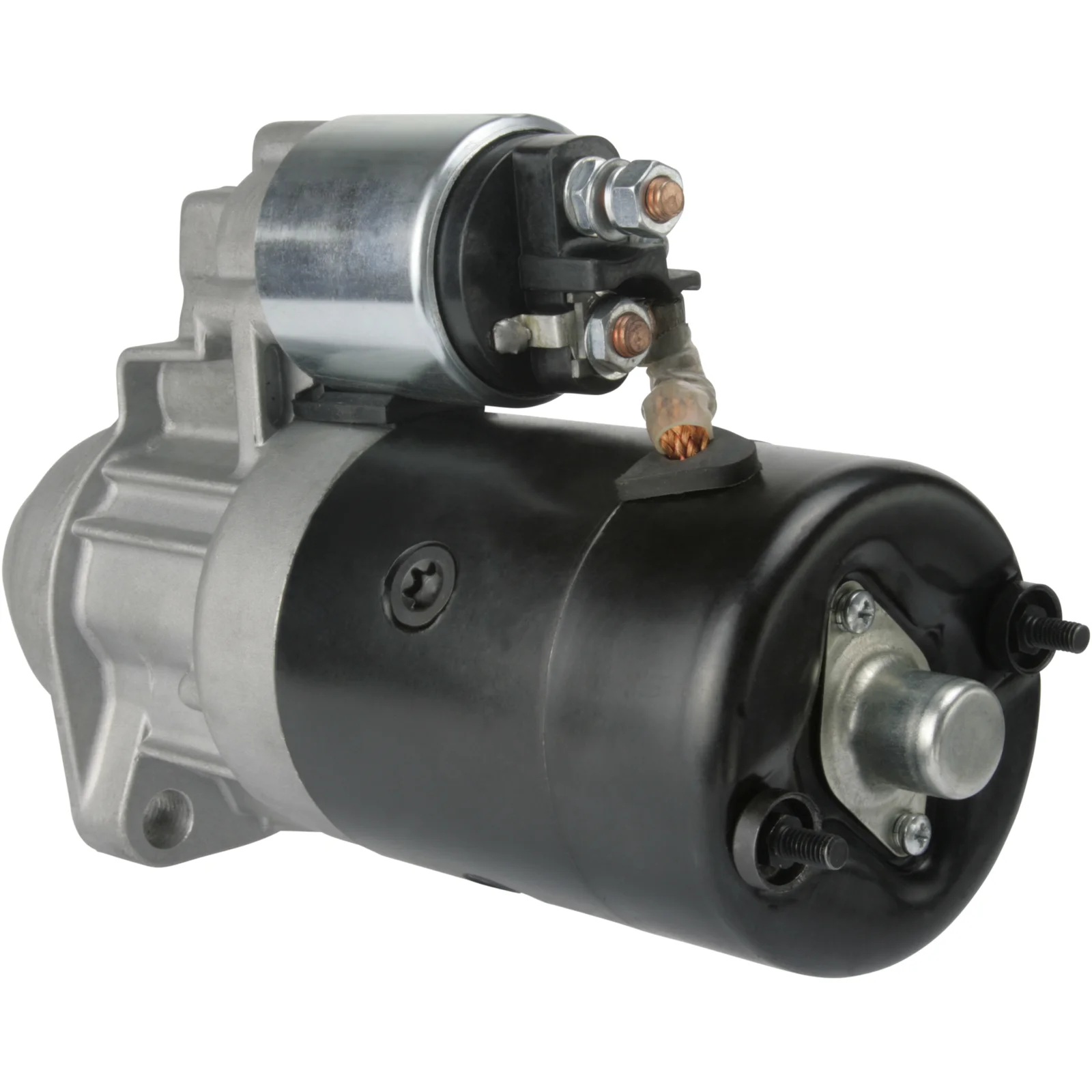

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.3, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.3
Mounting flange: 82.50
Drive distance: 21.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 212.00
Distance / front: 61.00
Number / teeth: 9
B+: M8
Thread length mm: 11.00
Position / 50: 15
Terminal 50: M4
Gear type: GR
Distance mm: 105.00
Rotation: CW
Total length mm: 273.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032114055, FGV35532054, 3.553.2054F, 1986S00740, 0001109358, 0001218176, 0001218776, 035532043F, 35532043F, 9000331418

  • Normalised article numbler
    cst10169, drs0786, f032114055, fgv35532054, lrs02556, s0424, str50063, 8ea015642411, 1986s00740, 8010, 18952n, 220931, 220931a, 254165, 0001109358, 0001218176, 0001218776, 11090209, 035532043f, 35532043f, 35532054f, 9000331418, 063522187760
  • Description
    Voltage: 12
    kW: 2.3
    Mounting flange: 82.50
    Drive distance: 21.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 212.00
    Distance / front: 61.00
    Number / teeth: 9
    B+: M8
    Thread length mm: 11.00
    Position / 50: 15
    Terminal 50: M4
    Gear type: GR
    Distance mm: 105.00
    Rotation: CW
    Total length mm: 273.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114055, FGV35532054, 3.553.2054F, 1986S00740, 0001109358, 0001218176, 0001218776, 035532043F, 35532043F, 9000331418

    • Normalised article numbler
      cst10169, drs0786, f032114055, fgv35532054, lrs02556, s0424, str50063, 8ea015642411, 1986s00740, 8010, 18952n, 220931, 220931a, 254165, 0001109358, 0001218176, 0001218776, 11090209, 035532043f, 35532043f, 35532054f, 9000331418, 063522187760
