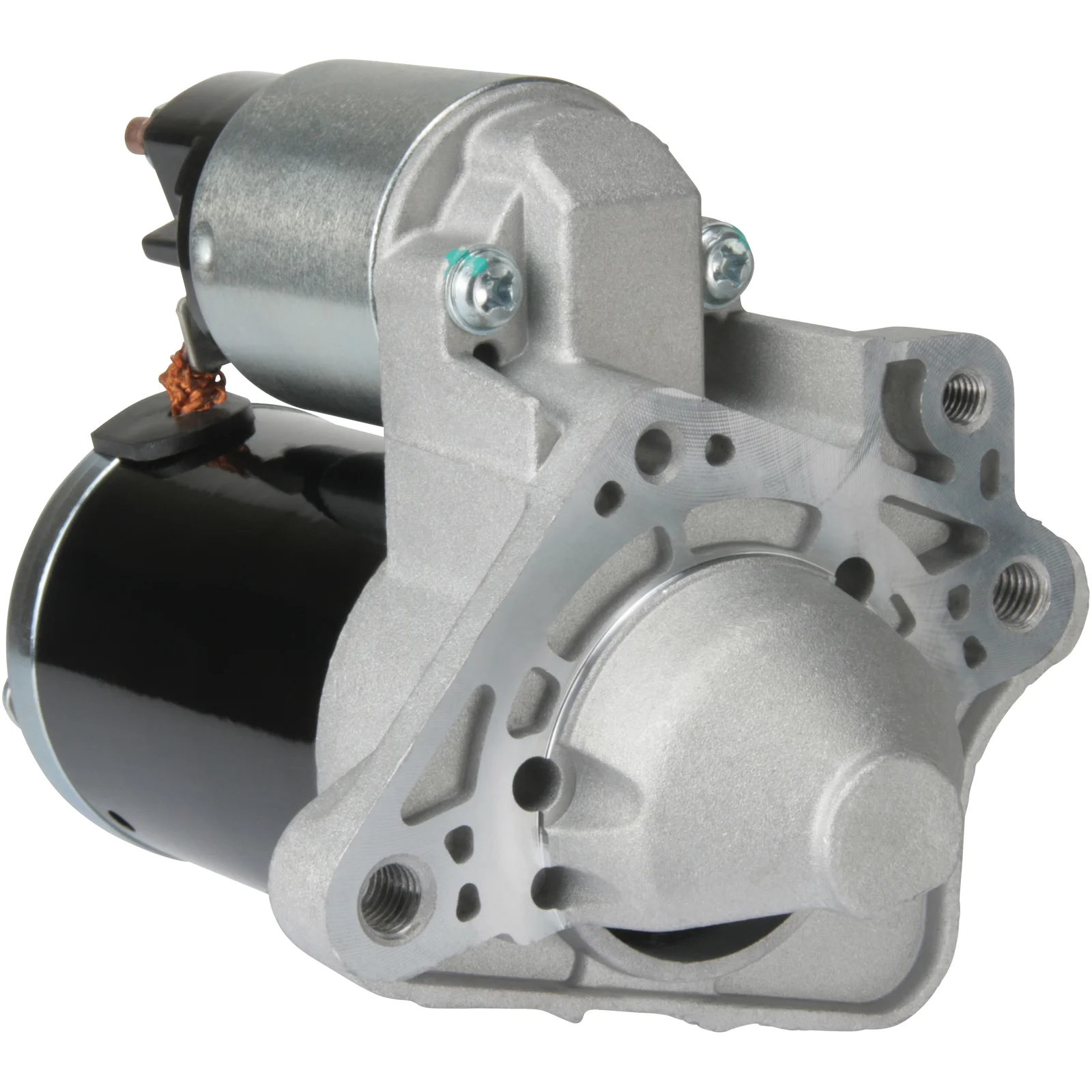

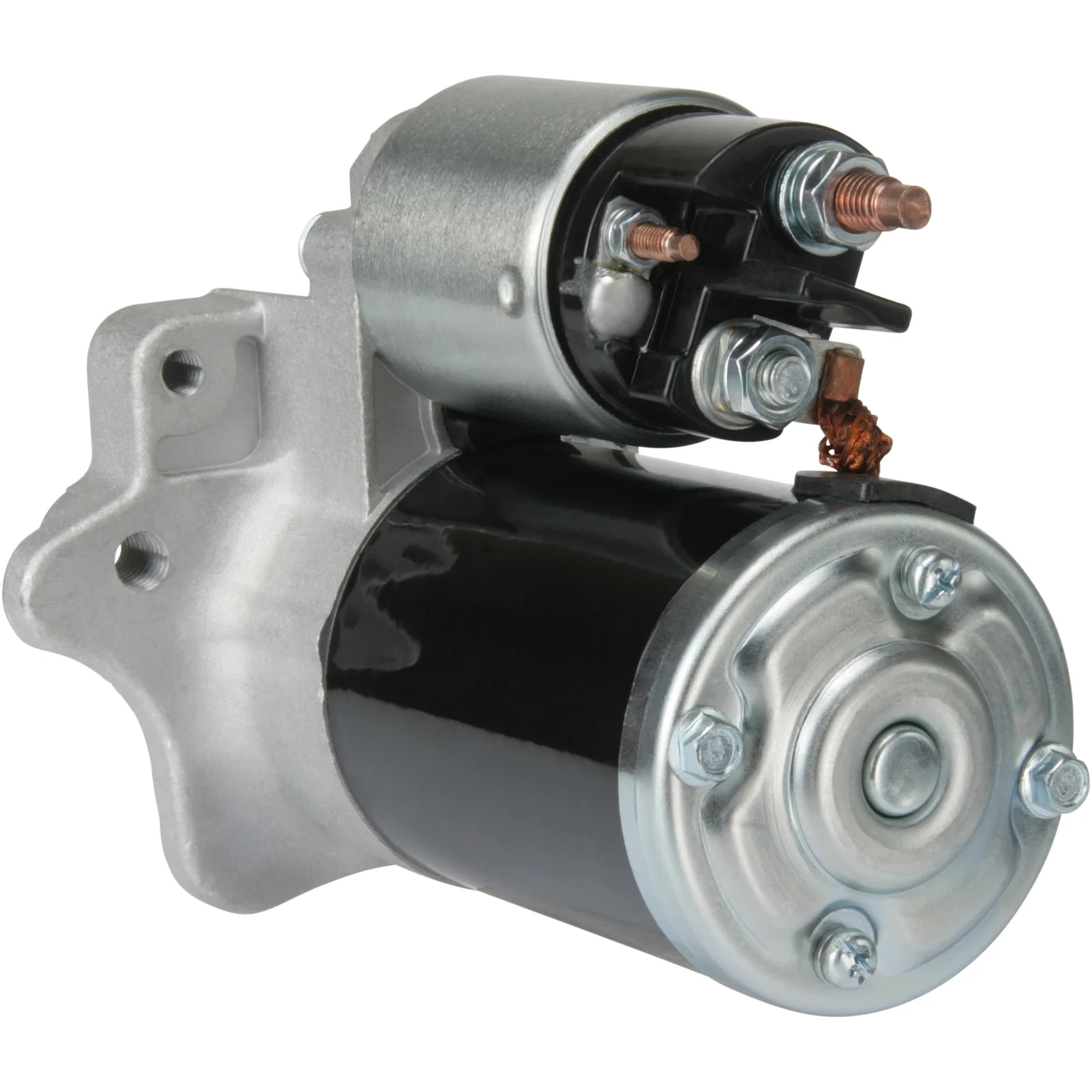

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114057

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 8, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mount. flange: 62.00
Drive dist.: 1.00
Mount. hole 3 mm: M10
Dist./back: 142.50
Dist./front: 34.00
No./teeth: 8
B+: M8
Terminal 50: M5
Gear type: DD
Dist. 2: 105.50
Dist. 3: 106.50
Dist. mm: 28.50
Rotation: CW
Total length mm: 177.00
Prod. info: BN
No./mount. holes: 3 (3)

Files

  • OEM
    cs1425, F032114057, M000T45371ZT, M0T45371, M0T45371ZT, 7711368060, 8200298371, 8200584837

  • Normalised article numbler
    cs1425, cst35174, drs0186, f032114057, lrs02353, m000t45371zt, m0t45371, m0t45371zt, mitm0t45371, s5151, 8ea011612371, 8ea738259071, 3080, 33353n, 101425, 106370, 220762, 220762a, 254025, 438434, 438509, 458834, 8080399, 11090128, 42025770, 330055082, 0986025770, 7711368060, 8200298371, 8200584837
  • Description
    Voltage: 12
    kW: 1.1
    Mount. flange: 62.00
    Drive dist.: 1.00
    Mount. hole 3 mm: M10
    Dist./back: 142.50
    Dist./front: 34.00
    No./teeth: 8
    B+: M8
    Terminal 50: M5
    Gear type: DD
    Dist. 2: 105.50
    Dist. 3: 106.50
    Dist. mm: 28.50
    Rotation: CW
    Total length mm: 177.00
    Prod. info: BN
    No./mount. holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      cs1425, F032114057, M000T45371ZT, M0T45371, M0T45371ZT, 7711368060, 8200298371, 8200584837

    • Normalised article numbler
      cs1425, cst35174, drs0186, f032114057, lrs02353, m000t45371zt, m0t45371, m0t45371zt, mitm0t45371, s5151, 8ea011612371, 8ea738259071, 3080, 33353n, 101425, 106370, 220762, 220762a, 254025, 438434, 438509, 458834, 8080399, 11090128, 42025770, 330055082, 0986025770, 7711368060, 8200298371, 8200584837
