HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114061

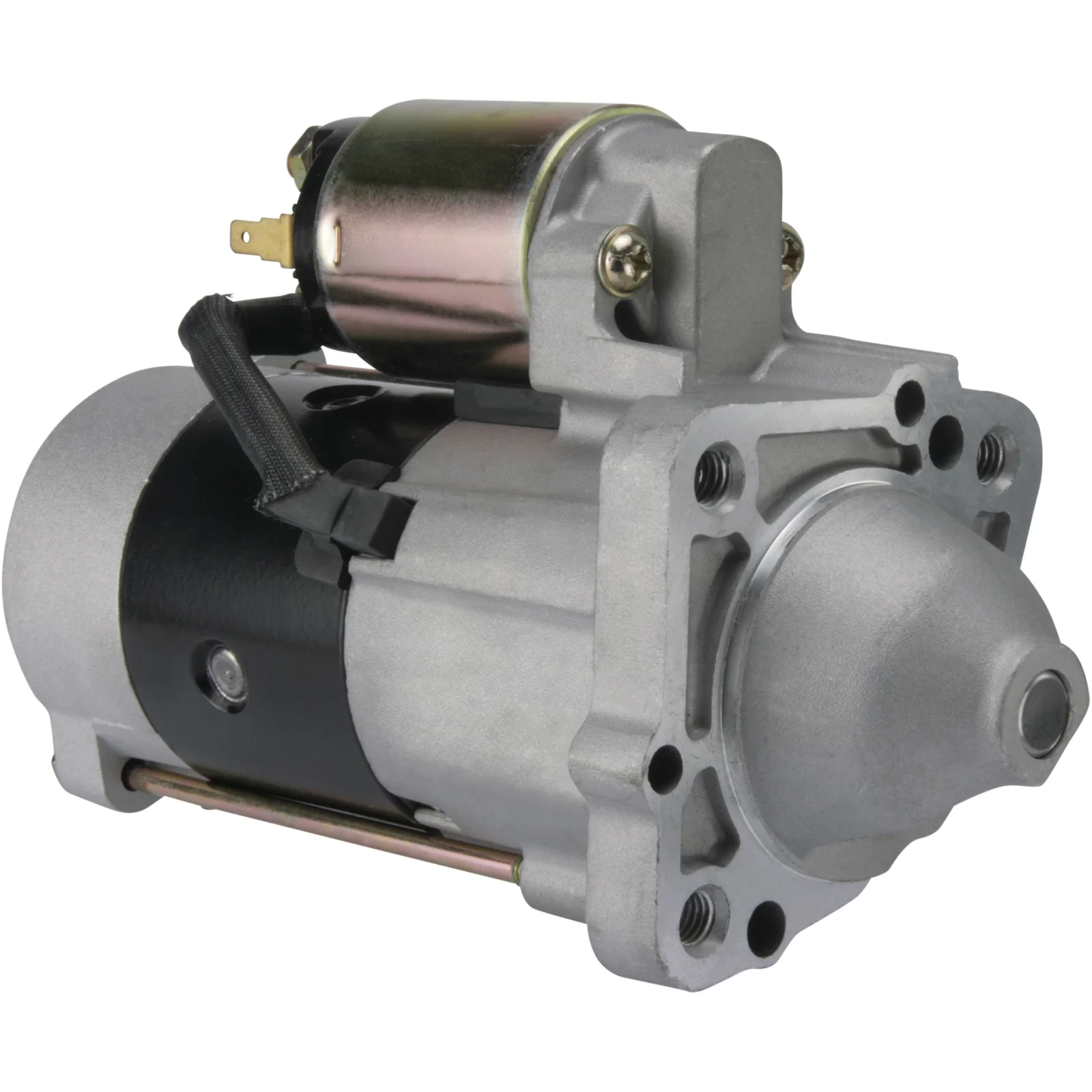

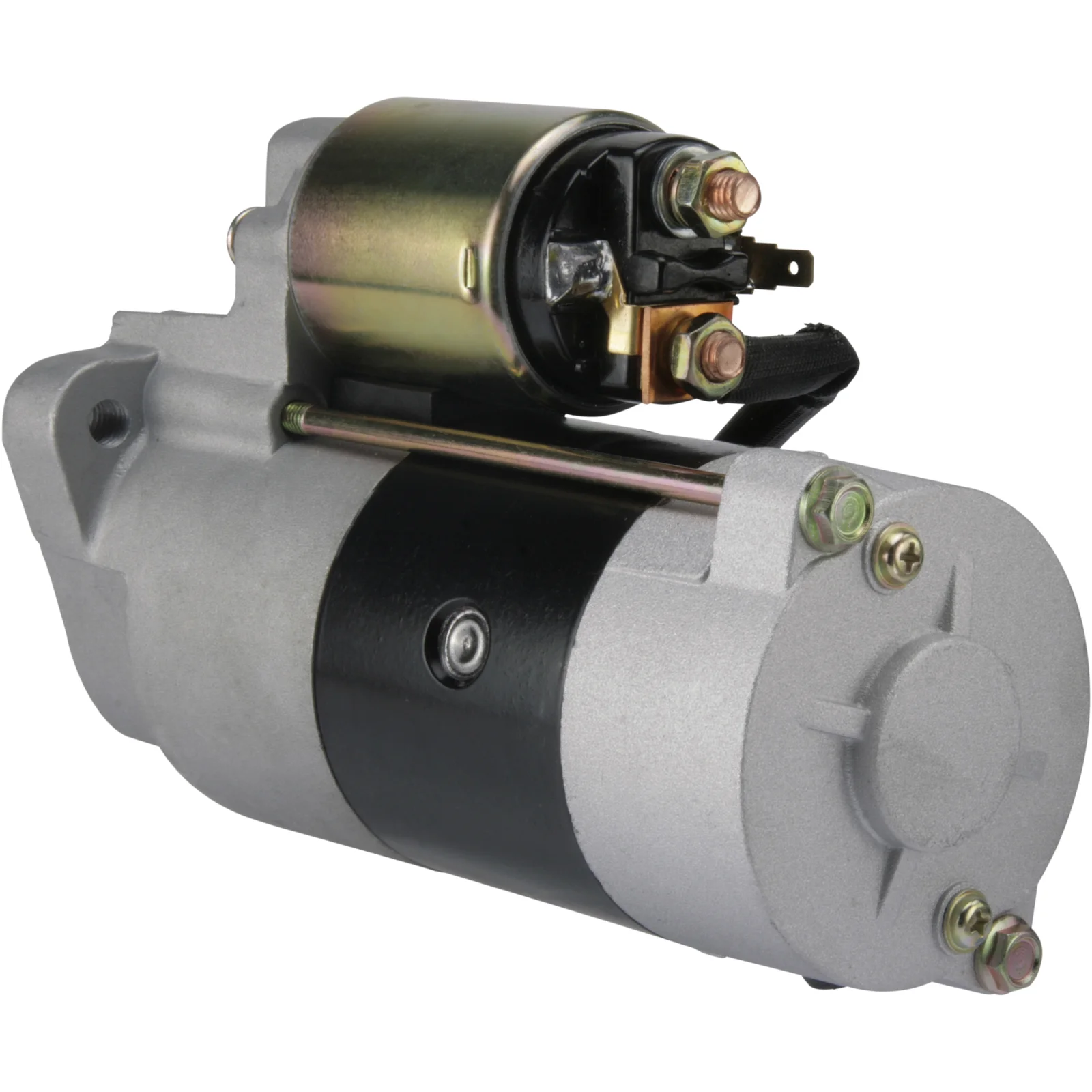

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 66.00
Drive distance: 3.00
Mounting hole 3 mm: M10
Distance / back: 187.00
Distance / front: 39.00
Number / teeth: 10
B+: M8
Position / 50: 15
Terminal 50: 6.30
Gear type: GR
Distance 2: 71.00
Distance 3: 71.00
Distance mm: 100.00
Rotation: CW
Total length mm: 227.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    cs1444, F032114061, M002T85271, m2t85271, 1986S00935, 31100-68d00

  • Normalised article numbler
    cs1444, cst35191, drs3984, f032114061, f042s0h085, j5218018, lrs01716, m002t85271, m2t85271, s5050, strh085, 8ea738258911, 1986s00935, 9765, 31333n, 101444, 106649, 253271, 458901, 3110068d00, 8080295, 11040729, 345019102, 0986029090
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 66.00
    Drive distance: 3.00
    Mounting hole 3 mm: M10
    Distance / back: 187.00
    Distance / front: 39.00
    Number / teeth: 10
    B+: M8
    Position / 50: 15
    Terminal 50: 6.30
    Gear type: GR
    Distance 2: 71.00
    Distance 3: 71.00
    Distance mm: 100.00
    Rotation: CW
    Total length mm: 227.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1444, F032114061, M002T85271, m2t85271, 1986S00935, 31100-68d00

    • Normalised article numbler
      cs1444, cst35191, drs3984, f032114061, f042s0h085, j5218018, lrs01716, m002t85271, m2t85271, s5050, strh085, 8ea738258911, 1986s00935, 9765, 31333n, 101444, 106649, 253271, 458901, 3110068d00, 8080295, 11040729, 345019102, 0986029090
