HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114068

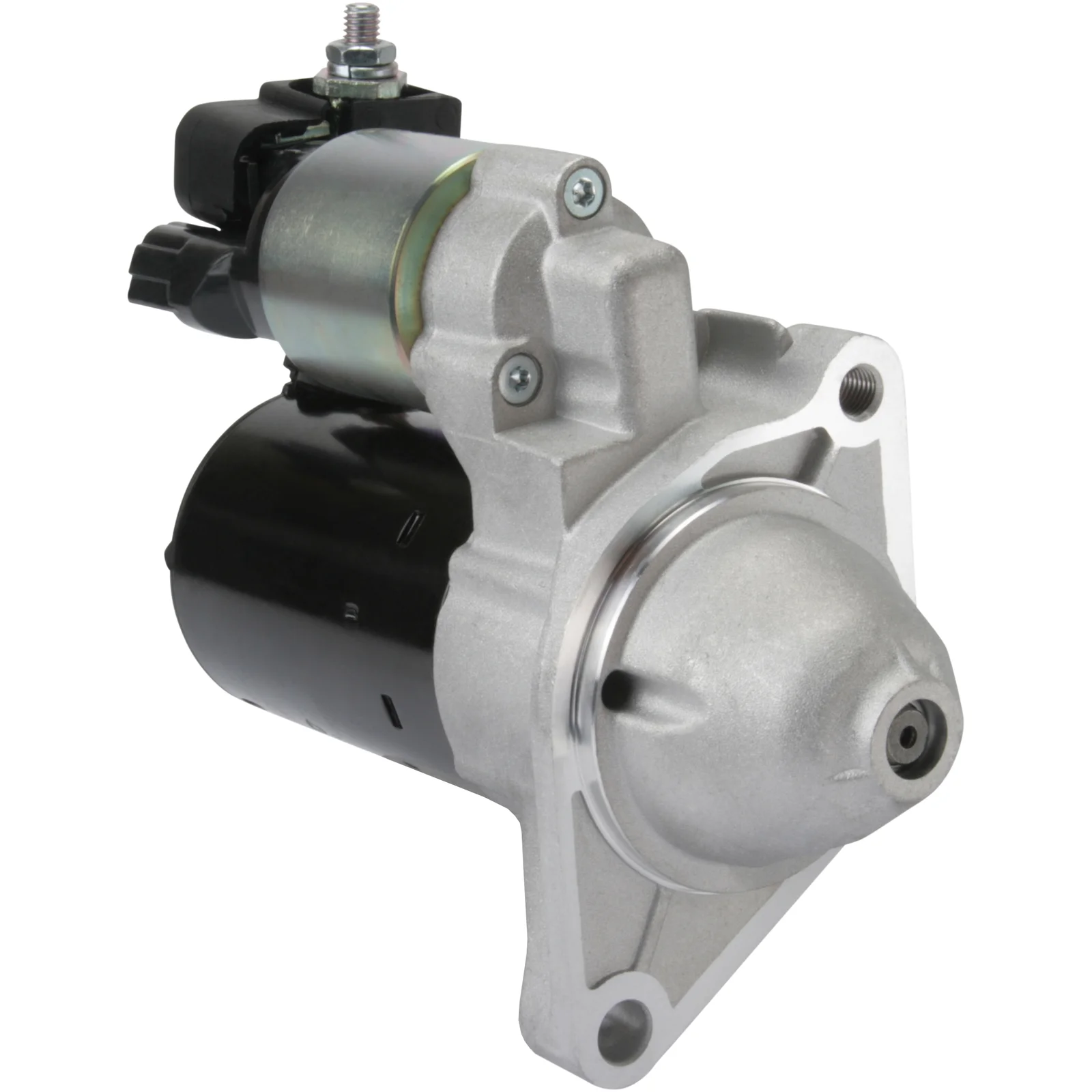

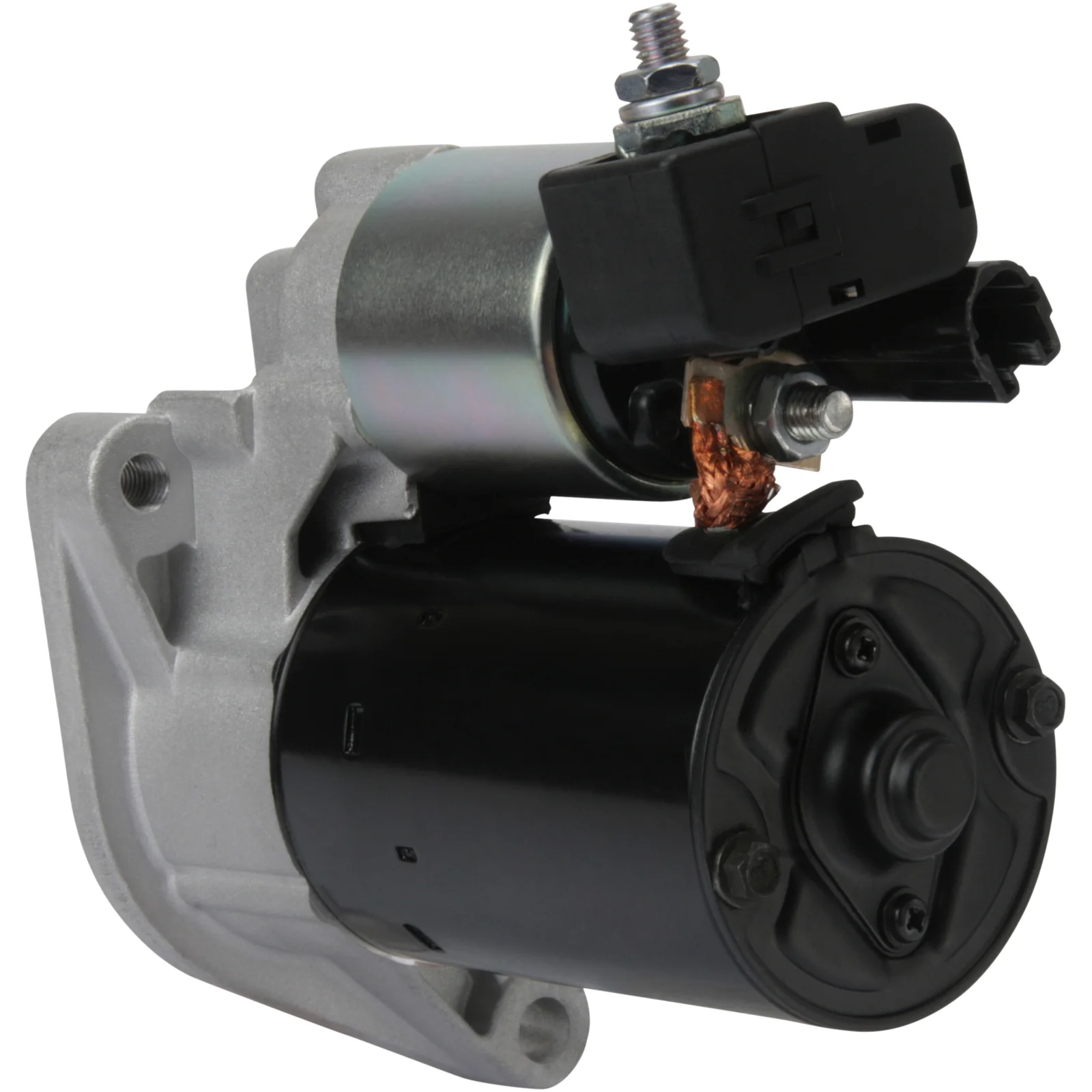

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mount. flange: 74.00
Drive dist.: 15.00
Mount. hole 2 mm: 11.00
Dist./back: 143.00
Dist./front: 48.50
No./teeth: 9
B+: M8
Terminal 50: Plug
Gear type: Gavel
Dist. mm: 122.50
Rotation: CW
Total length mm: 199.00
Prod. info: BN
Info: 1.1 kw version = HC-CARGO 114071.
No./mount. holes: 2 (1)

Files

  • OEM
    cs1453, F032114068, 1986S00673, 28100-0N010, 0001107440, 0001107441

  • Normalised article numbler
    cs1453, cst10383, drt1560, f032114068, lrs02333, s0494, 8ea011611321, 8ea738258901, 1986s00673, 9756, 33320n, 101453, 106376, 220659, 220659a, 254005, 281000n010, 458824, 0001107440, 0001107441, 11040681, 335222092, 0986021560
  • Description
    Voltage: 12
    kW: 1.1
    Mount. flange: 74.00
    Drive dist.: 15.00
    Mount. hole 2 mm: 11.00
    Dist./back: 143.00
    Dist./front: 48.50
    No./teeth: 9
    B+: M8
    Terminal 50: Plug
    Gear type: Gavel
    Dist. mm: 122.50
    Rotation: CW
    Total length mm: 199.00
    Prod. info: BN
    Info: 1.1 kw version = HC-CARGO 114071.
    No./mount. holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      cs1453, F032114068, 1986S00673, 28100-0N010, 0001107440, 0001107441

    • Normalised article numbler
      cs1453, cst10383, drt1560, f032114068, lrs02333, s0494, 8ea011611321, 8ea738258901, 1986s00673, 9756, 33320n, 101453, 106376, 220659, 220659a, 254005, 281000n010, 458824, 0001107440, 0001107441, 11040681, 335222092, 0986021560
