HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114095

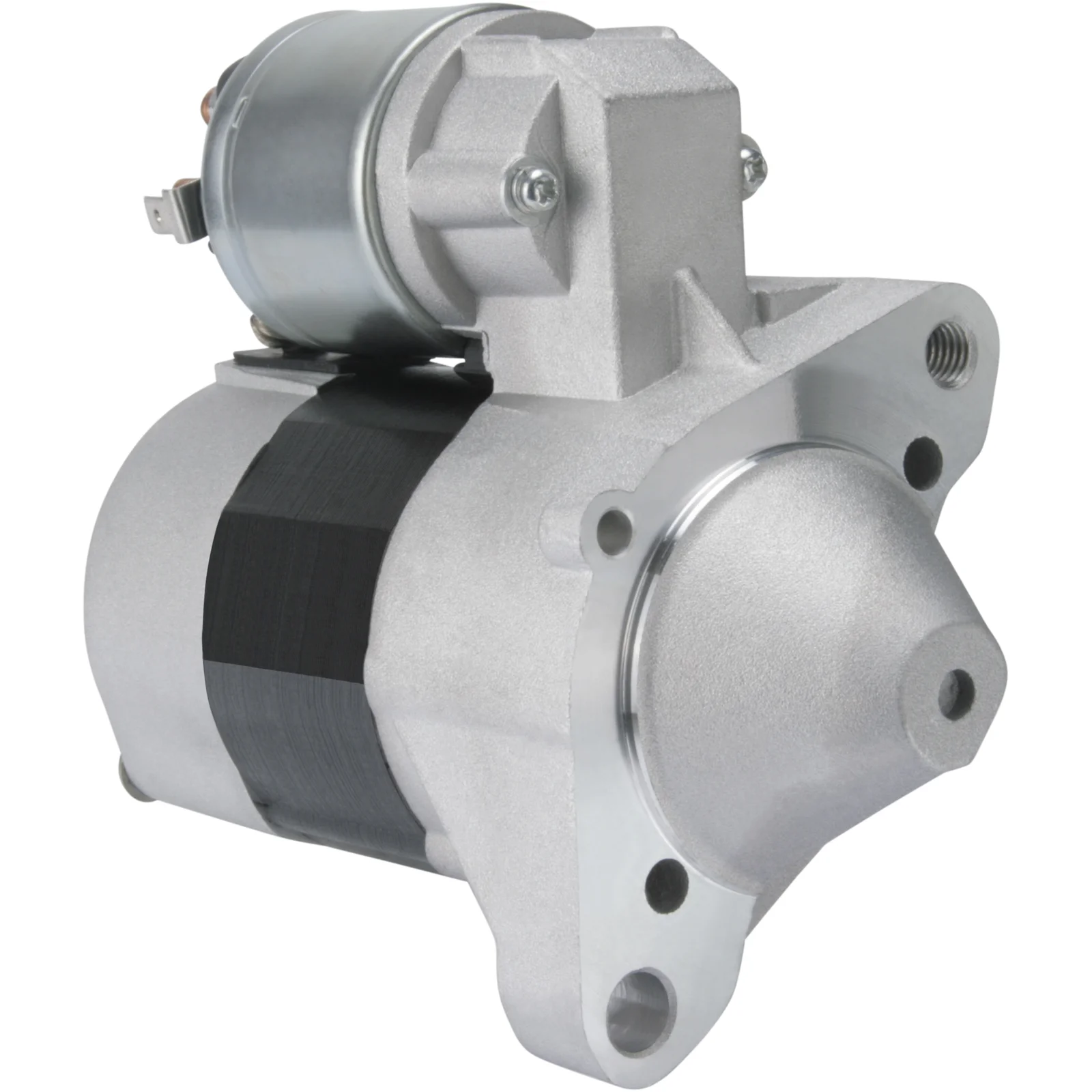

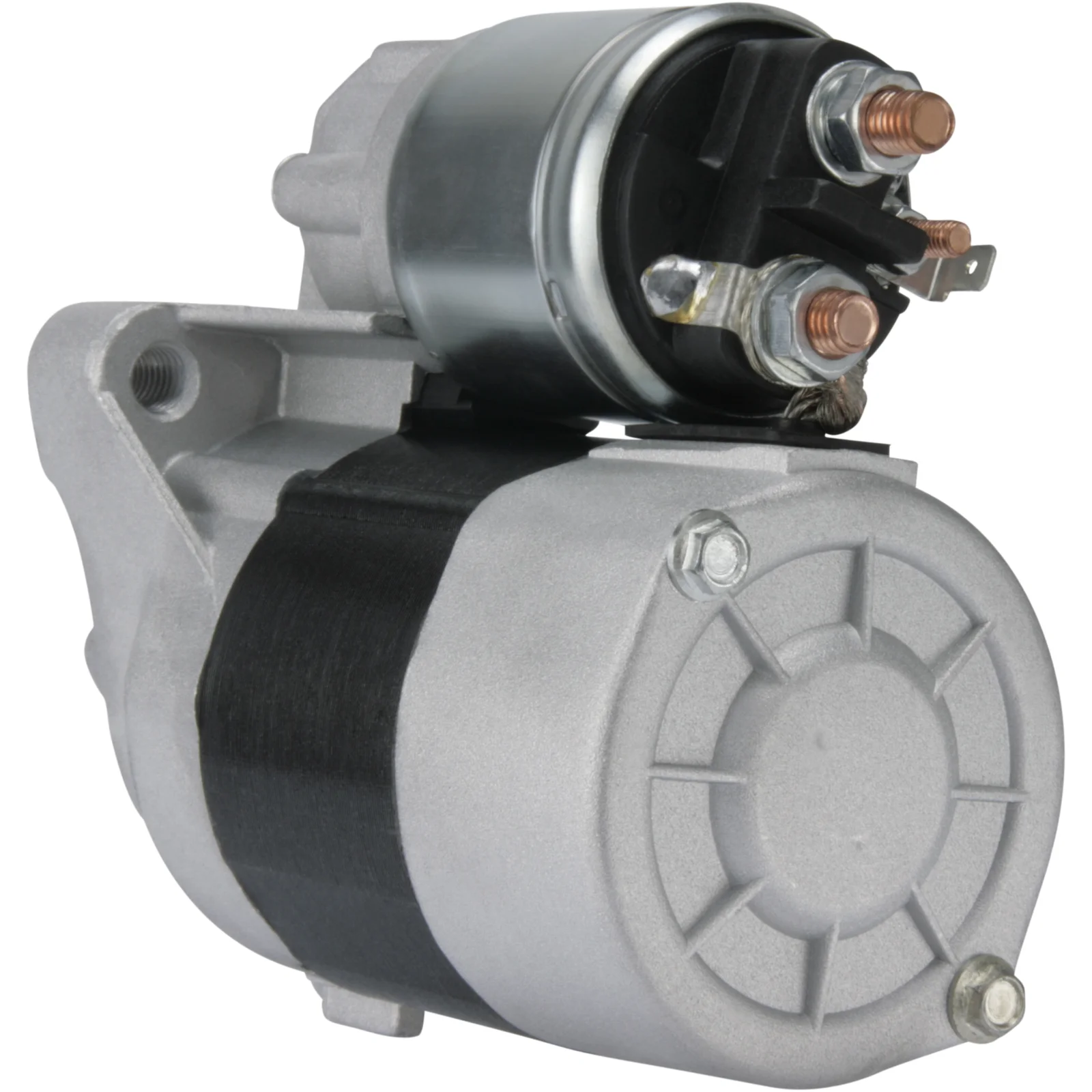

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.85, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.85
Mounting flange: 62.50
Drive distance: -1.00
Mounting hole 2 mm: 11.00
Distance/back: 139.00
Distance/front: 31.00
Number/teeth: 9
B+: M8
Position/50: 25
Terminal 50: 6.30
Gear type: DD
Distance mm: 105.50
Rotation: CW
Total length mm: 170.00
Clutch type: Dry
Drive type: Steel
Number/mounting holes: 2 (1)

Files

  • OEM
    cs1385, D7E39, F032114095, TS8E6, 1986S01030, 23300-00QAY, 7701499651, 8200369521

  • Normalised article numbler
    cs1385, d7e39, f032114095, ts8e6, 8ea012526611, 8ea738258211, 1986s01030, 31143r, 101385, 103646, 220358, 220358a, 432685, 455722, 726803, 838008, 2330000qay, 8212973, 42017840, 0986024190, 7701499651, 8200369521
  • Description
    Voltage: 12
    kW: 0.85
    Mounting flange: 62.50
    Drive distance: -1.00
    Mounting hole 2 mm: 11.00
    Distance/back: 139.00
    Distance/front: 31.00
    Number/teeth: 9
    B+: M8
    Position/50: 25
    Terminal 50: 6.30
    Gear type: DD
    Distance mm: 105.50
    Rotation: CW
    Total length mm: 170.00
    Clutch type: Dry
    Drive type: Steel
    Number/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      cs1385, D7E39, F032114095, TS8E6, 1986S01030, 23300-00QAY, 7701499651, 8200369521

    • Normalised article numbler
      cs1385, d7e39, f032114095, ts8e6, 8ea012526611, 8ea738258211, 1986s01030, 31143r, 101385, 103646, 220358, 220358a, 432685, 455722, 726803, 838008, 2330000qay, 8212973, 42017840, 0986024190, 7701499651, 8200369521
