HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114106

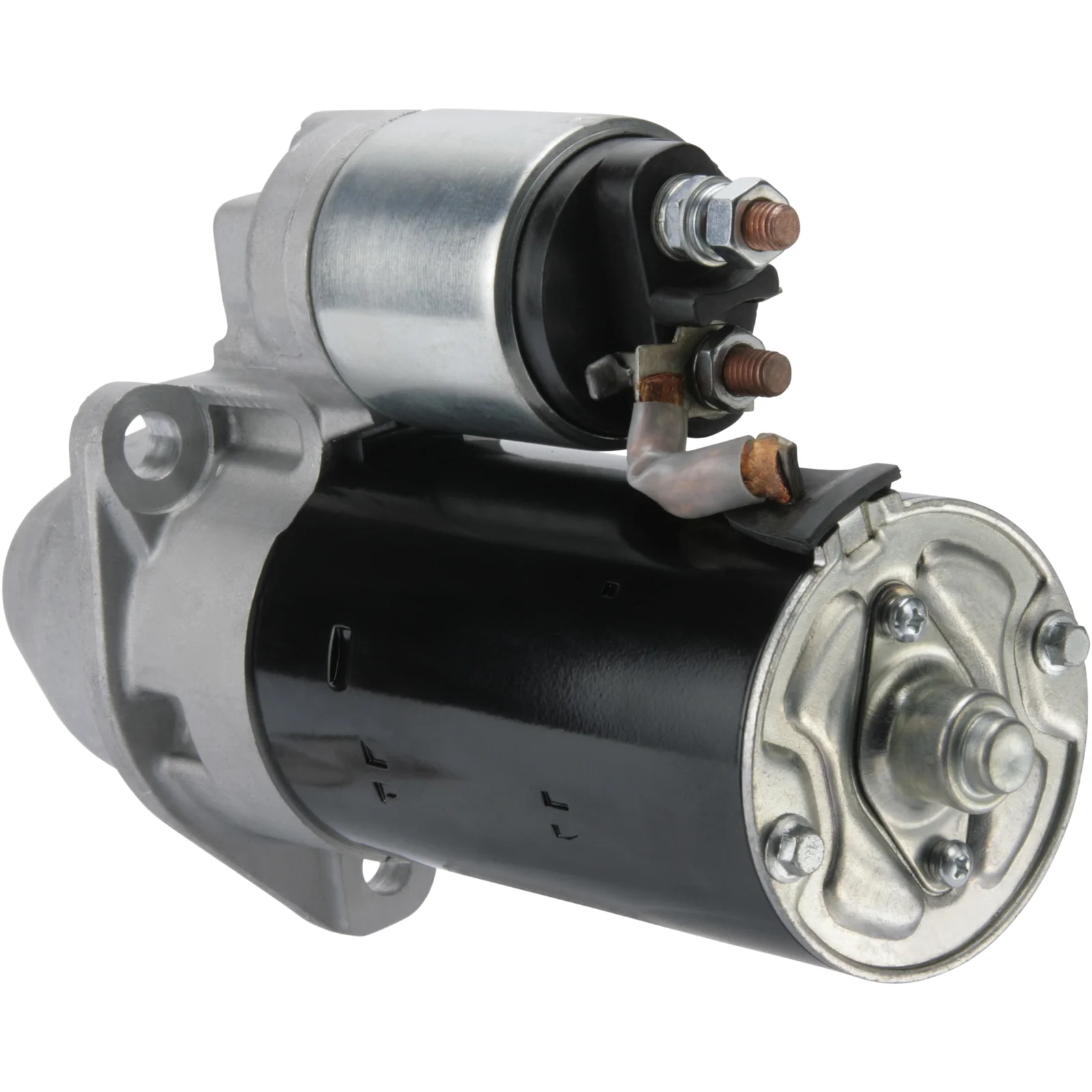

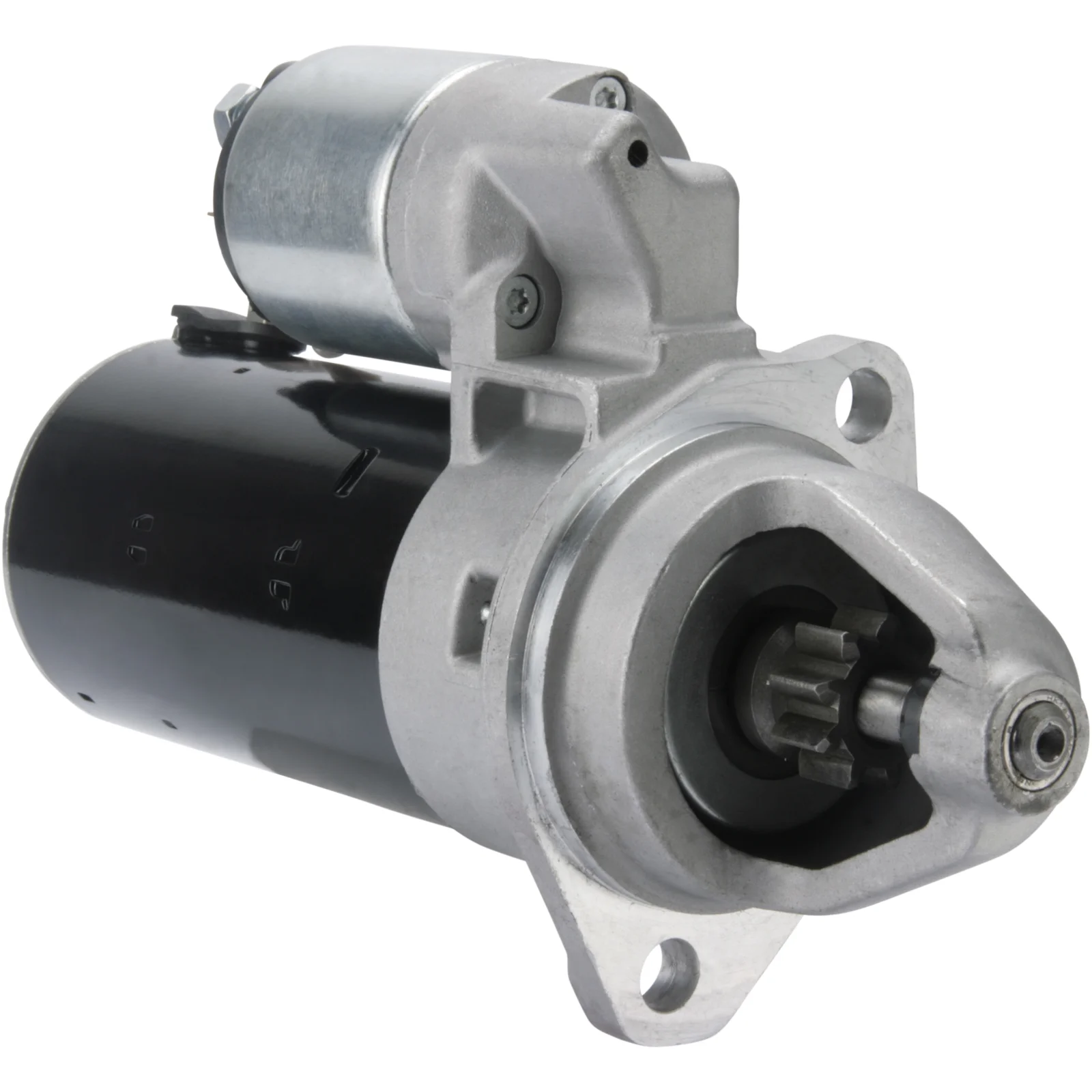

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.6, No./teeth: 9, Rotation: CW

Description

HC-Cargo Starter motor

Voltage: 12
kW: 1.6
Mounting flange: 82.50
Drive distance: 40.00
Mounting hole 2 mm: 12.00
Mounting hole 1 mm: 12.00
Distance / back: 170.00
Distance / front: 86.00
Number / teeth: 9
B+: M8
Position / 50: 15
Terminal 50: 6.30
Distance in millimeters: 102.00
Rotation: CW
Total length in millimeters: 263.00
Number / mounting holes: 2 (0)

Files

  • OEM
    F032114106, 1986S00720, 0001109008, 0001109043, 50353510, 50353511

  • Normalised article numbler
    cst10245, drs3974, f032114106, lrs01330, s0211, 1986s00720, 30253n, 101340, 252124, 0001109008, 0001109043, 11090100, 50353510, 50353511, 680008092
  • Description
    HC-Cargo Starter motor

    Voltage: 12
    kW: 1.6
    Mounting flange: 82.50
    Drive distance: 40.00
    Mounting hole 2 mm: 12.00
    Mounting hole 1 mm: 12.00
    Distance / back: 170.00
    Distance / front: 86.00
    Number / teeth: 9
    B+: M8
    Position / 50: 15
    Terminal 50: 6.30
    Distance in millimeters: 102.00
    Rotation: CW
    Total length in millimeters: 263.00
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114106, 1986S00720, 0001109008, 0001109043, 50353510, 50353511

    • Normalised article numbler
      cst10245, drs3974, f032114106, lrs01330, s0211, 1986s00720, 30253n, 101340, 252124, 0001109008, 0001109043, 11090100, 50353510, 50353511, 680008092
