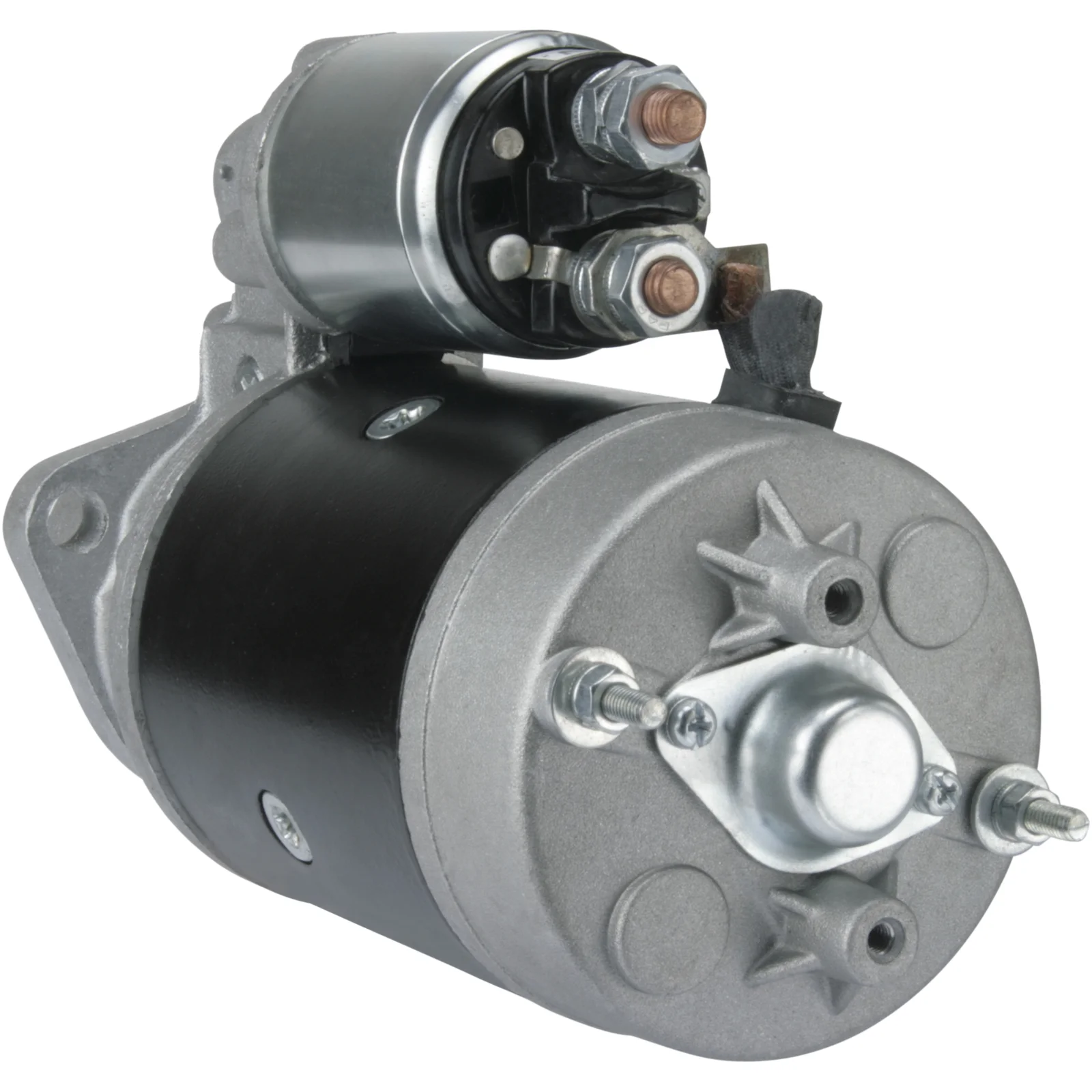

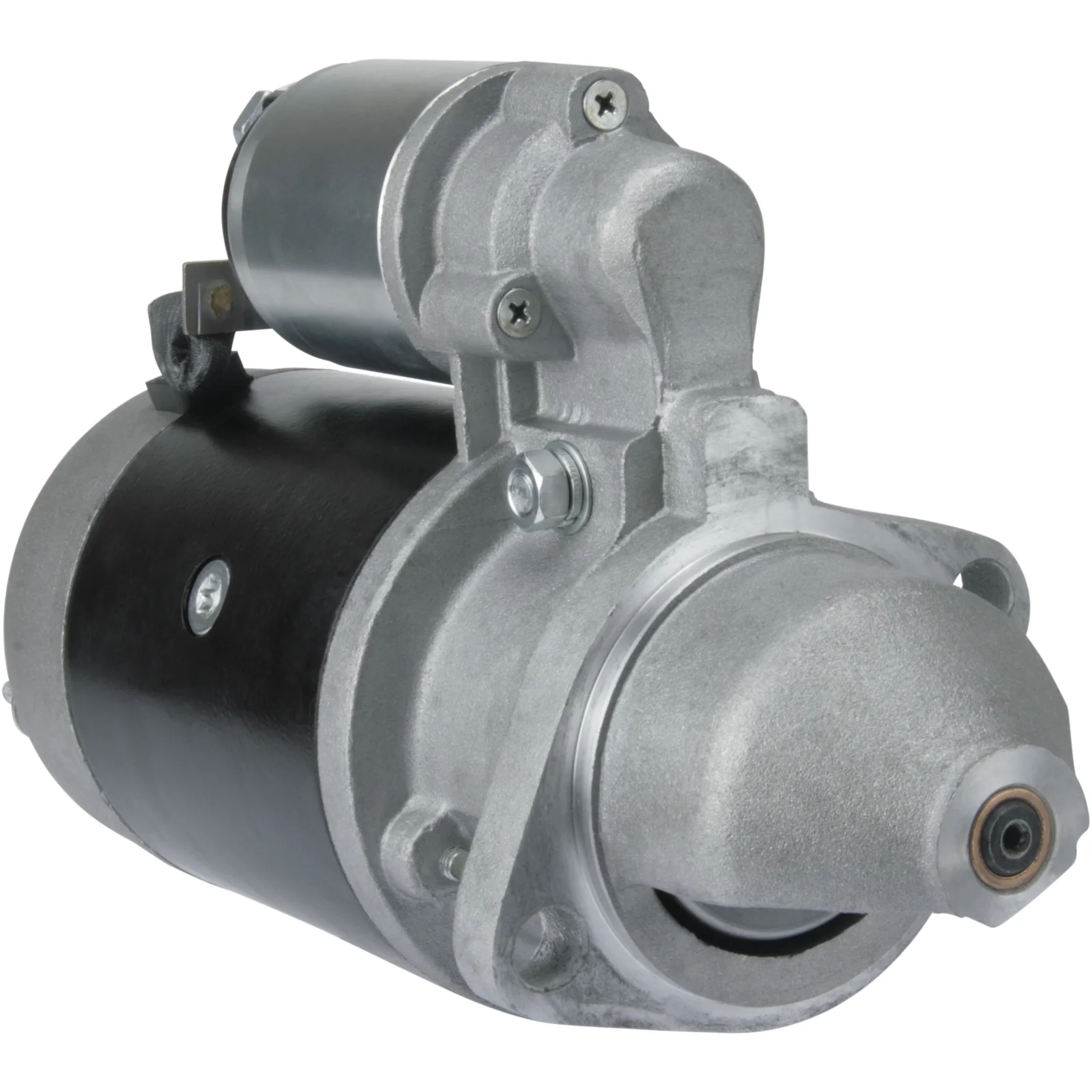

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114265

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.7, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kilowatt: 2.7
Mounting flange: 82.50
Drive distance: 21.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 231.50
Distance / front: 63.50
Number / teeth: 9
B+: M10
Position / 50: 15
Terminal 50: M4
Distance in millimeters: 105.00
Rotation: clockwise
Total length in millimeters: 295.00
Product info: BN
Servicing: VM Motori
Number / mounting holes: 2 (0)

Files

  • OEM
    azj3140, CT6005705502, d11e75, F032114265, mt71l, mt71la, 3.553.2022A, 3.553.2039F, 11.130.503, 0001354099, 0001362021, 0001362050, 0001366009, 035530046A, 35530046A, 6005705502

  • Normalised article numbler
    azj3140, cst10291, cst21103, ct6005705502, d11e75, drs3306, f032114265, is0503, ms391, mt71l, mt71la, s0541, 33484, 33628, 250146, 254028, 0001354099, 0001362021, 0001362050, 0001366009, 11090280, 11130503, 035530046a, 35530046a, 35532022a, 35532039f, 625016092, 6005705502
  • Description
    Voltage: 12
    kilowatt: 2.7
    Mounting flange: 82.50
    Drive distance: 21.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 231.50
    Distance / front: 63.50
    Number / teeth: 9
    B+: M10
    Position / 50: 15
    Terminal 50: M4
    Distance in millimeters: 105.00
    Rotation: clockwise
    Total length in millimeters: 295.00
    Product info: BN
    Servicing: VM Motori
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azj3140, CT6005705502, d11e75, F032114265, mt71l, mt71la, 3.553.2022A, 3.553.2039F, 11.130.503, 0001354099, 0001362021, 0001362050, 0001366009, 035530046A, 35530046A, 6005705502

    • Normalised article numbler
      azj3140, cst10291, cst21103, ct6005705502, d11e75, drs3306, f032114265, is0503, ms391, mt71l, mt71la, s0541, 33484, 33628, 250146, 254028, 0001354099, 0001362021, 0001362050, 0001366009, 11090280, 11130503, 035530046a, 35530046a, 35532022a, 35532039f, 625016092, 6005705502
