HC-Cargo Starter motor

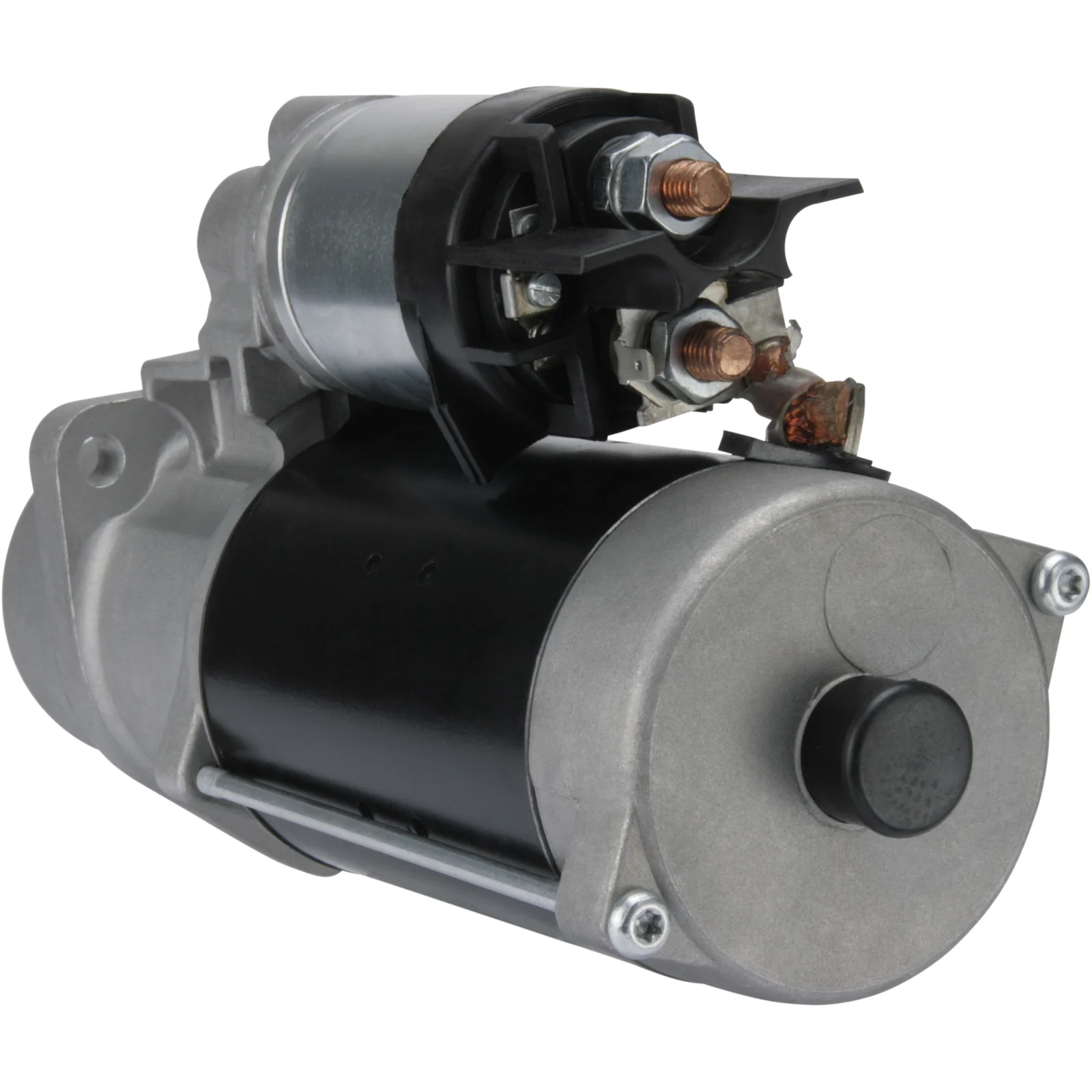

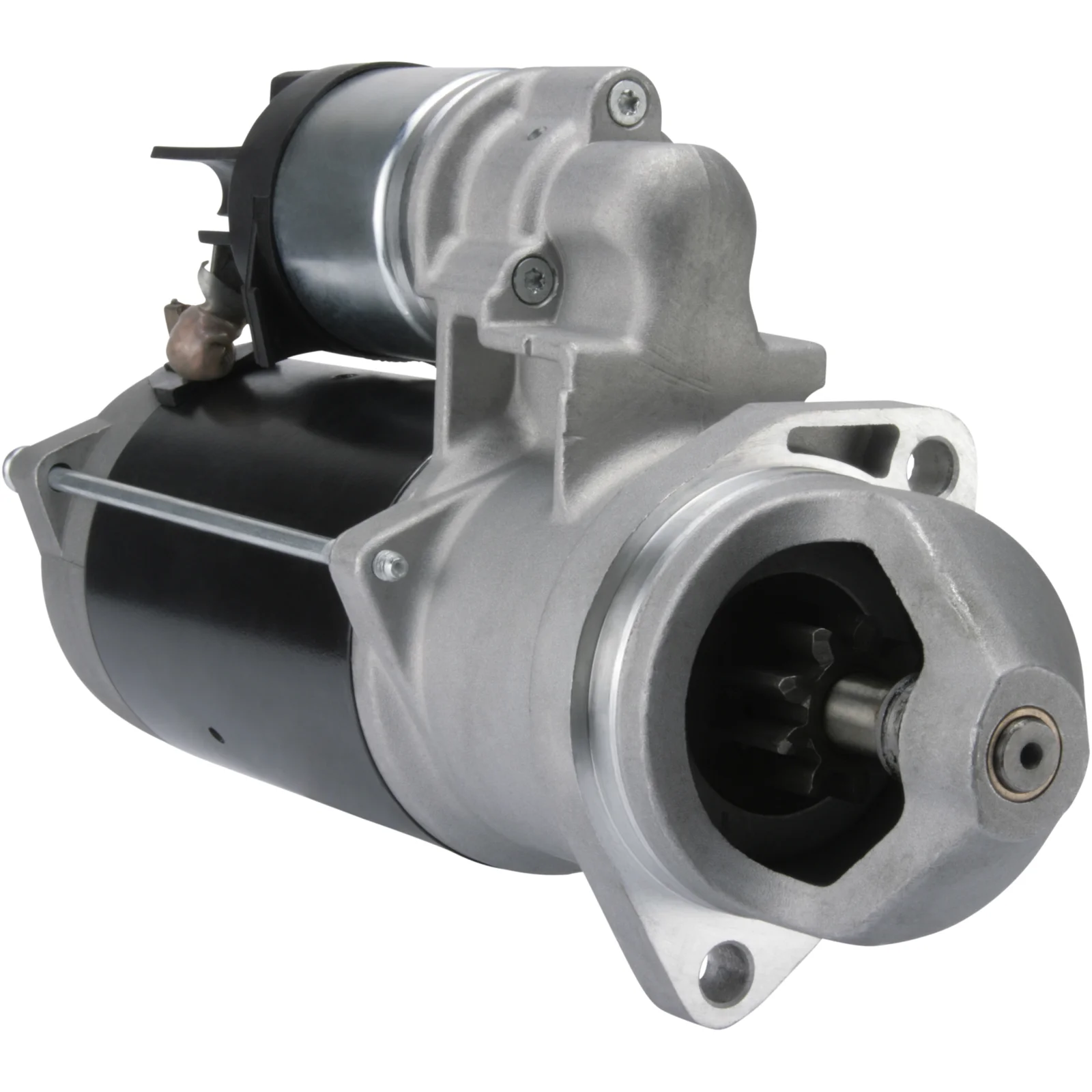

HC-Cargo Starter motor
Article no.: F032114320

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mounting flange: 82.50
Drive distance: 23.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 231.50
Distance / front: 71.50
Number / teeth: 9
B+: M10
Position / 50: 45
Terminal 50: M4
Gear type: GR
Distributor mm: 101.50
Rotation: CW
Total length mm: 316.00
Clutch type: Dry
Drive type: Steel
Number / mounting holes: 2 (0)

Files

  • OEM
    AZF4229, F032114320, 01181570, 01181570KZ, 1181570, 1181570KZ, 01182179, 1182179, 01182388, 1182388, 0001230013, 04300287

  • Normalised article numbler
    azf4229, drs0363, f032114320, is1237, les0380, lrs02559, ms67, s0300, s9174, 8009, 18525n, 254231, 255052, 01181570, 01181570kz, 1181570, 1181570kz, 01182179, 1182179, 01182388, 1182388, 0001230013, 04300287, 11090158
  • Description
    Voltage: 12
    kW: 3.0
    Mounting flange: 82.50
    Drive distance: 23.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 231.50
    Distance / front: 71.50
    Number / teeth: 9
    B+: M10
    Position / 50: 45
    Terminal 50: M4
    Gear type: GR
    Distributor mm: 101.50
    Rotation: CW
    Total length mm: 316.00
    Clutch type: Dry
    Drive type: Steel
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4229, F032114320, 01181570, 01181570KZ, 1181570, 1181570KZ, 01182179, 1182179, 01182388, 1182388, 0001230013, 04300287

    • Normalised article numbler
      azf4229, drs0363, f032114320, is1237, les0380, lrs02559, ms67, s0300, s9174, 8009, 18525n, 254231, 255052, 01181570, 01181570kz, 1181570, 1181570kz, 01182179, 1182179, 01182388, 1182388, 0001230013, 04300287, 11090158
