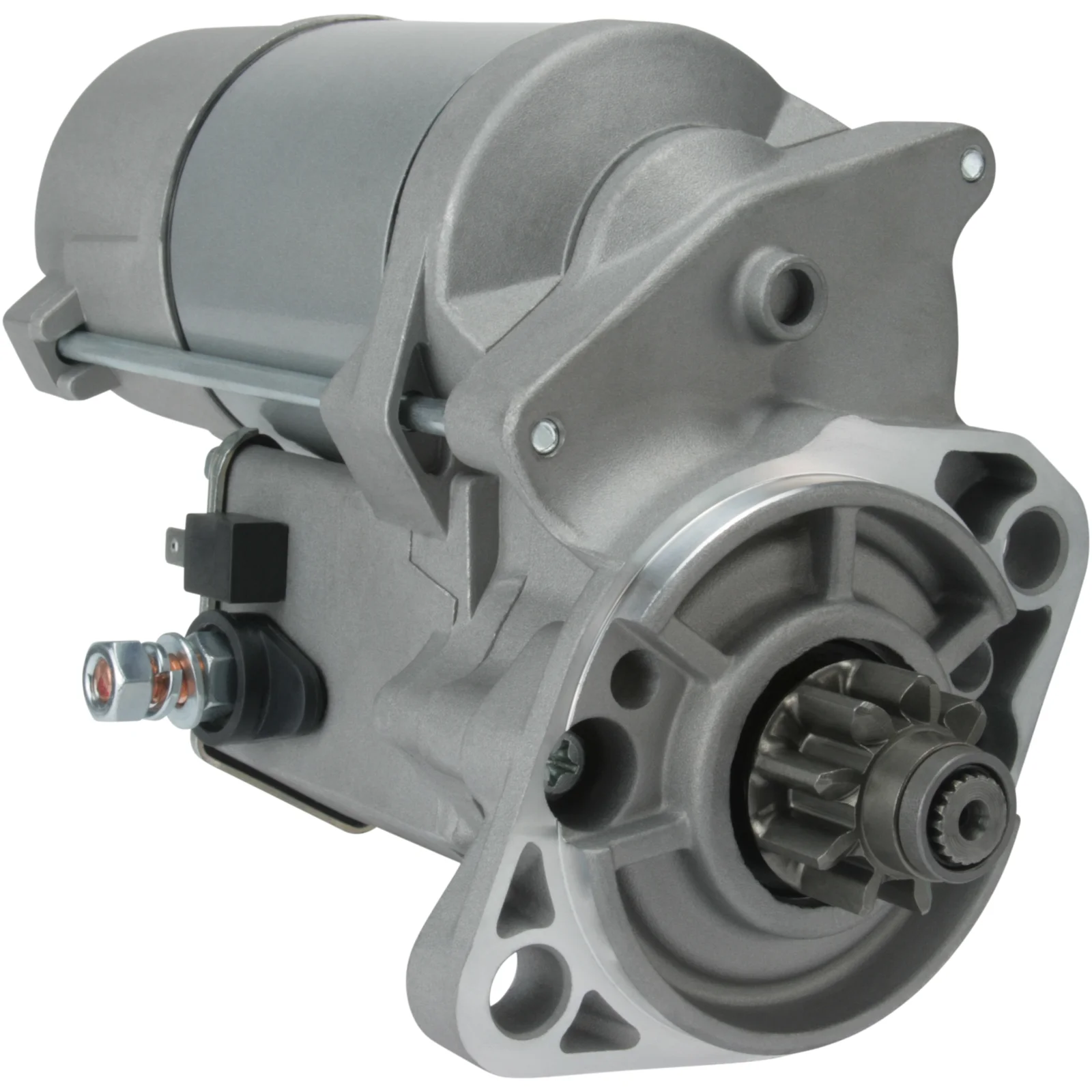

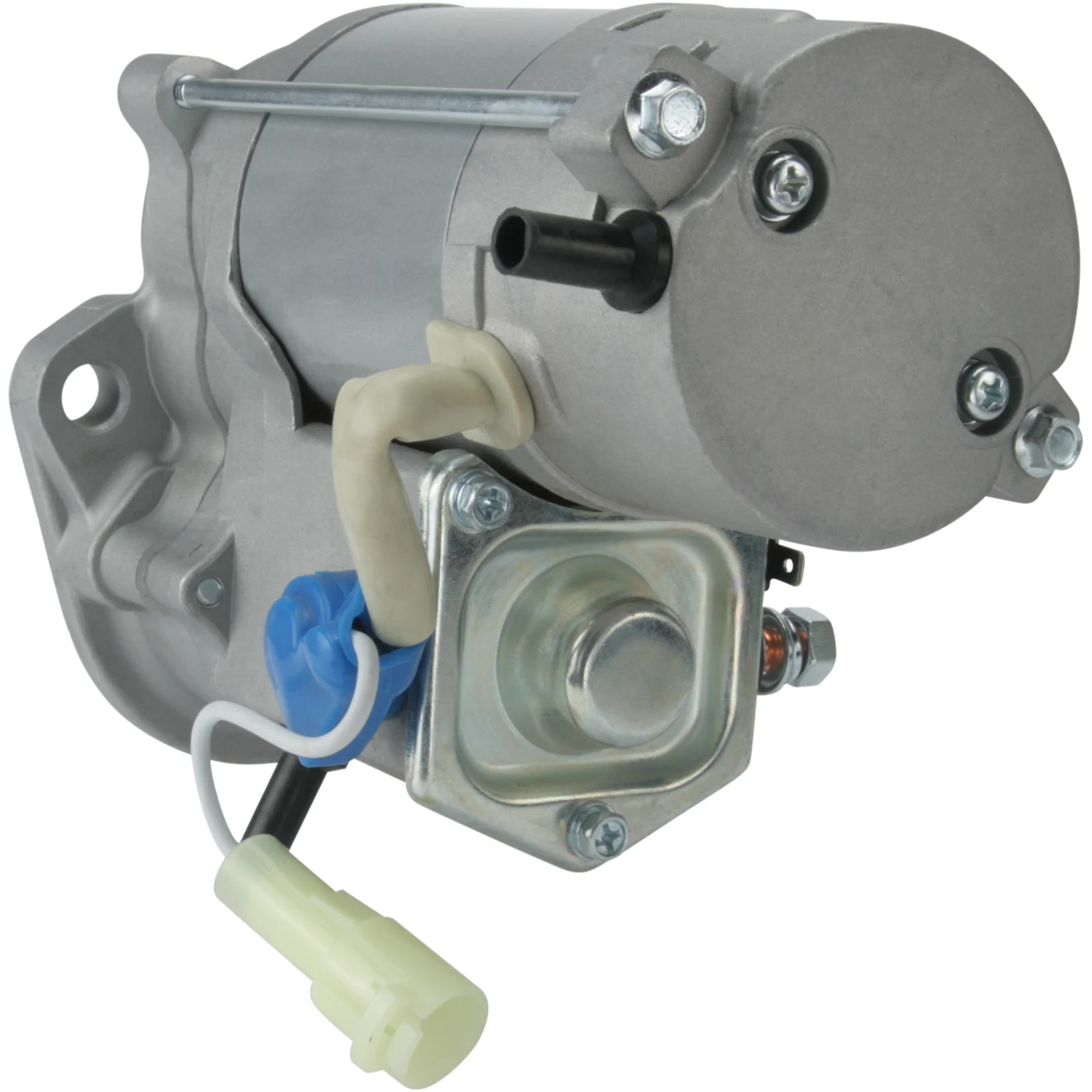

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114333

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mounting flange: 82.50
Drive distance: 25.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 125.00
Distance / front: 37.00
Number / teeth: 9
B+: M8
Position / 50: 10
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 105.00
Rotation: CW
Total length in millimeters: 221.00
Terminal 30h: Plug
Prod. info: BN
Number / mounting holes: 2 (0)

Files

  • OEM
    F032114333, 1G911-63012, 428000-0930, 428000-0931, 253931600, 9742809093

  • Normalised article numbler
    f032114333, f042000056, f042s00056, lrs02562, s6344s, snd0336, str5300, 1g91163012, 18556n, 18557n, 255226, 253931600, 690526092, 4280000930, 4280000931, 9742809093
  • Description
    Voltage: 12
    kW: 2.2
    Mounting flange: 82.50
    Drive distance: 25.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 125.00
    Distance / front: 37.00
    Number / teeth: 9
    B+: M8
    Position / 50: 10
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 105.00
    Rotation: CW
    Total length in millimeters: 221.00
    Terminal 30h: Plug
    Prod. info: BN
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114333, 1G911-63012, 428000-0930, 428000-0931, 253931600, 9742809093

    • Normalised article numbler
      f032114333, f042000056, f042s00056, lrs02562, s6344s, snd0336, str5300, 1g91163012, 18556n, 18557n, 255226, 253931600, 690526092, 4280000930, 4280000931, 9742809093
