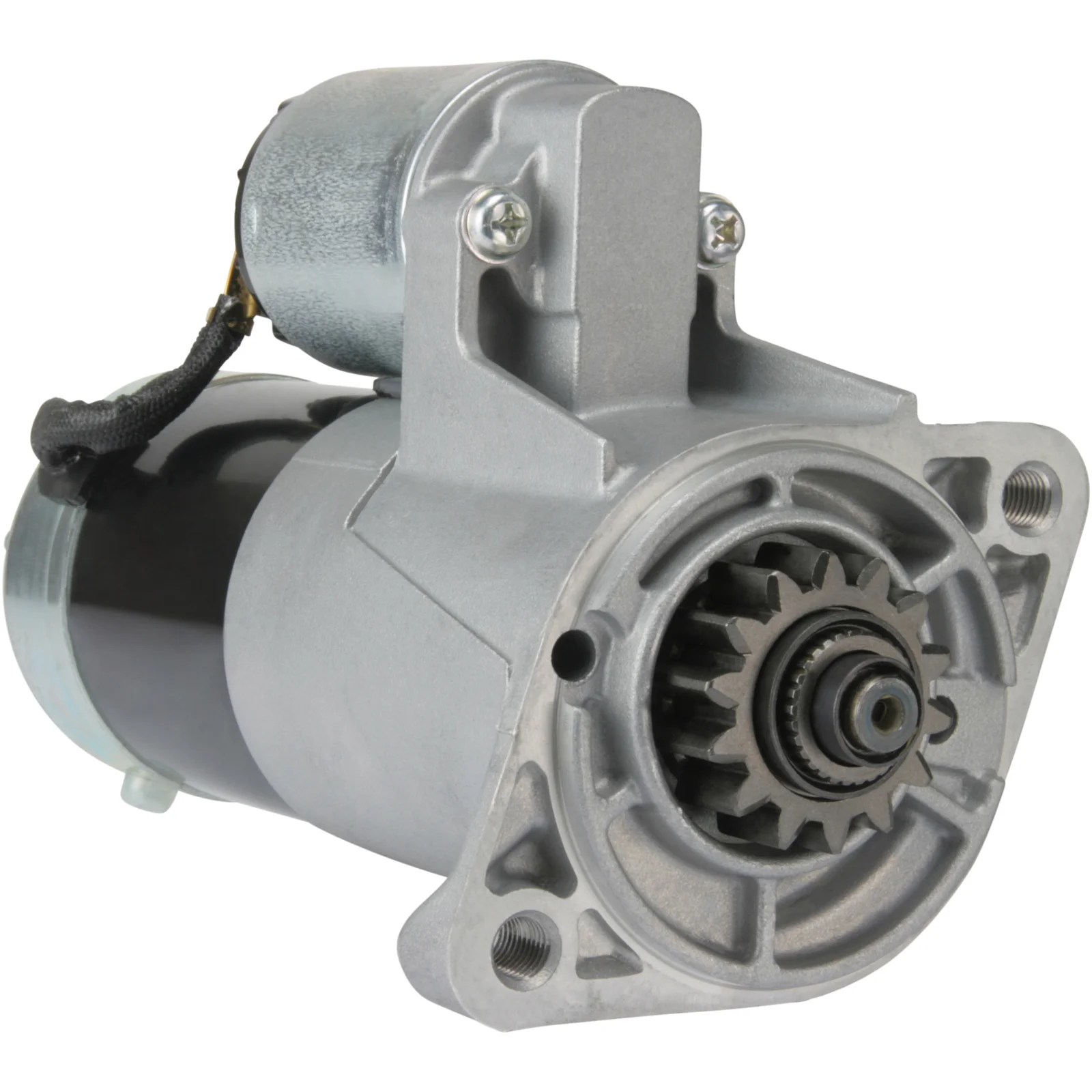

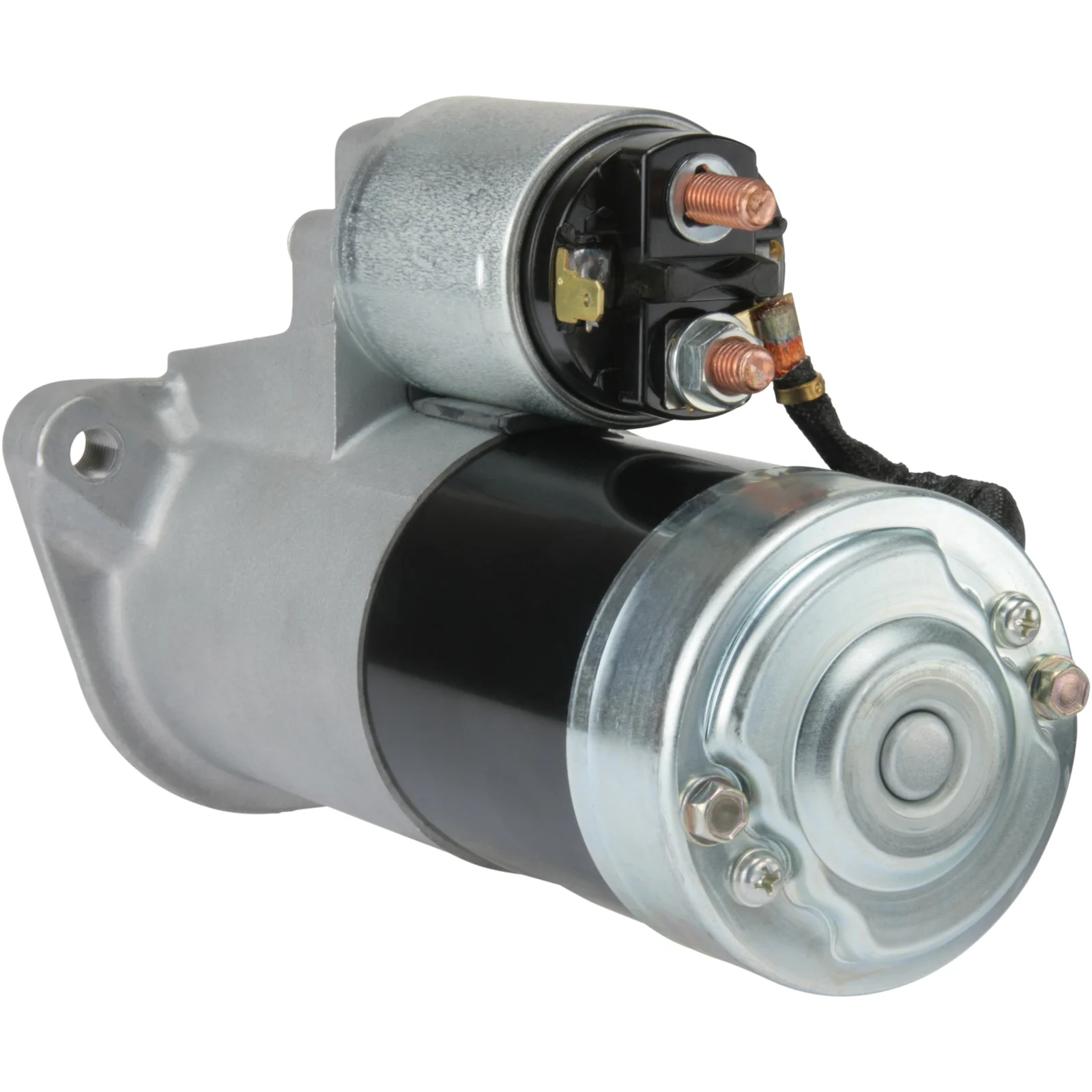

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114444

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.6, No./teeth: 14, Rotation: CW

Description

Voltage: 12
kW: 1.6
Mount. flange: 77.00
Drive distance: 17.00
Dist./back: 194.00
Dist./front: 30.50
No./teeth: 14
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 228.00
Prod. info: BN
No./mounting holes: 2 (2)

Files

  • OEM
    F032114444, M001T68381, m1t68381, O1T68381, 30L66-10500

  • Normalised article numbler
    cst35190, drs0291, f032114444, lrs02388, m001t68381, m1t68381, o1t68381, s5469s, 30l6610500, 19609, 19609n, 254060, 254517, 326058142
  • Description
    Voltage: 12
    kW: 1.6
    Mount. flange: 77.00
    Drive distance: 17.00
    Dist./back: 194.00
    Dist./front: 30.50
    No./teeth: 14
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 228.00
    Prod. info: BN
    No./mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032114444, M001T68381, m1t68381, O1T68381, 30L66-10500

    • Normalised article numbler
      cst35190, drs0291, f032114444, lrs02388, m001t68381, m1t68381, o1t68381, s5469s, 30l6610500, 19609, 19609n, 254060, 254517, 326058142
