HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114447

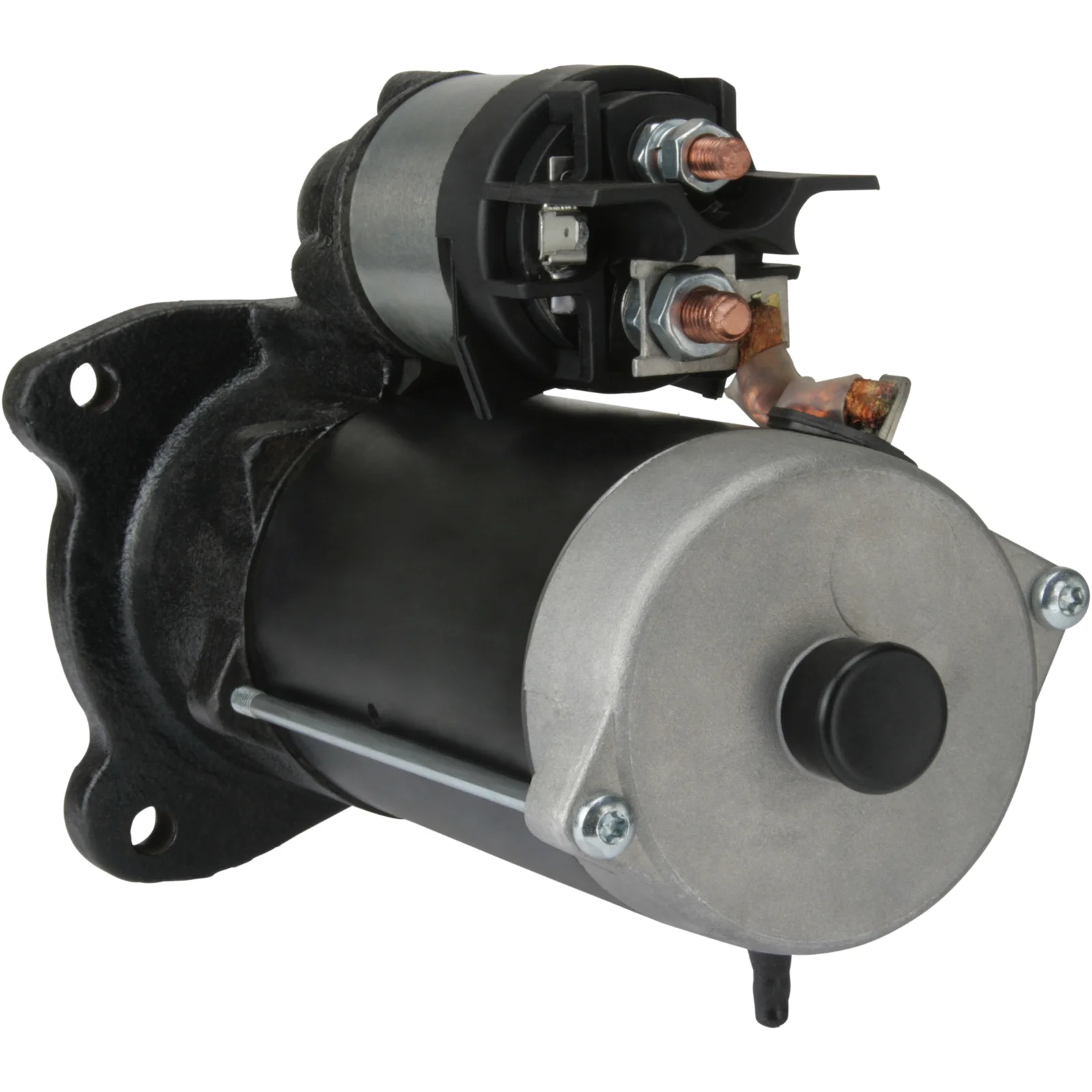

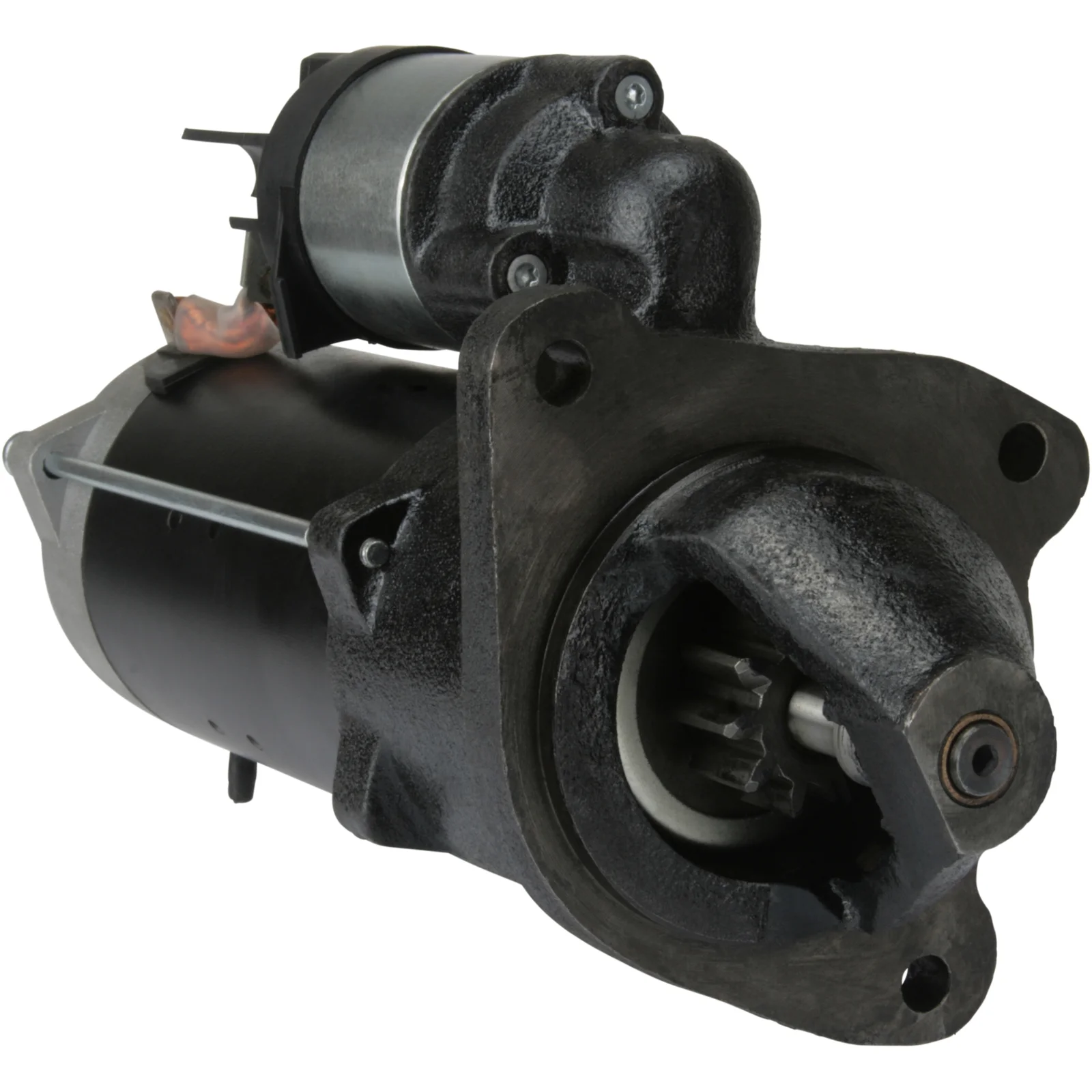

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mounting flange: 92.00
Drive distance: 21.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 234.00
Distance / front: 67.50
Number / teeth: 10
B+: M8
Position / 50: 45
Terminal 50: 6.30
Gear type: GR
Distance 2: 146.00
Distance 3: 103.50
Distance mm: 103.50
Rotation: CW
Total length mm: 316.00
Product info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    AZF4115, AZF4183, AZF4511, AZF4539, F032114447, 11.130.785, 11.131.027, 11.131.430, 11.131.705, 82013134, 82014160, 82015723, 82021372, 84017265, 87755550

  • Normalised article numbler
    azf4115, azf4183, azf4511, azf4539, cst21109, cst21147, drs0985, f032114447, is1016, ms25, s9225, s9225letrika, 19653n, 253166, 254309, 11130785, 11131027, 11131430, 11131705, 82013134, 82014160, 82015723, 82021372, 84017265, 87755550
  • Description
    Voltage: 12
    kW: 3.0
    Mounting flange: 92.00
    Drive distance: 21.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 234.00
    Distance / front: 67.50
    Number / teeth: 10
    B+: M8
    Position / 50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance 2: 146.00
    Distance 3: 103.50
    Distance mm: 103.50
    Rotation: CW
    Total length mm: 316.00
    Product info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4115, AZF4183, AZF4511, AZF4539, F032114447, 11.130.785, 11.131.027, 11.131.430, 11.131.705, 82013134, 82014160, 82015723, 82021372, 84017265, 87755550

    • Normalised article numbler
      azf4115, azf4183, azf4511, azf4539, cst21109, cst21147, drs0985, f032114447, is1016, ms25, s9225, s9225letrika, 19653n, 253166, 254309, 11130785, 11131027, 11131430, 11131705, 82013134, 82014160, 82015723, 82021372, 84017265, 87755550
