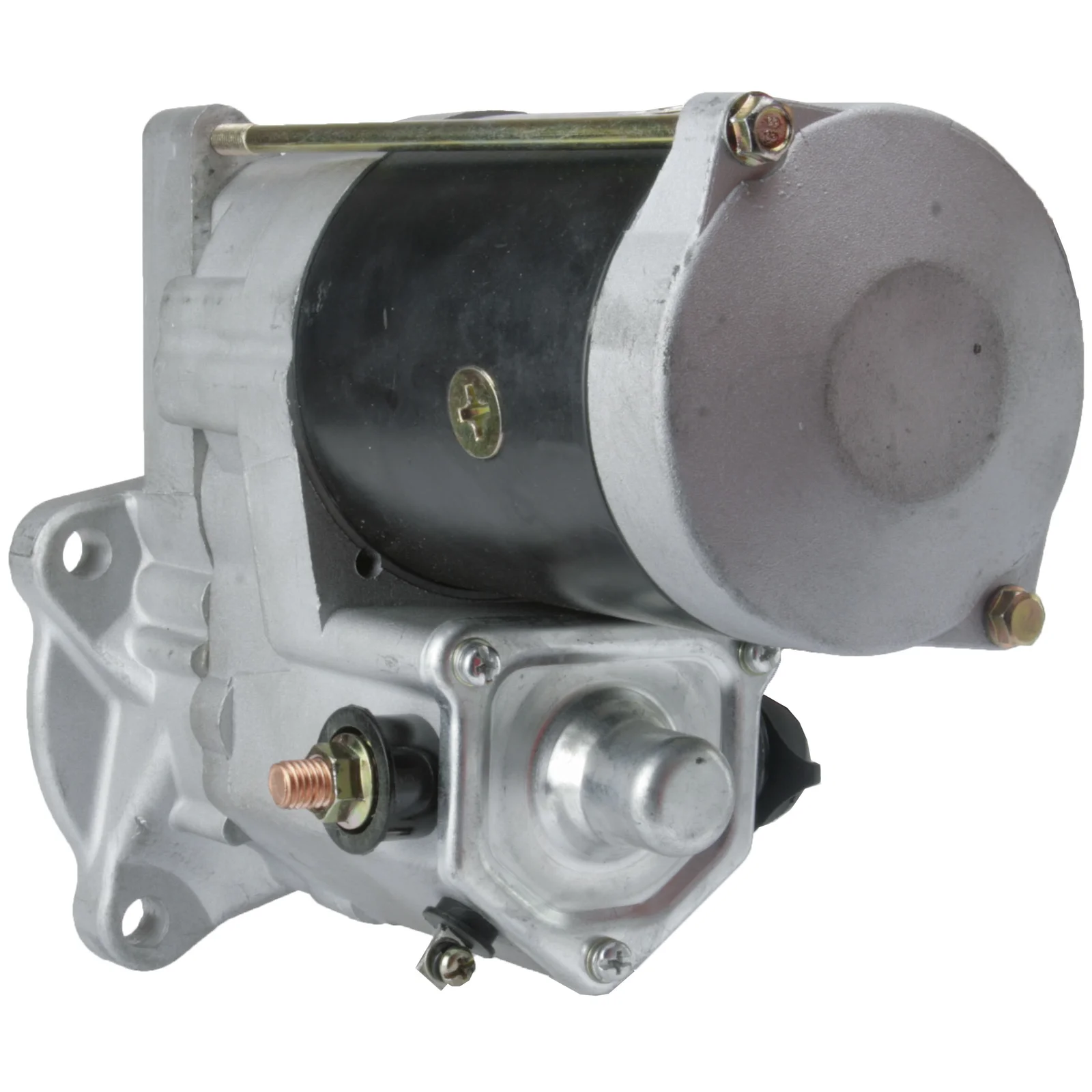

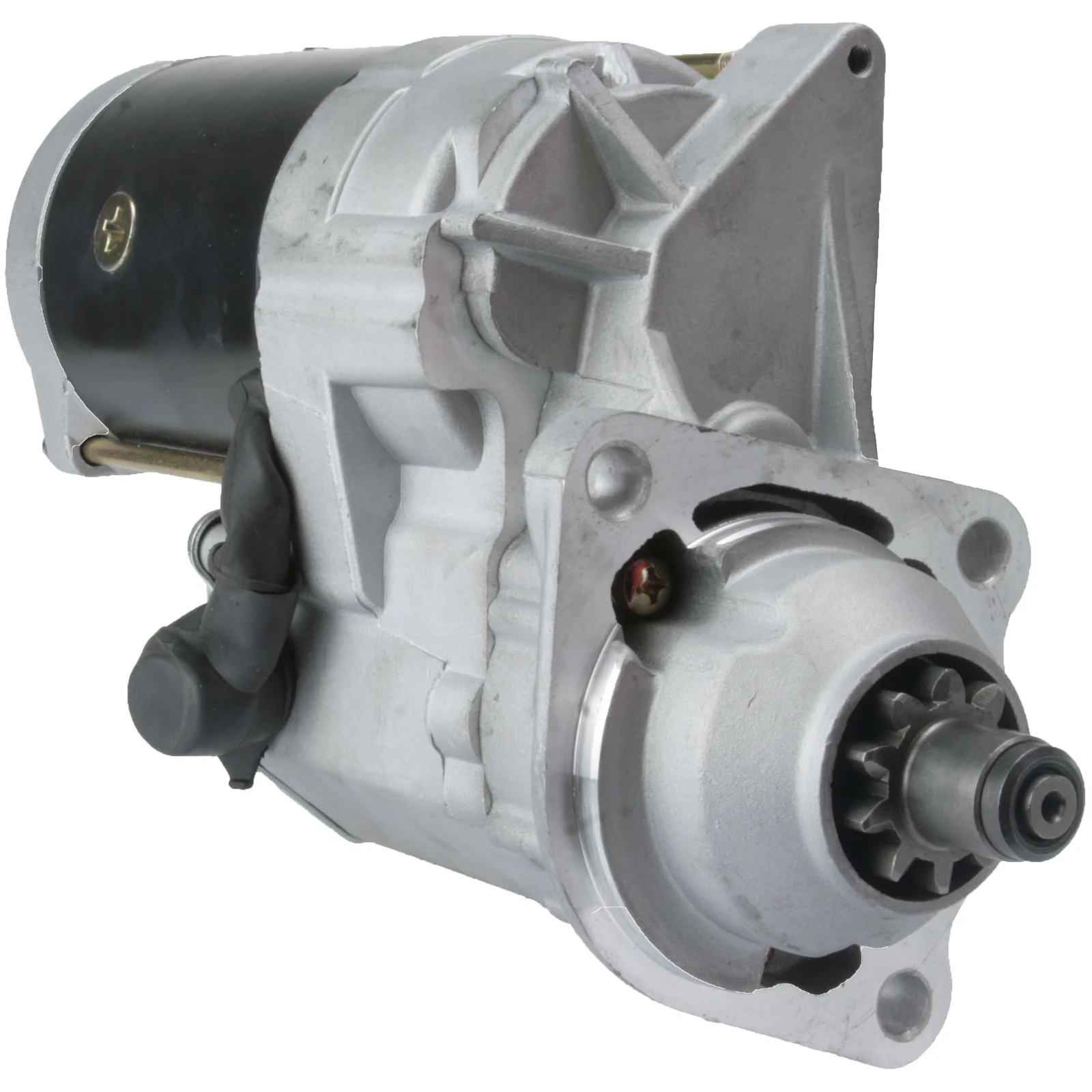

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114449

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 4.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 4.0
Mounting flange: 89.00
Drive distance: 47.50
Mounting hole 3 mm: 12.00
Mounting hole 2 mm: 12.00
Mounting hole 1 mm: 12.00
Distance / back: 242.00
Distance / front: 72.50
Number / teeth: 10
B+: M10
Position / B+: 45
Position / 50: 35
Terminal 50: M5
Gear type: GR
Distance 2: 126.50
Distance 3: 89.50
Distance mm: 89.50
Rotation: CW
Total length mm: 318.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Servicing: Case
Number / mounting holes: 3 (0)

Files

  • OEM
    F032114449, 116928A2, 128000-5370, 128000-5371, 128000-5372, 128000-5620, 128000-5621, 128000-5622, 128000-5623, 228000-6870, 228000-6871, 228000-6872, 259720A1

  • Normalised article numbler
    cst40504, dsn2010, f032114449, 116928a2, 254644, 259720a1, 630519103, 1280005370, 1280005371, 1280005372, 1280005620, 1280005621, 1280005622, 1280005623, 2280006870, 2280006871, 2280006872
