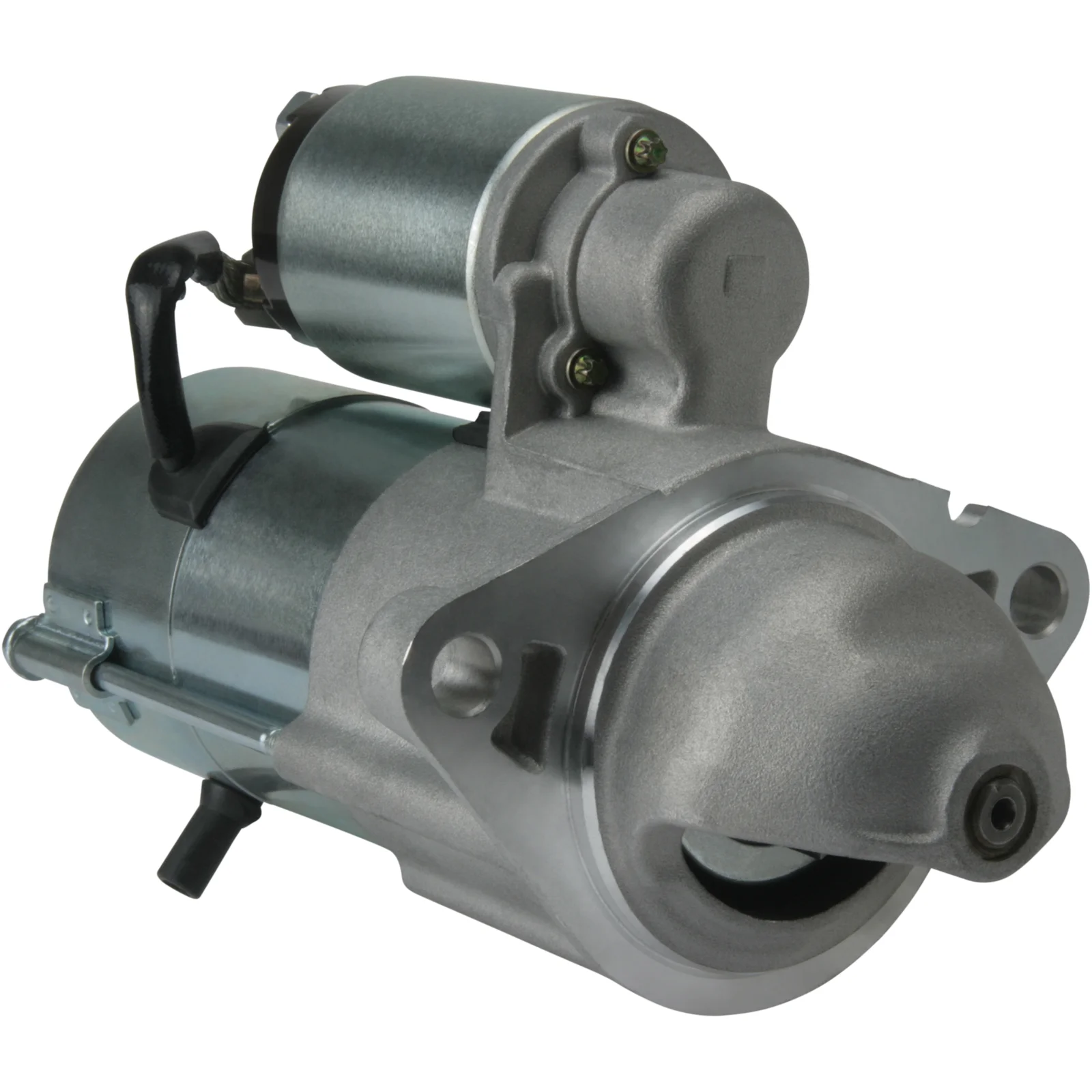

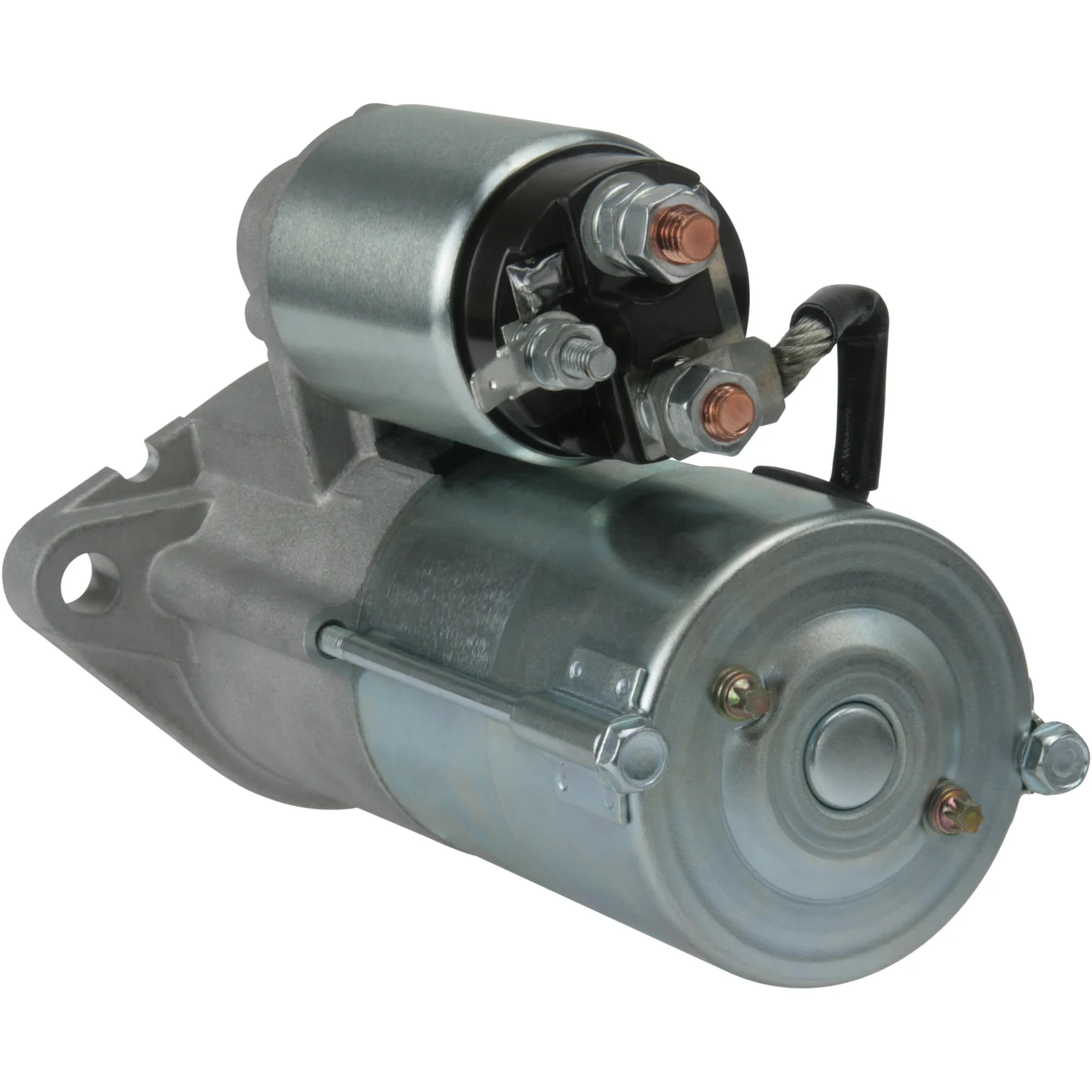

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114476

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.8, No./teeth: 9, Rotation: CW

Description

HC-Cargo Starter motor

Voltage: 12
kW: 1.8
Mounting flange: 74.00
Drive distance: 20.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 163.00
Distance / front: 55.00
Number / teeth: 9
B+: M8
Position / B+: 60
Position / 50: 45
Terminal 50: M6
Gear type: GR
Distance mm: 111.00
Rotation: CW
Total length mm: 218.00
Production info: BN
Number / mounting holes: 2 (0)

Files

  • OEM
    F032114476, P30DC03A, U5MK8260, U85086770, U85086771, 333-5930, 8000111, 8000277, 8000344, 8000417, 8000531

  • Normalised article numbler
    cst60129, drs0012, f032114476, lrs02701, p30dc03a, s1170s, u5mk8260, u85086770, u85086771, 254373, 3335930, 8000111, 8000277, 8000344, 8000417, 8000531, 668013092
  • Description
    HC-Cargo Starter motor

    Voltage: 12
    kW: 1.8
    Mounting flange: 74.00
    Drive distance: 20.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 163.00
    Distance / front: 55.00
    Number / teeth: 9
    B+: M8
    Position / B+: 60
    Position / 50: 45
    Terminal 50: M6
    Gear type: GR
    Distance mm: 111.00
    Rotation: CW
    Total length mm: 218.00
    Production info: BN
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114476, P30DC03A, U5MK8260, U85086770, U85086771, 333-5930, 8000111, 8000277, 8000344, 8000417, 8000531

    • Normalised article numbler
      cst60129, drs0012, f032114476, lrs02701, p30dc03a, s1170s, u5mk8260, u85086770, u85086771, 254373, 3335930, 8000111, 8000277, 8000344, 8000417, 8000531, 668013092
