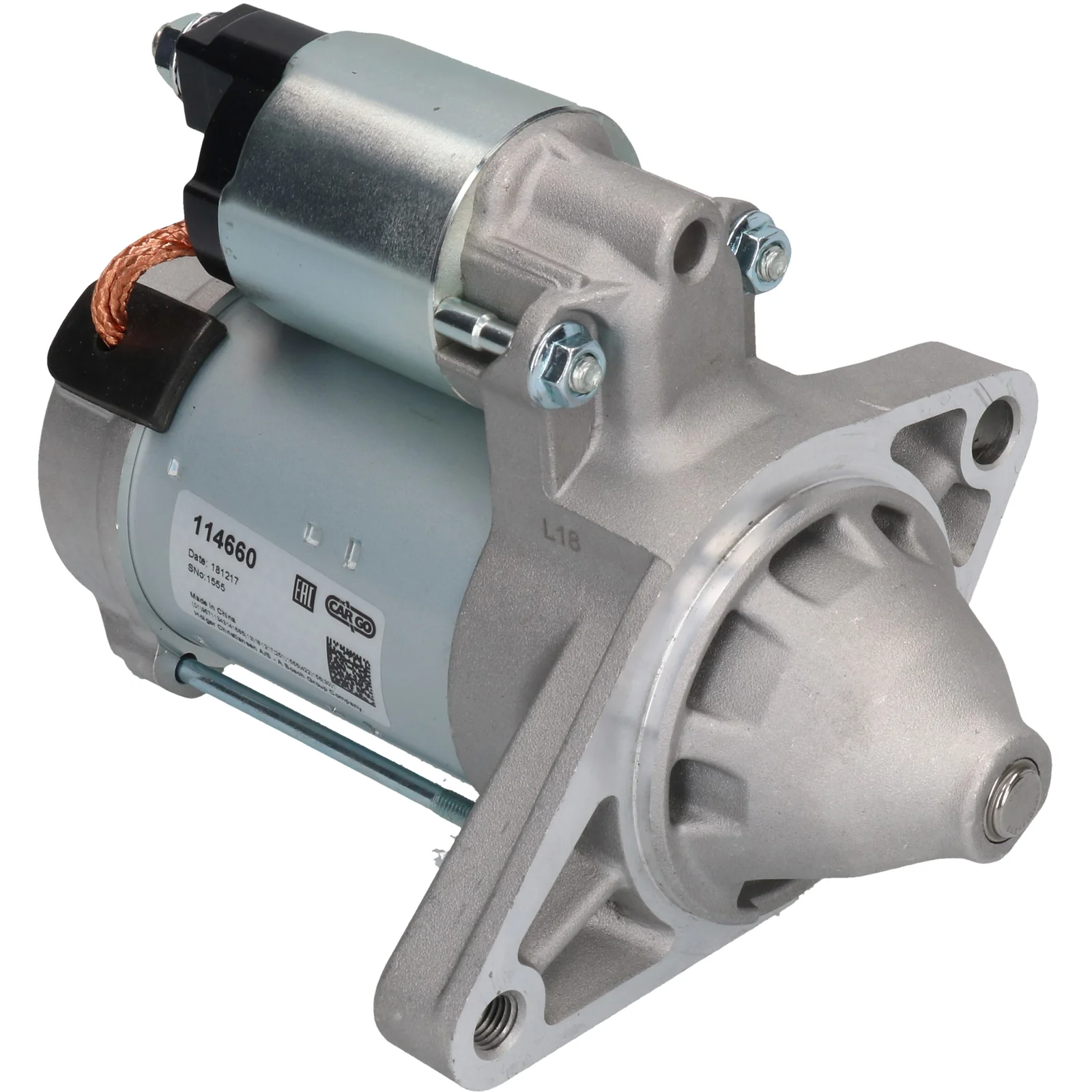

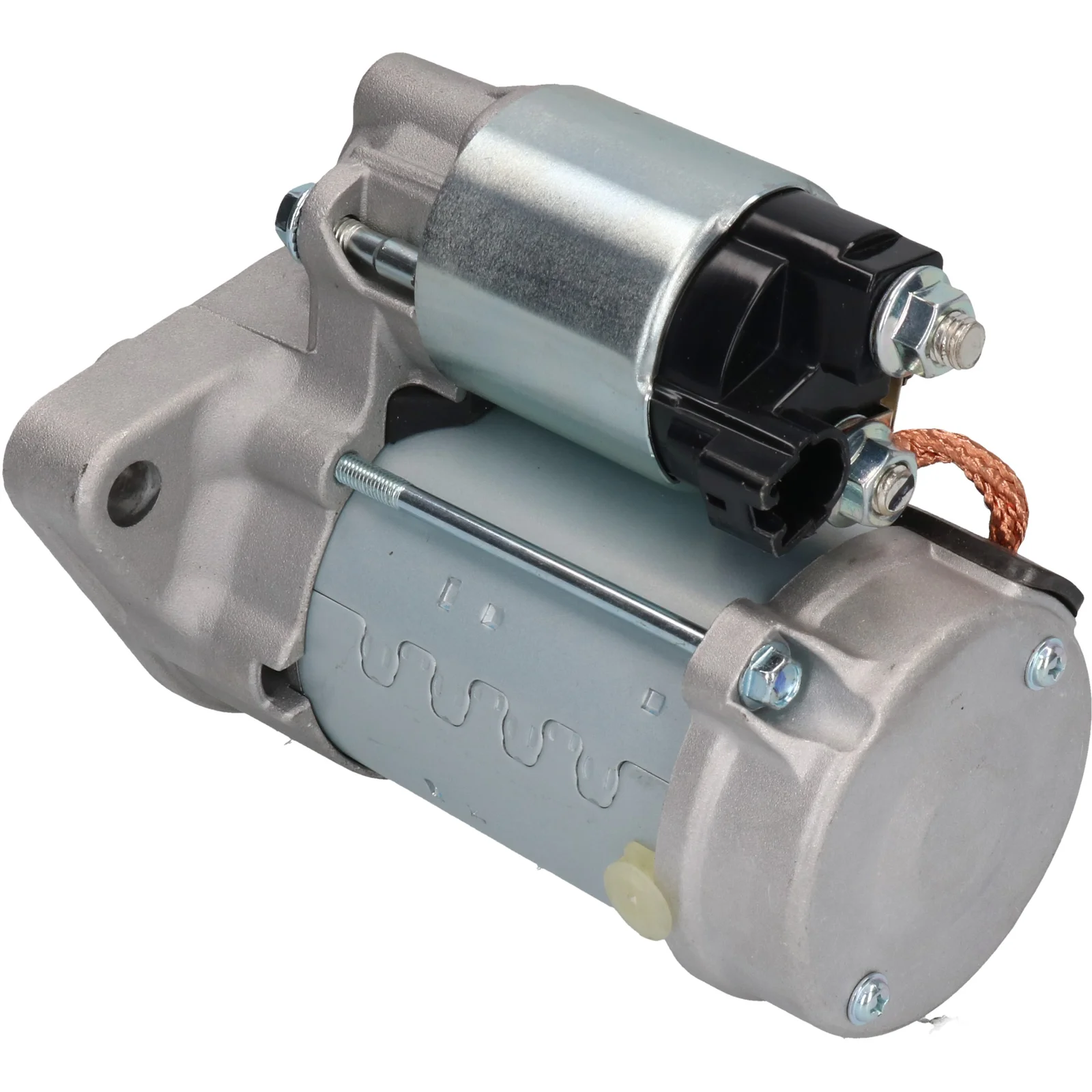

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114660

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mount. flange: 74.00
Drive dist.: 11.50
Mount. hole 1 mm: 11.00
Dist./back: 143.50
Dist./front: 45.50
No./teeth: 9
B+: M8
Position/50: 40
Terminal 50: Plug
Gear type: GR
Dist. mm: 129.50
Rotation: CW
Total length mm: 189.00
No./mount. holes: 2 (1)

Files

  • OEM
    cs1506, F032114660, 1986S01003, 28100-0j030, 28100-0j031, 28100-0j050, 428000-3370, 428000-3371, 428000-3372, 428000-4550

  • Normalised article numbler
    cs1506, cst44117, drs0671, dsn980, f032114660, s6125, 1986s01003, 220776, 220776a, 255237, 281000j030, 281000j031, 281000j050, 438510, 458911, 8023550, 11040702, 335224082, 335224092, 0986025300, 4280003370, 4280003371, 4280003372, 4280004550
  • Description
    Voltage: 12
    kW: 1.2
    Mount. flange: 74.00
    Drive dist.: 11.50
    Mount. hole 1 mm: 11.00
    Dist./back: 143.50
    Dist./front: 45.50
    No./teeth: 9
    B+: M8
    Position/50: 40
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 129.50
    Rotation: CW
    Total length mm: 189.00
    No./mount. holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      cs1506, F032114660, 1986S01003, 28100-0j030, 28100-0j031, 28100-0j050, 428000-3370, 428000-3371, 428000-3372, 428000-4550

    • Normalised article numbler
      cs1506, cst44117, drs0671, dsn980, f032114660, s6125, 1986s01003, 220776, 220776a, 255237, 281000j030, 281000j031, 281000j050, 438510, 458911, 8023550, 11040702, 335224082, 335224092, 0986025300, 4280003370, 4280003371, 4280003372, 4280004550
