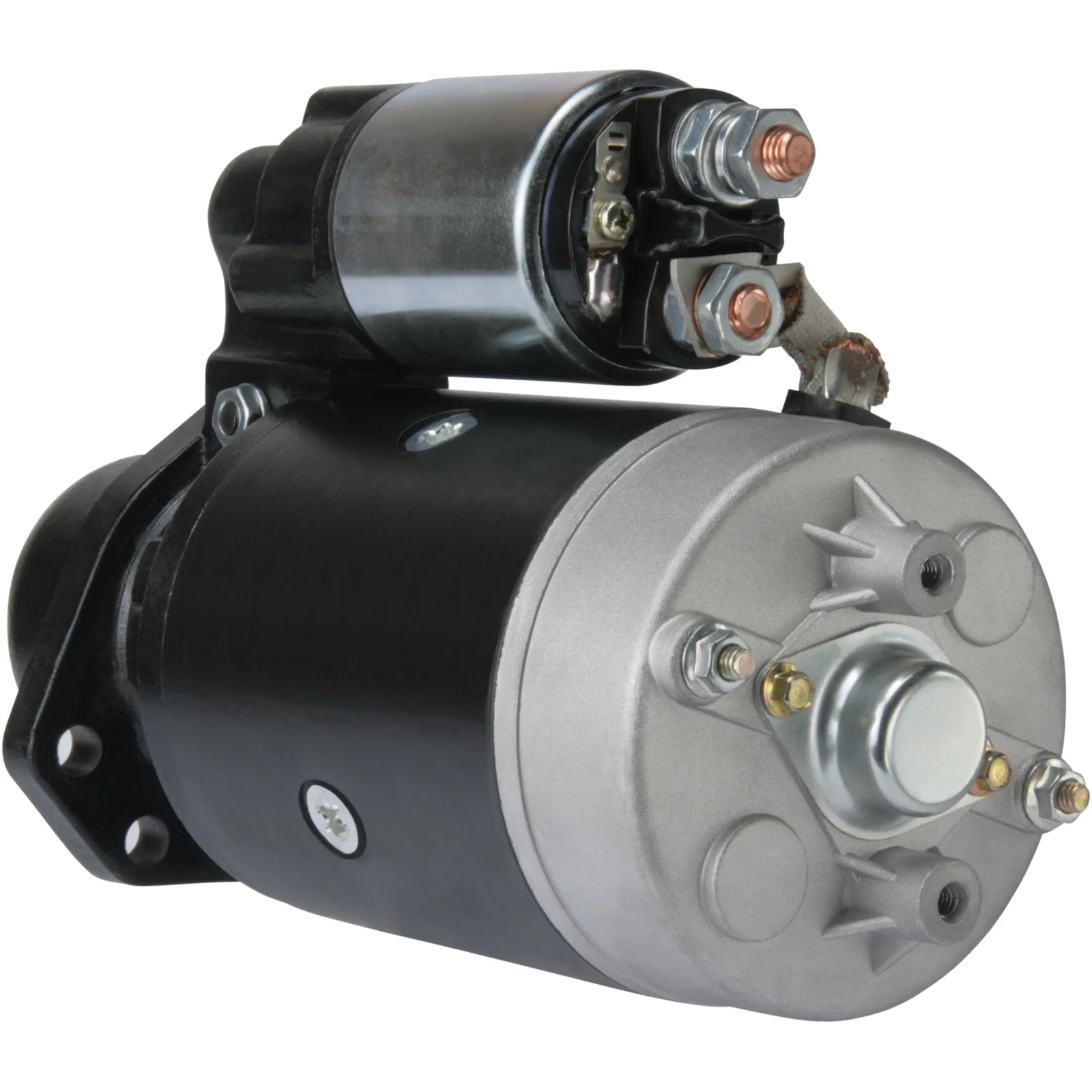

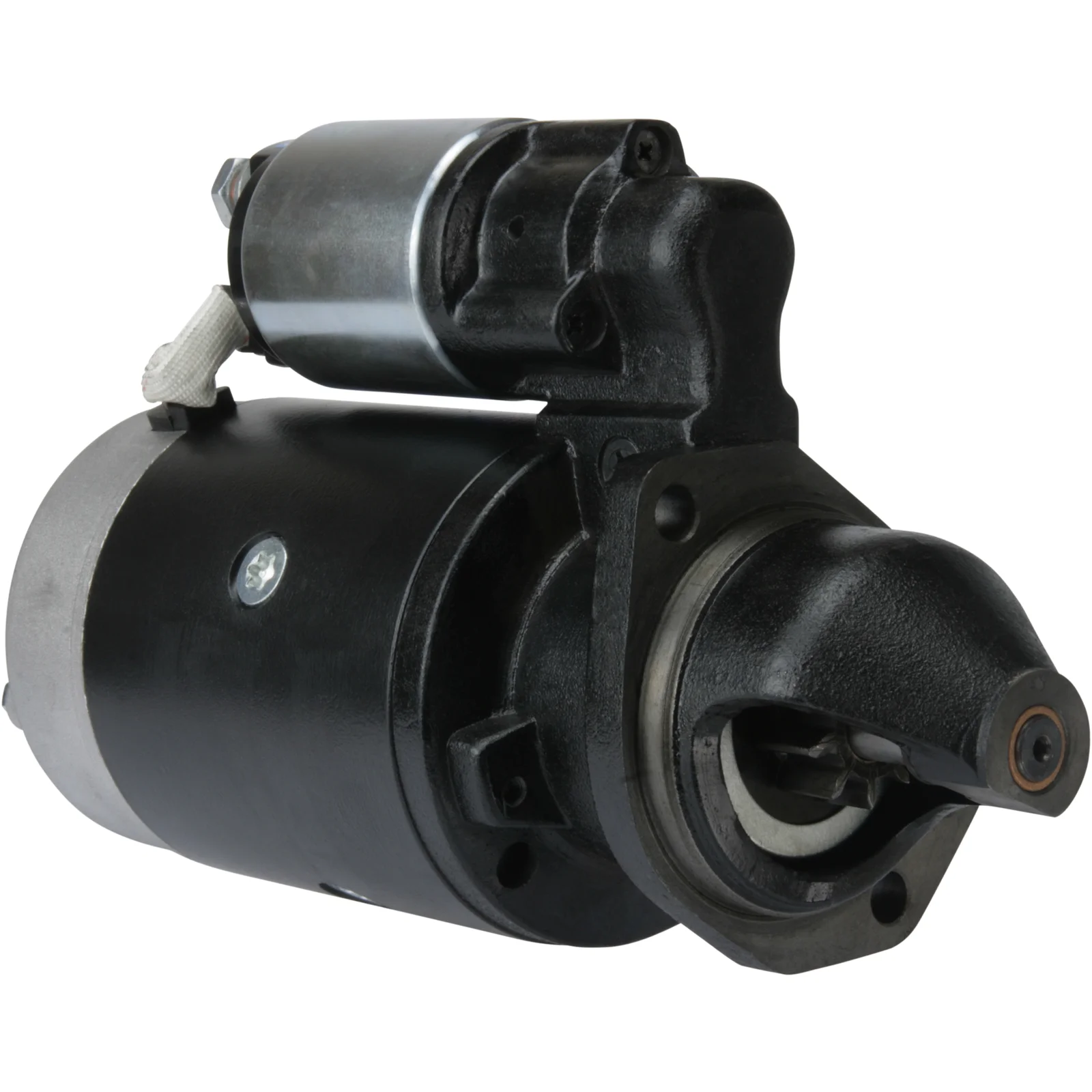

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114676

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mounting flange: 82.50
Drive distance: 23.00
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance / back: 217.00
Distance / front: 67.00
Number / teeth: 9
B+: M10
Position / 50: 45
Terminal 50: M4
Gear type: DD
Distance 2: 105.00
Distance 3: 102.00
Distance mm: 28.00
Rotation: CW
Total length mm: 293.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    F032114676, 01181877, 1181877, 01182386, 1182386, 0001362705

  • Normalised article numbler
    cst10395, drs0789, f032114676, lrs02639, s0847s, 254147, 254312, 254884, 01181877, 1181877, 01182386, 1182386, 0001362705, 11090508, 688031092
  • Description
    Voltage: 12
    kW: 2.2
    Mounting flange: 82.50
    Drive distance: 23.00
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance / back: 217.00
    Distance / front: 67.00
    Number / teeth: 9
    B+: M10
    Position / 50: 45
    Terminal 50: M4
    Gear type: DD
    Distance 2: 105.00
    Distance 3: 102.00
    Distance mm: 28.00
    Rotation: CW
    Total length mm: 293.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114676, 01181877, 1181877, 01182386, 1182386, 0001362705

    • Normalised article numbler
      cst10395, drs0789, f032114676, lrs02639, s0847s, 254147, 254312, 254884, 01181877, 1181877, 01182386, 1182386, 0001362705, 11090508, 688031092
