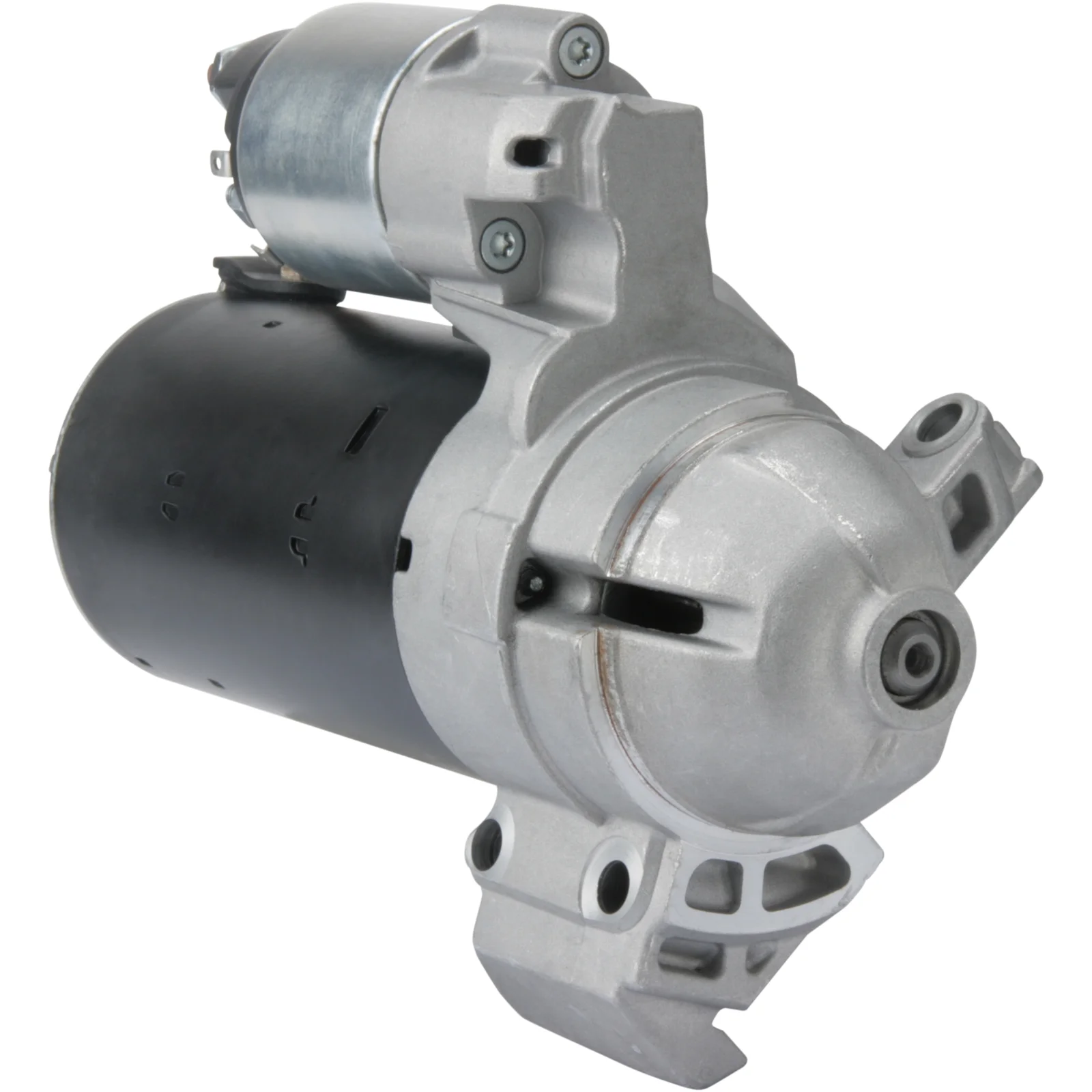

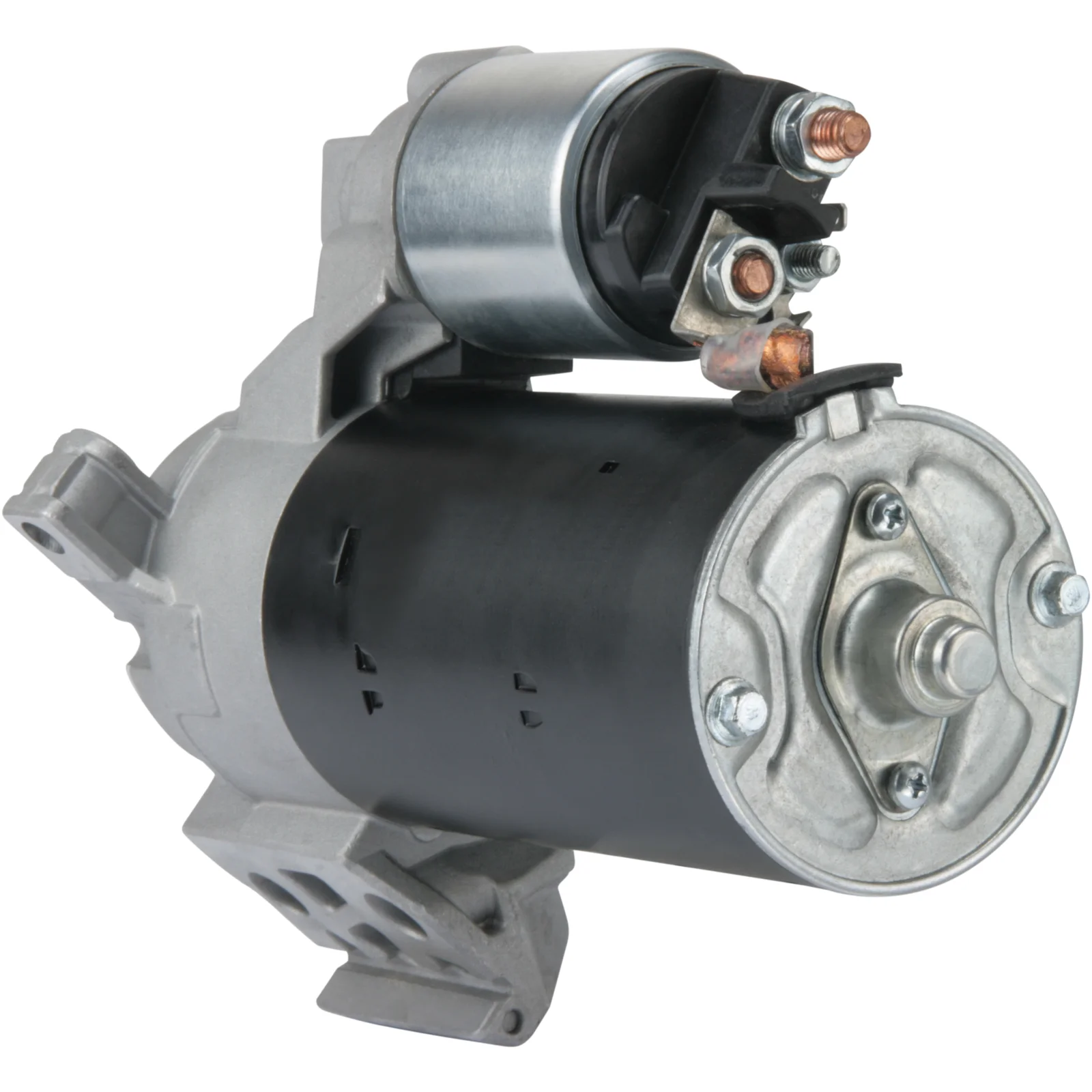

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114689

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mount. flange: 69.00
Drive distance: 5.00
Mount. hole 3 mm: 9.00
Mount. hole 2 mm: 9.00
Mount. hole 1 mm: 9.00
Distance / back: 182.00
Distance / front: 40.00
Number / teeth: 10
B+: M8
Terminal 50: M6
Gear type: GR
Rotation: CW
Total length mm: 240.00
Number / mount. holes: 3 (0)

Files

  • OEM
    cs1466, F032114689, 0001109069, 0001109070, 0001115068, 0001115069, 7802508, 8570238, 8570382, 12417801203, 12417802508, 12417804138, 12417811601, 12418511746, 12418519153, 12418570382

  • Normalised article numbler
    cs1466, cst10431, drs0176, f032114689, les0413, lrs02527, s0292, s0479, 8ea012528571, 8ea738259251, 3191, 30316n, 101466, 106929, 220869, 220869a, 254199, 438574, 458783, 0001109069, 0001109070, 0001115068, 0001115069, 7802508, 8080321, 8570238, 8570382, 11022670, 210537103, 210539113, 315053102, 0986022003, 0986022670, 0986022673, 12417801203, 12417802508, 12417804138, 12417811601, 12418511746, 12418519153, 12418570382
  • Description
    Voltage: 12
    kW: 2.0
    Mount. flange: 69.00
    Drive distance: 5.00
    Mount. hole 3 mm: 9.00
    Mount. hole 2 mm: 9.00
    Mount. hole 1 mm: 9.00
    Distance / back: 182.00
    Distance / front: 40.00
    Number / teeth: 10
    B+: M8
    Terminal 50: M6
    Gear type: GR
    Rotation: CW
    Total length mm: 240.00
    Number / mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1466, F032114689, 0001109069, 0001109070, 0001115068, 0001115069, 7802508, 8570238, 8570382, 12417801203, 12417802508, 12417804138, 12417811601, 12418511746, 12418519153, 12418570382

    • Normalised article numbler
      cs1466, cst10431, drs0176, f032114689, les0413, lrs02527, s0292, s0479, 8ea012528571, 8ea738259251, 3191, 30316n, 101466, 106929, 220869, 220869a, 254199, 438574, 458783, 0001109069, 0001109070, 0001115068, 0001115069, 7802508, 8080321, 8570238, 8570382, 11022670, 210537103, 210539113, 315053102, 0986022003, 0986022670, 0986022673, 12417801203, 12417802508, 12417804138, 12417811601, 12418511746, 12418519153, 12418570382
