HC-Cargo Starter motor

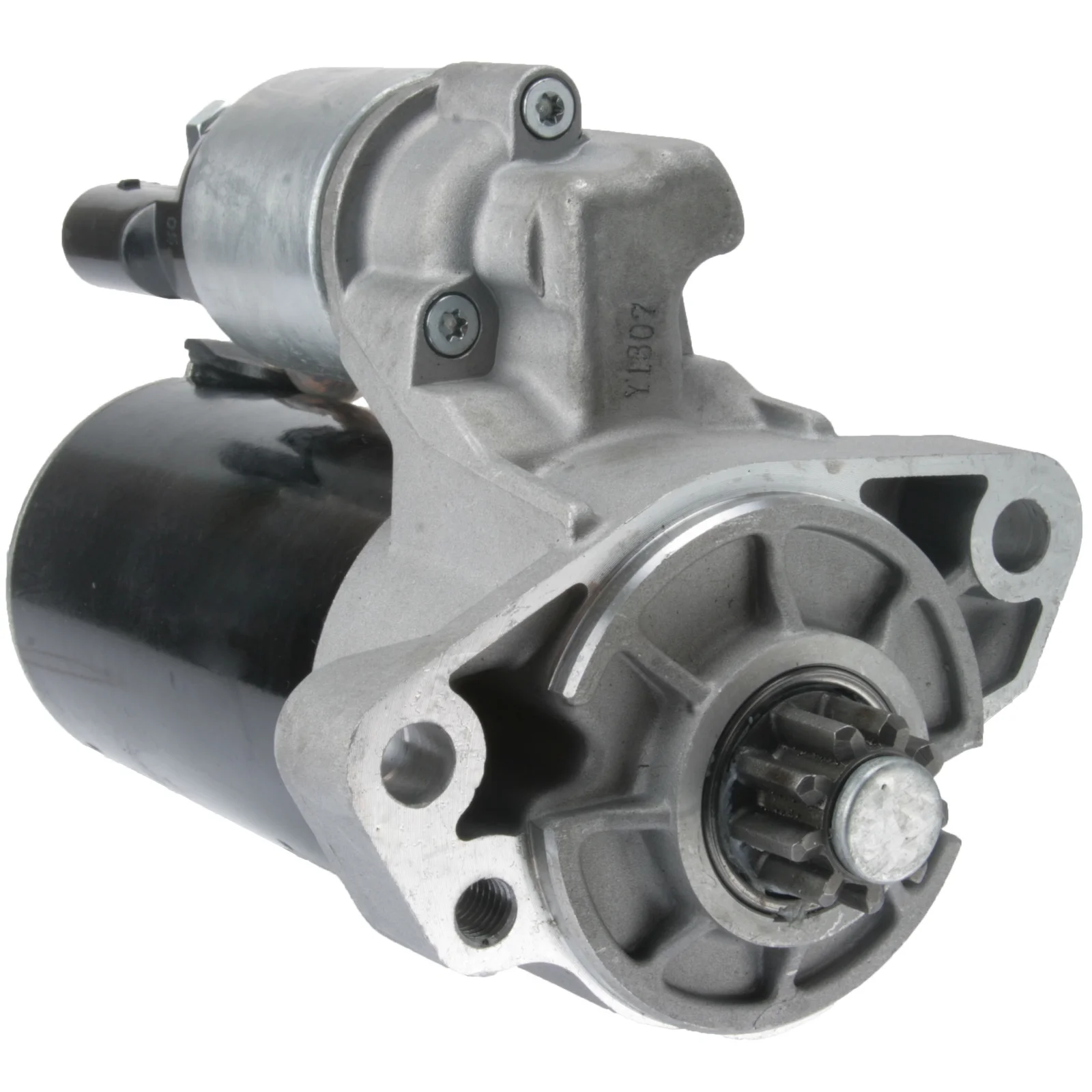

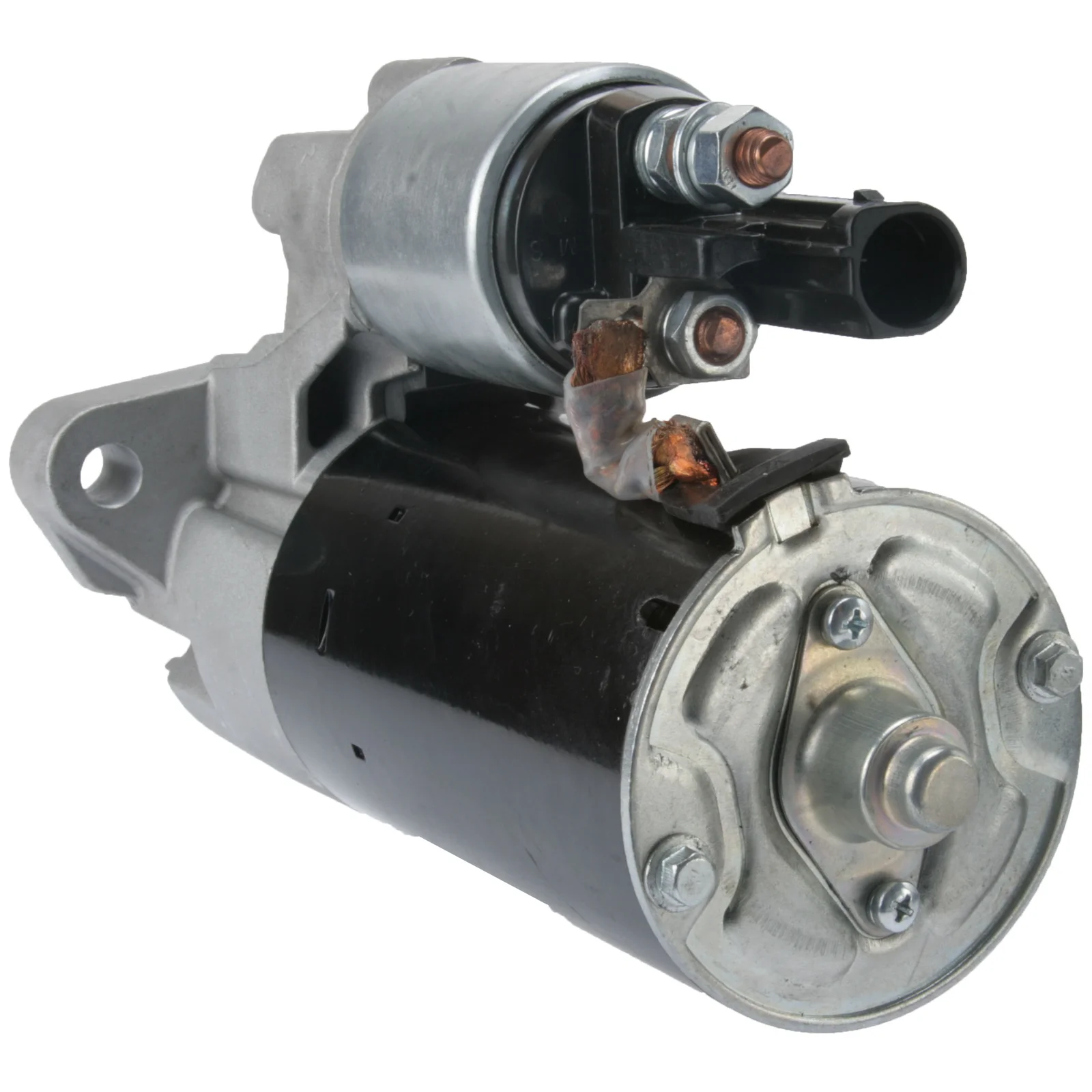

HC-Cargo Starter motor
Article no.: F032114690

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 76.20
Drive distance: 25.00
Mounting hole 3 mm: 10.50
Mounting hole 1 mm: 11.00
Distance / back: 183.00
Distance / front: 28.00
Number / teeth: 9
B+: M8
Position / 50: 15
Terminal 50: 4.80
Gear type: GR
Distance 2: 24.00
Distance 3: 104.50
Distance mm: 101.50
Rotation: CW
Total length mm: 230.00
Number / mounting holes: 3 (1)

Files

  • OEM
    cs1521, F032114690, 1986S00820, 0001125519, 0001125520, 056911024J, 059911023J, 059911023s, 059911023SX, 059911024j, 059911024JX

  • Normalised article numbler
    cs1521, drs0566, f032114690, lrs02330, s0213, s0213pr, s0316, 1986s00820, 3066, 33330, 33330r, 106244, 220683, 220683a, 254002, 254305, 458927, 0001125519, 0001125520, 8080392, 11090174, 42024050, 056911024j, 059911023j, 059911023s, 059911023sx, 059911024j, 059911024jx, 300577093, 311246092
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 76.20
    Drive distance: 25.00
    Mounting hole 3 mm: 10.50
    Mounting hole 1 mm: 11.00
    Distance / back: 183.00
    Distance / front: 28.00
    Number / teeth: 9
    B+: M8
    Position / 50: 15
    Terminal 50: 4.80
    Gear type: GR
    Distance 2: 24.00
    Distance 3: 104.50
    Distance mm: 101.50
    Rotation: CW
    Total length mm: 230.00
    Number / mounting holes: 3 (1)

    Files

  • Suitable for these vehicles

    • OEM
      cs1521, F032114690, 1986S00820, 0001125519, 0001125520, 056911024J, 059911023J, 059911023s, 059911023SX, 059911024j, 059911024JX

    • Normalised article numbler
      cs1521, drs0566, f032114690, lrs02330, s0213, s0213pr, s0316, 1986s00820, 3066, 33330, 33330r, 106244, 220683, 220683a, 254002, 254305, 458927, 0001125519, 0001125520, 8080392, 11090174, 42024050, 056911024j, 059911023j, 059911023s, 059911023sx, 059911024j, 059911024jx, 300577093, 311246092
