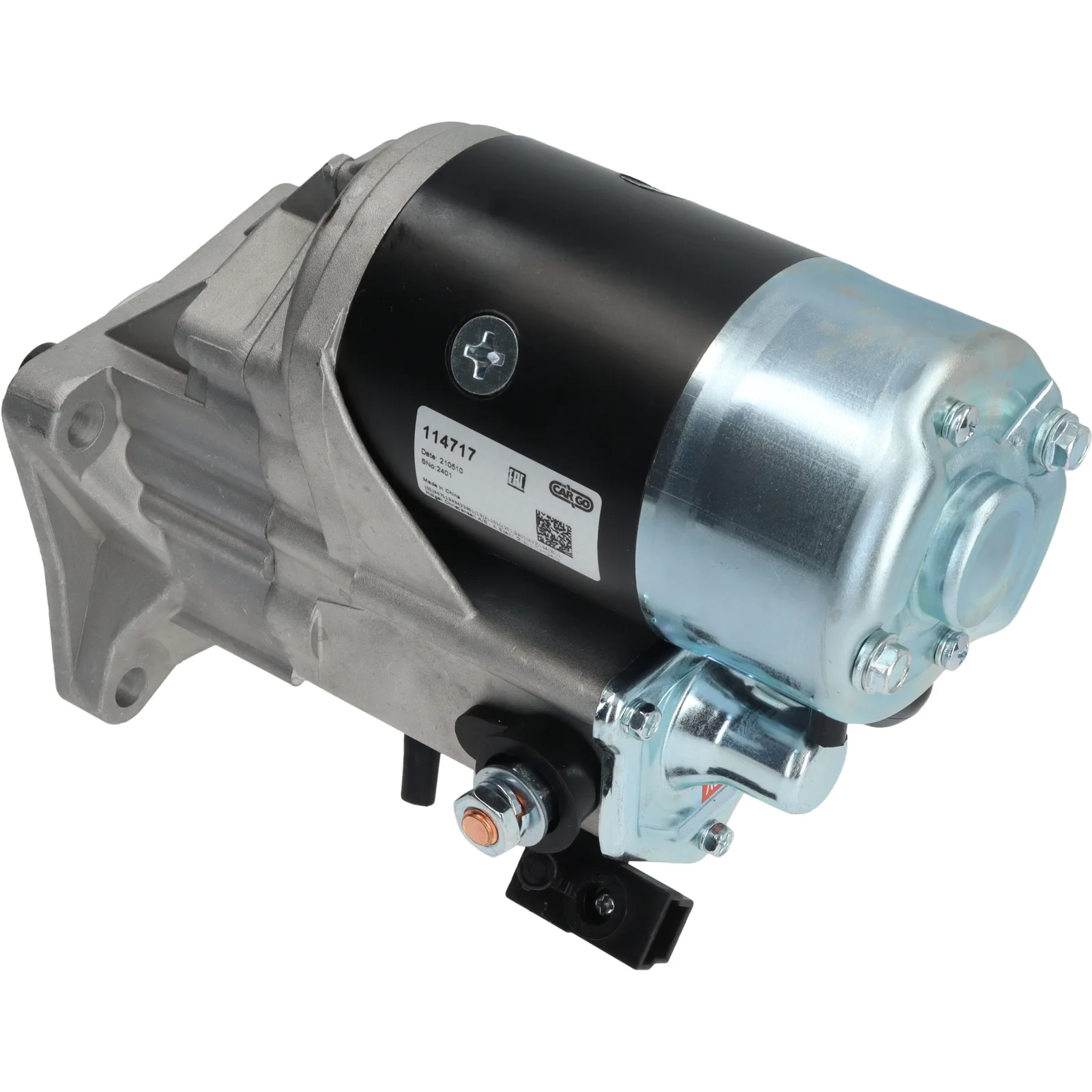

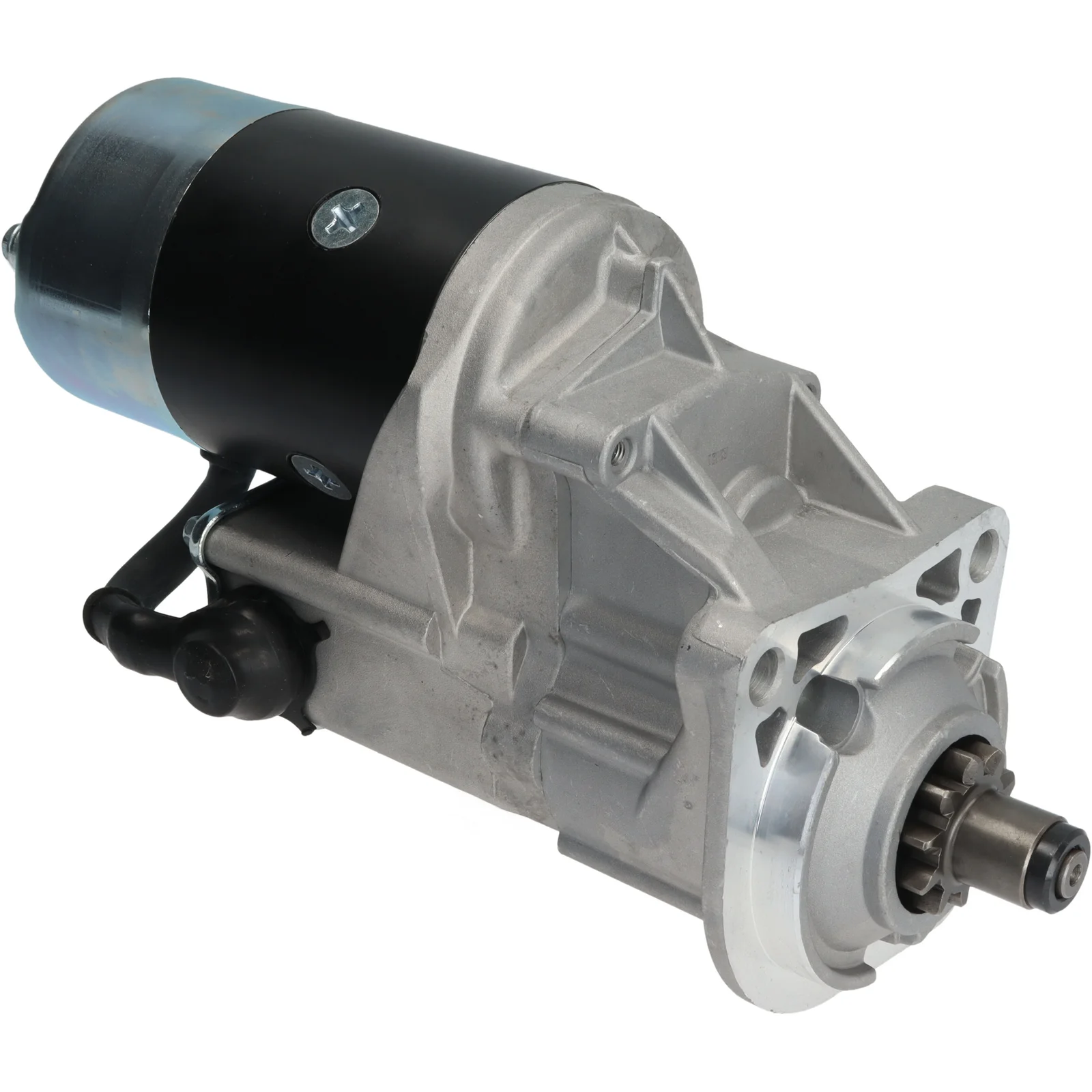

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114717

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.7, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.7
Mount. flange: 89.00
Drive dist.: 30.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./front: 56.00
Number/teeth: 10
B+: M10
Position/B+: 45
Position/50: 37
Gear type: GR
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 298.00
Number/mount. holes: 3 (0)

Files

  • OEM
    F032114717, MP10237, 32A66-02100, 428000-1660

  • Normalised article numbler
    cst40338, dsn2115, f032114717, lrs04229, mp10237, s6288s, 32a6602100, 10705n, 255391, 700020103, 4280001660
  • Description
    Voltage: 12
    kW: 2.7
    Mount. flange: 89.00
    Drive dist.: 30.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./front: 56.00
    Number/teeth: 10
    B+: M10
    Position/B+: 45
    Position/50: 37
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 298.00
    Number/mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114717, MP10237, 32A66-02100, 428000-1660

    • Normalised article numbler
      cst40338, dsn2115, f032114717, lrs04229, mp10237, s6288s, 32a6602100, 10705n, 255391, 700020103, 4280001660
