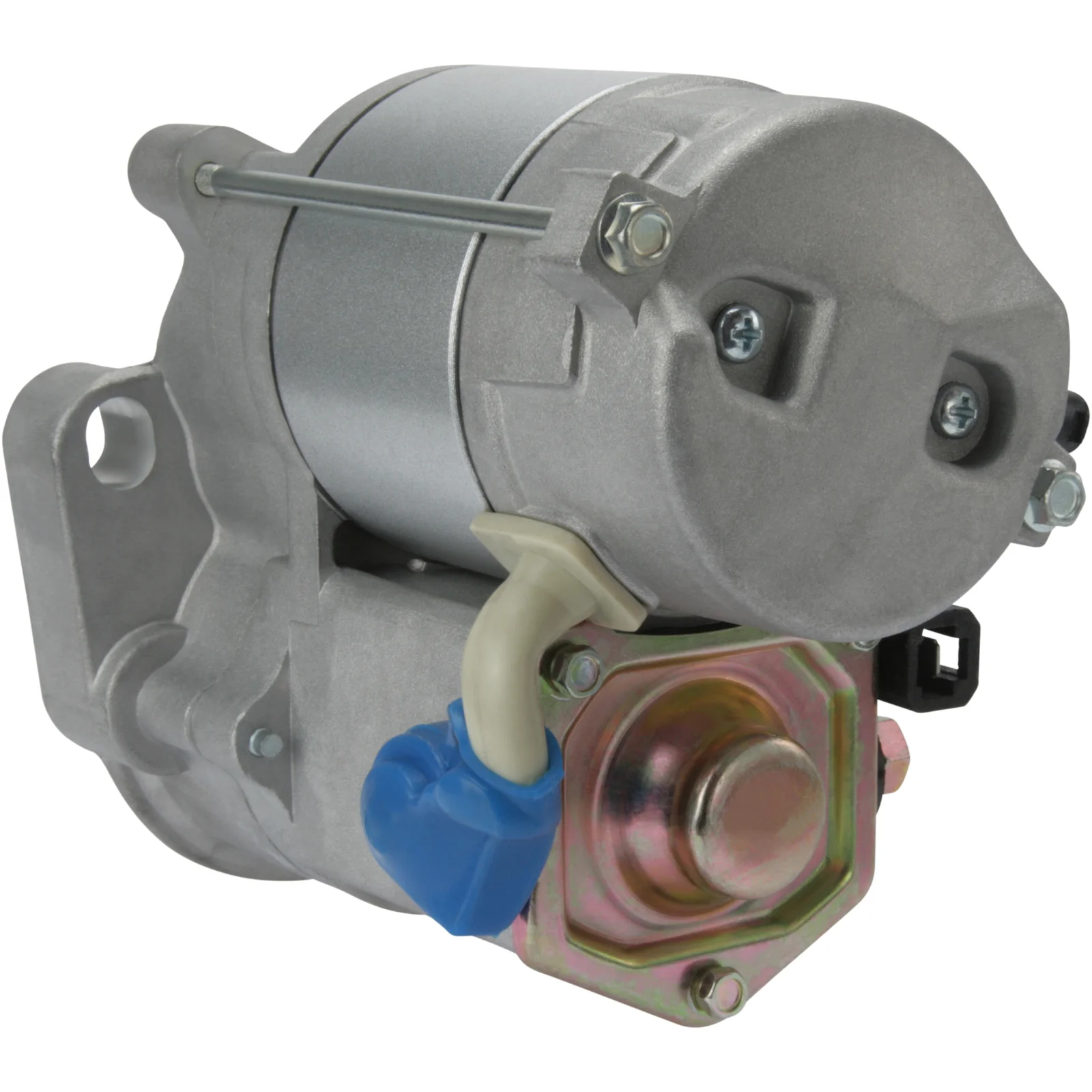

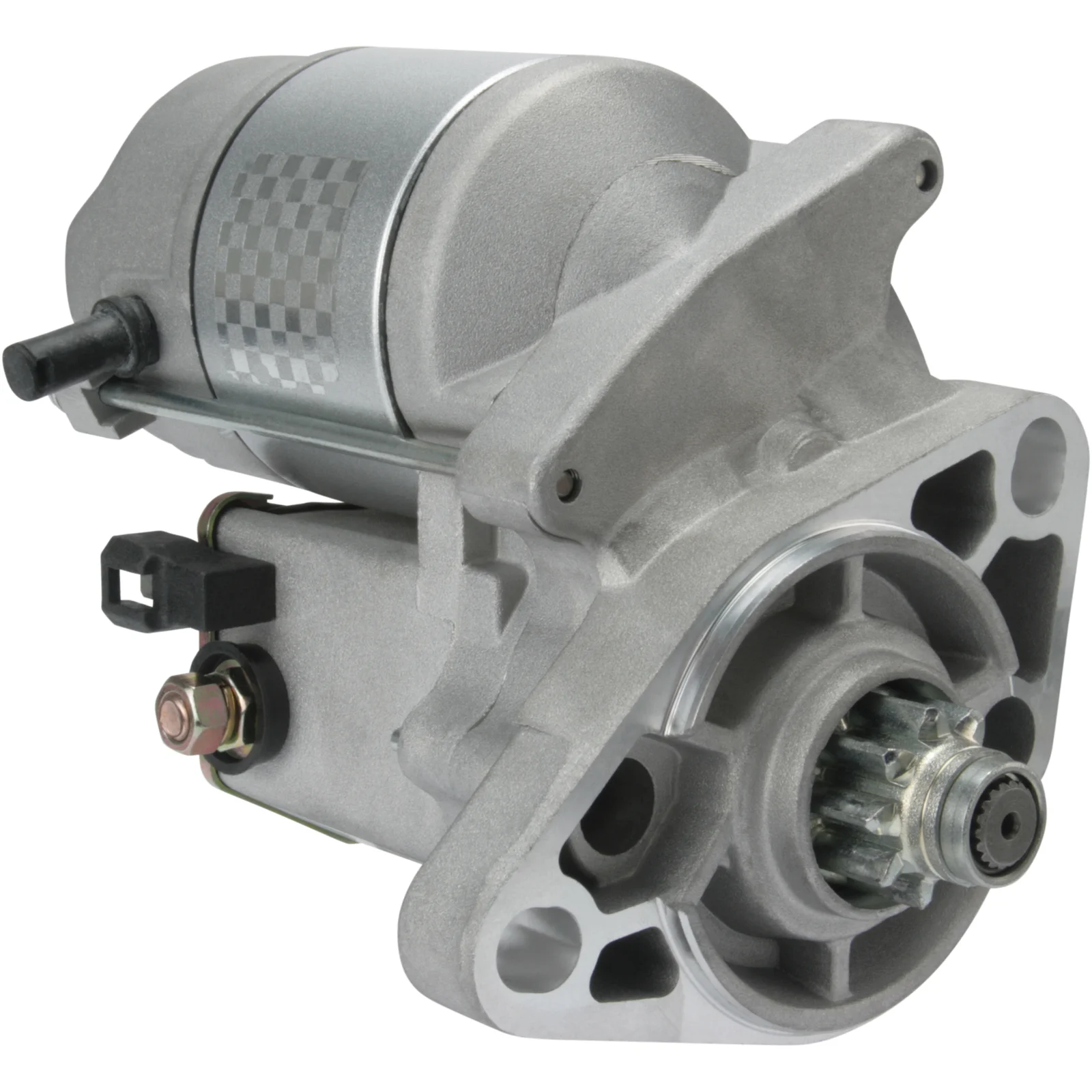

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114718

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 74.00
Drive distance: 19.00
Mounting hole 2 mm: 11.70
Mounting hole 1 mm: 11.70
Distance/ back: 124.00
Distance/ front: 32.50
Number of/teeth: 9
B+: M8
Position/50: 10
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 113.00
Rotation: CW
Total length in millimeters: 188.00
Product info: Reman
Number of/ mounting holes: 2 (0)

Files

  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 74.00
    Drive distance: 19.00
    Mounting hole 2 mm: 11.70
    Mounting hole 1 mm: 11.70
    Distance/ back: 124.00
    Distance/ front: 32.50
    Number of/teeth: 9
    B+: M8
    Position/50: 10
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 113.00
    Rotation: CW
    Total length in millimeters: 188.00
    Product info: Reman
    Number of/ mounting holes: 2 (0)

    Files

  • Suitable for these vehicles
