HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114732

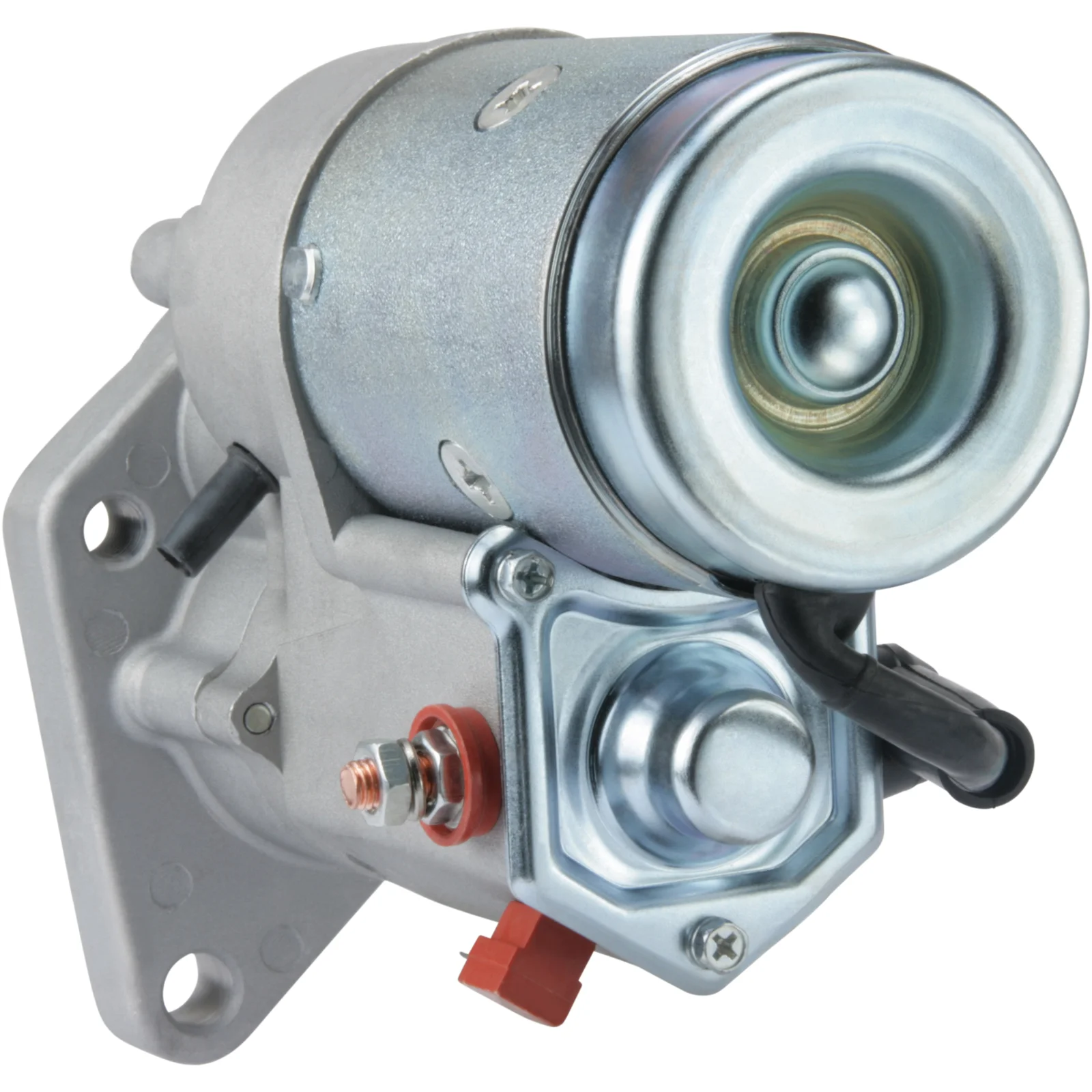

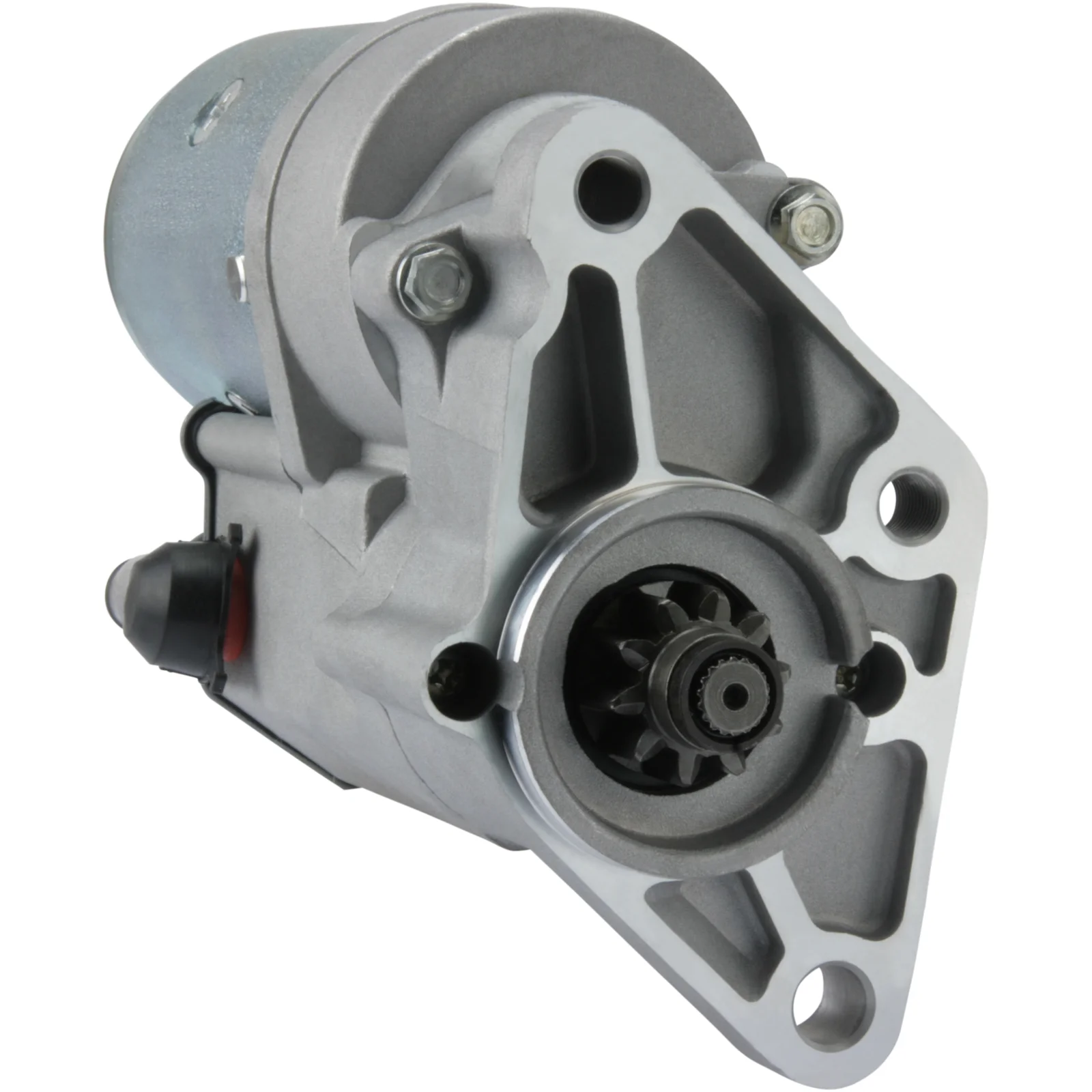

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mount. flange: 64.00
Drive distance: 13.00
Mount. hole 3 mm: M12
Mount. hole 2 mm: 13.20
Distance / back: 159.00
Distance / front: 26.00
Number / teeth: 10
B+: M8
Terminal 50: 6.30
Gear type: GR
Distance 2: 139.50
Distance 3: 74.50
Distance mm: 83.50
Rotation: CW
Total length mm: 237.00
Drive type: Steel
Number / mount. holes: 3 (2)

Files

  • OEM
    cs1446, F032114732, 1986S01286, 03111-4240, 03111-4241, 36100-4X210, 36100-4x211

  • Normalised article numbler
    cs1446, cst32111, drs0147, f032114732, s9085, 8ea012528491, 1986s01286, 33187n, 33187r, 101446, 105502, 220379, 220379a, 253359, 361004x210, 361004x211, 458701, 8212542, 11040707, 031114240, 031114241, 063522616, 624013102, 0986029040, 063522616010
  • Description
    Voltage: 12
    kW: 2.2
    Mount. flange: 64.00
    Drive distance: 13.00
    Mount. hole 3 mm: M12
    Mount. hole 2 mm: 13.20
    Distance / back: 159.00
    Distance / front: 26.00
    Number / teeth: 10
    B+: M8
    Terminal 50: 6.30
    Gear type: GR
    Distance 2: 139.50
    Distance 3: 74.50
    Distance mm: 83.50
    Rotation: CW
    Total length mm: 237.00
    Drive type: Steel
    Number / mount. holes: 3 (2)

    Files

  • Suitable for these vehicles

    • OEM
      cs1446, F032114732, 1986S01286, 03111-4240, 03111-4241, 36100-4X210, 36100-4x211

    • Normalised article numbler
      cs1446, cst32111, drs0147, f032114732, s9085, 8ea012528491, 1986s01286, 33187n, 33187r, 101446, 105502, 220379, 220379a, 253359, 361004x210, 361004x211, 458701, 8212542, 11040707, 031114240, 031114241, 063522616, 624013102, 0986029040, 063522616010
