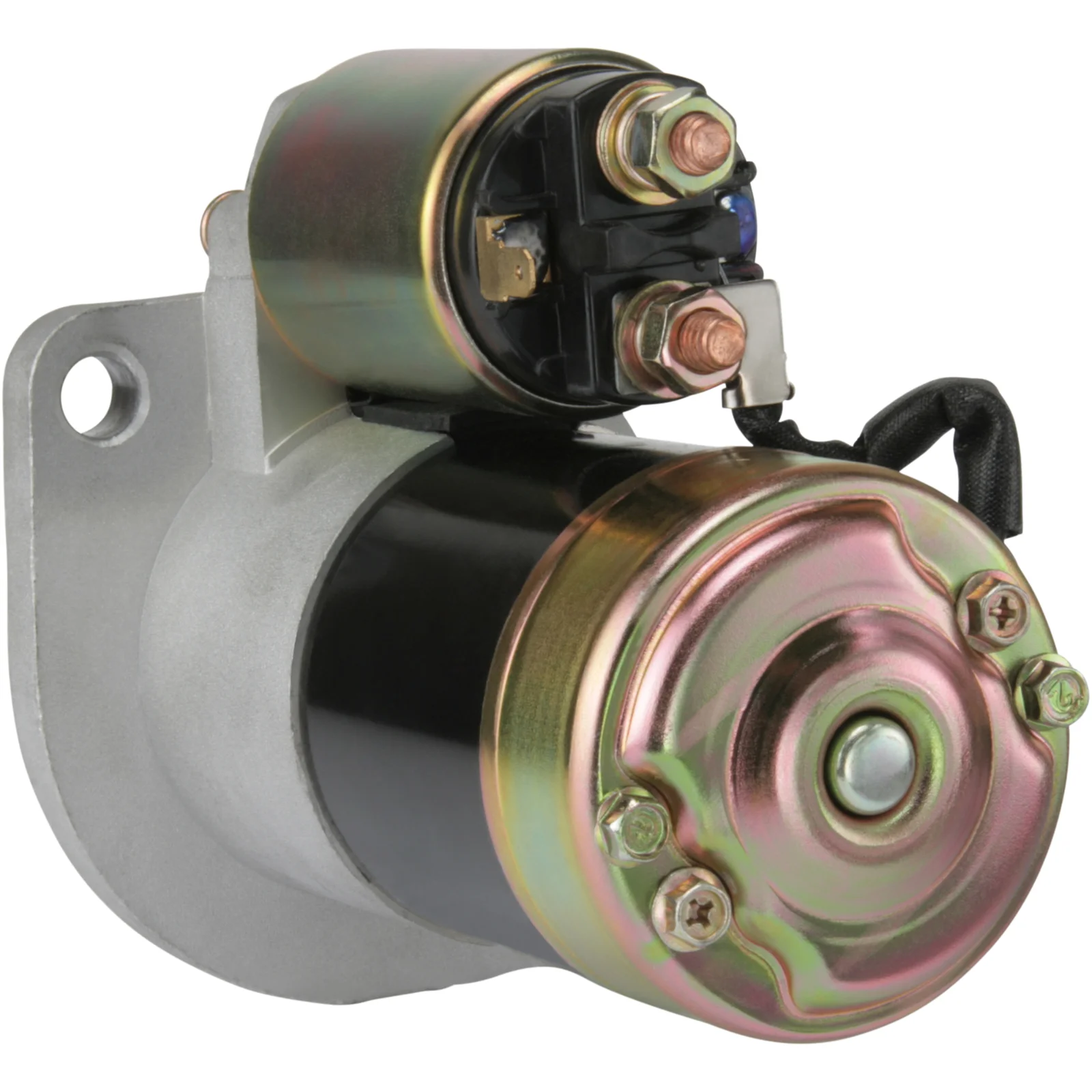

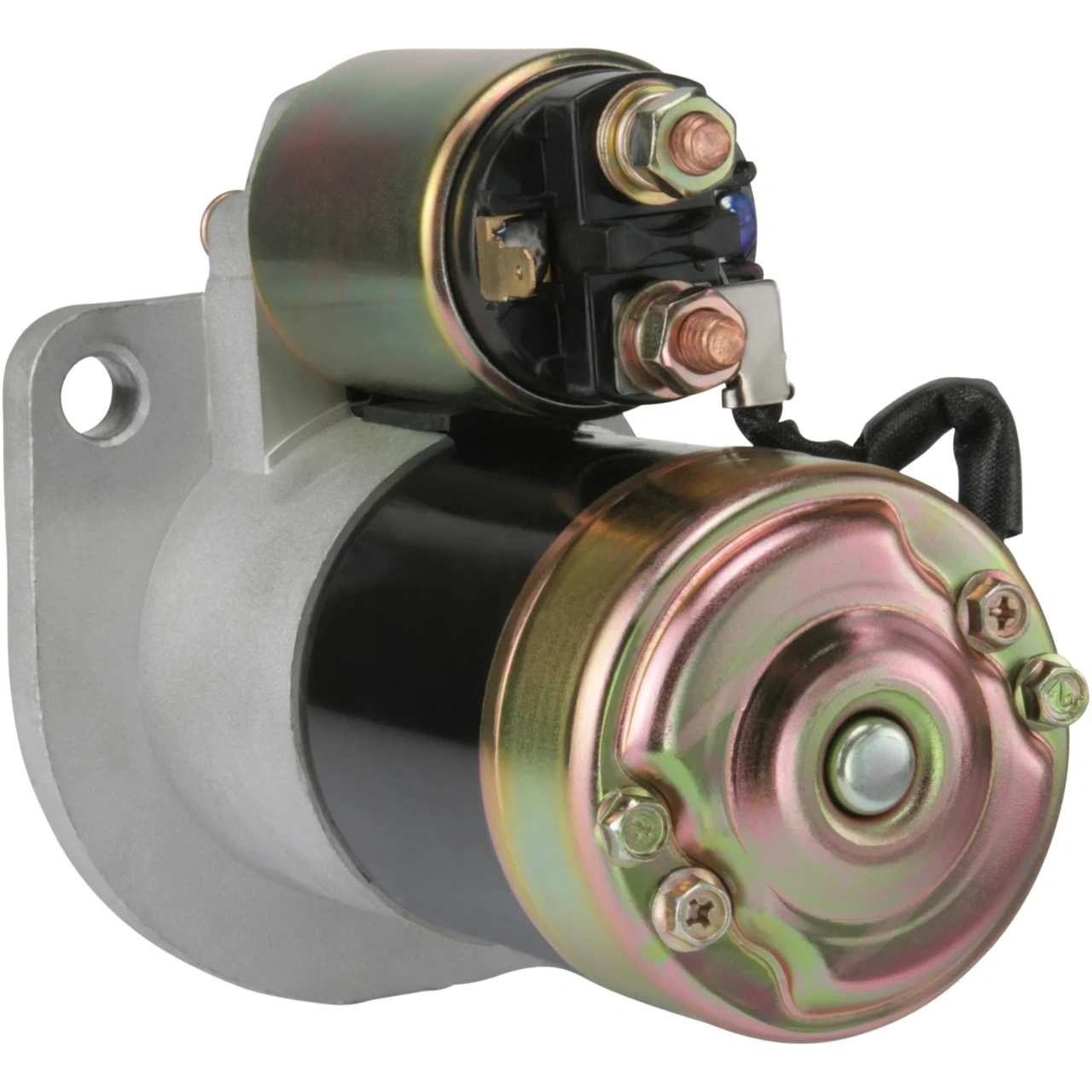

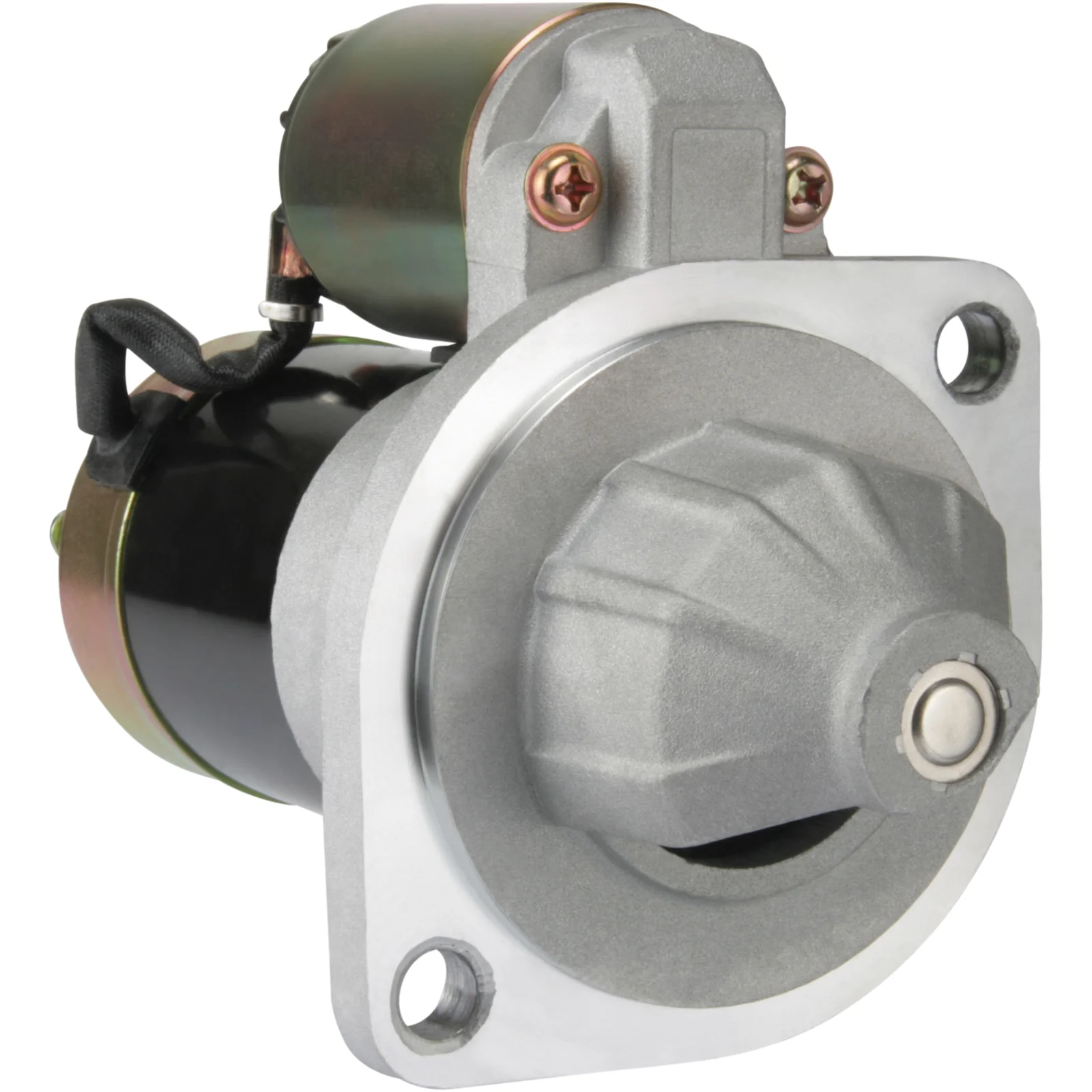

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114739

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.8
Mounting flange: 95.00
Drive distance: 20.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance/ rear: 131.00
Distance/ front: 51.50
Number/ teeth: 9
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: DD
Distance in millimeters: 120.00
Rotation: CW
Total length in millimeters: 188.00
Production info: BN
Number/ mounting holes: 2 (0)

Files

  • OEM
    F032114739, s114-655, s114-655a, S114-655D, 119631-77010, 119631-77011

  • Normalised article numbler
    cst20223, f032114739, lrs01573, s114655, s114655a, s114655d, str72030, 19749n, 253075, 11040700, 11963177010, 11963177011
  • Description
    Voltage: 12
    kW: 0.8
    Mounting flange: 95.00
    Drive distance: 20.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance/ rear: 131.00
    Distance/ front: 51.50
    Number/ teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: DD
    Distance in millimeters: 120.00
    Rotation: CW
    Total length in millimeters: 188.00
    Production info: BN
    Number/ mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114739, s114-655, s114-655a, S114-655D, 119631-77010, 119631-77011

    • Normalised article numbler
      cst20223, f032114739, lrs01573, s114655, s114655a, s114655d, str72030, 19749n, 253075, 11040700, 11963177010, 11963177011
