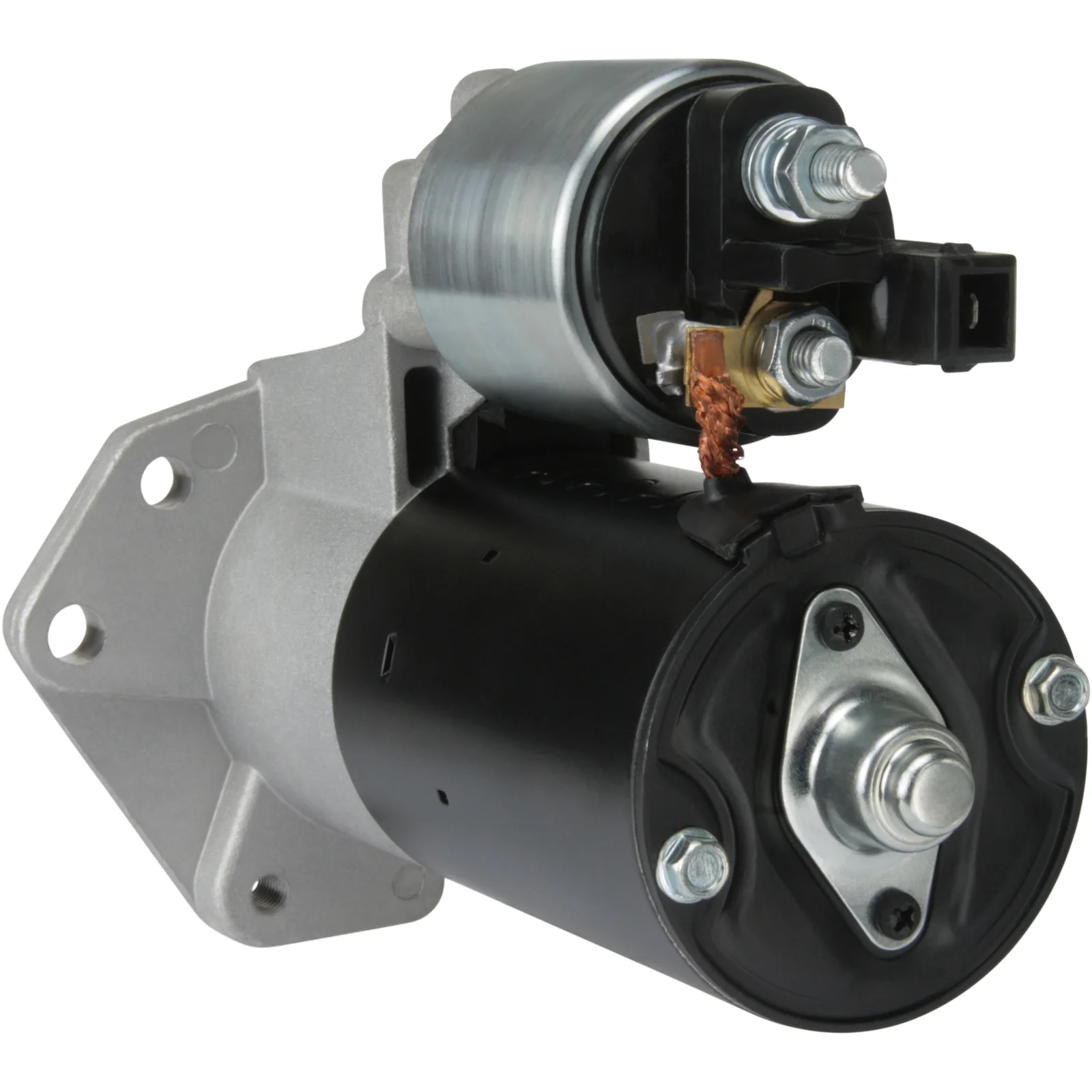

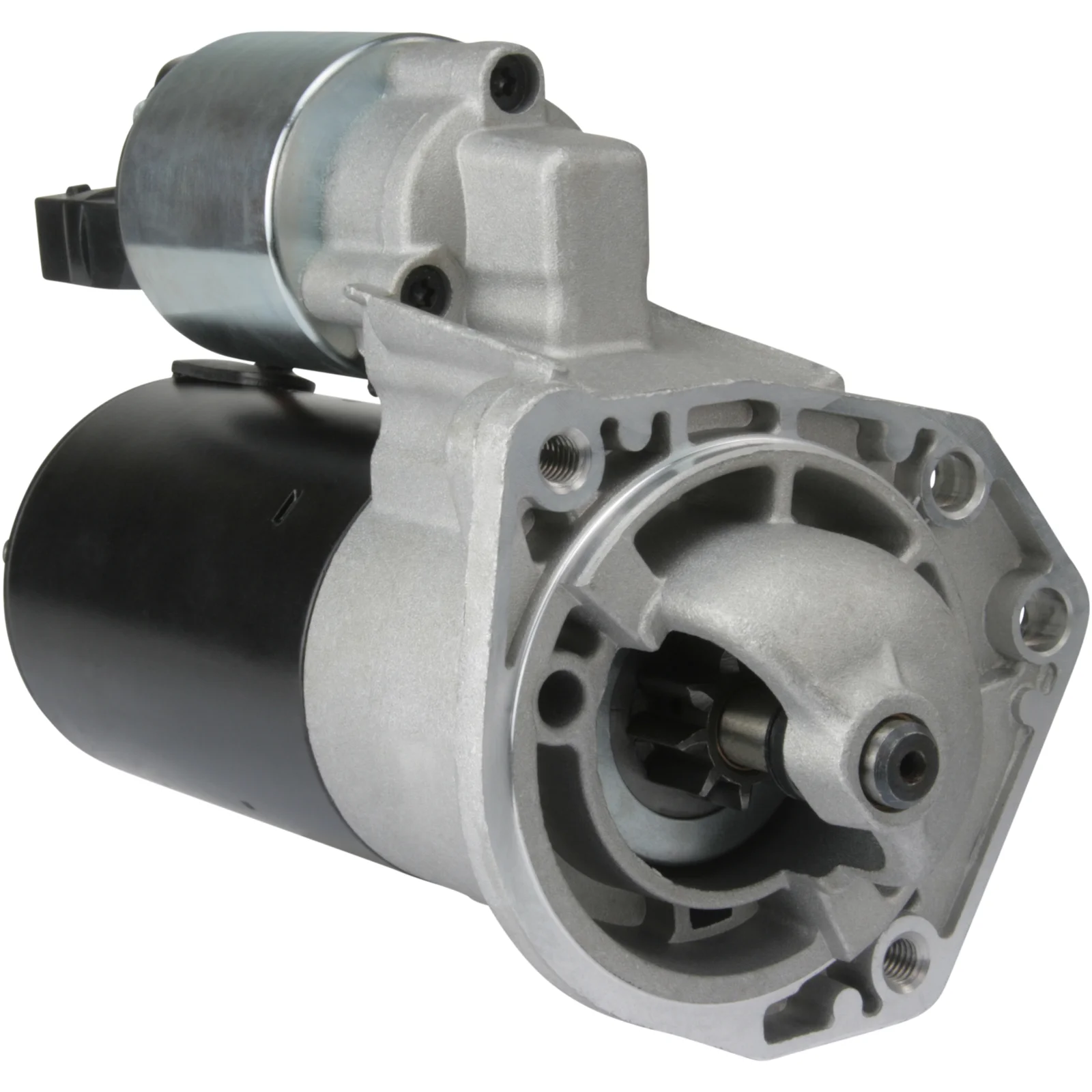

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114758

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.9, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.9
Mounting flange: 82.50
Drive distance: 2.00
Mounting hole 4 mm: M8
Mounting hole 3 mm: M8
Mounting hole 2 mm: 10.00
Mounting hole 1 mm: 9.00
Distance / back: 167.50
Distance / front: 33.50
Number / teeth: 9
B+: M8
Position / 50: 20
Terminal 50: Plug
Gear type: GR
Distance 2: 57.00
Distance 3: 104.00
Distance 4: 73.00
Distance mm: 29.50
Rotation: CW
Total length mm: 217.50
Production info: BN
Info: Bosch version HC-CARGO 113750 Bosch version HC-CARGO 113750. Marelli Version HC-CARGO 114758.
Number / mounting holes: 4 (2)

Files

  • OEM
    cs1548, F032114758, 63223039, 63293039, 085911023e

  • Normalised article numbler
    cs1548, cst10112, cst30188, drs6790, f032114758, s4016pr, s4016sr, 30889r, 252101, 253303, 63223039, 063293039, 63293039, 085911023e, 311089092, 0986019311
  • Description
    Voltage: 12
    kW: 0.9
    Mounting flange: 82.50
    Drive distance: 2.00
    Mounting hole 4 mm: M8
    Mounting hole 3 mm: M8
    Mounting hole 2 mm: 10.00
    Mounting hole 1 mm: 9.00
    Distance / back: 167.50
    Distance / front: 33.50
    Number / teeth: 9
    B+: M8
    Position / 50: 20
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 57.00
    Distance 3: 104.00
    Distance 4: 73.00
    Distance mm: 29.50
    Rotation: CW
    Total length mm: 217.50
    Production info: BN
    Info: Bosch version HC-CARGO 113750 Bosch version HC-CARGO 113750. Marelli Version HC-CARGO 114758.
    Number / mounting holes: 4 (2)

    Files

  • Suitable for these vehicles

    • OEM
      cs1548, F032114758, 63223039, 63293039, 085911023e

    • Normalised article numbler
      cs1548, cst10112, cst30188, drs6790, f032114758, s4016pr, s4016sr, 30889r, 252101, 253303, 63223039, 063293039, 63293039, 085911023e, 311089092, 0986019311
