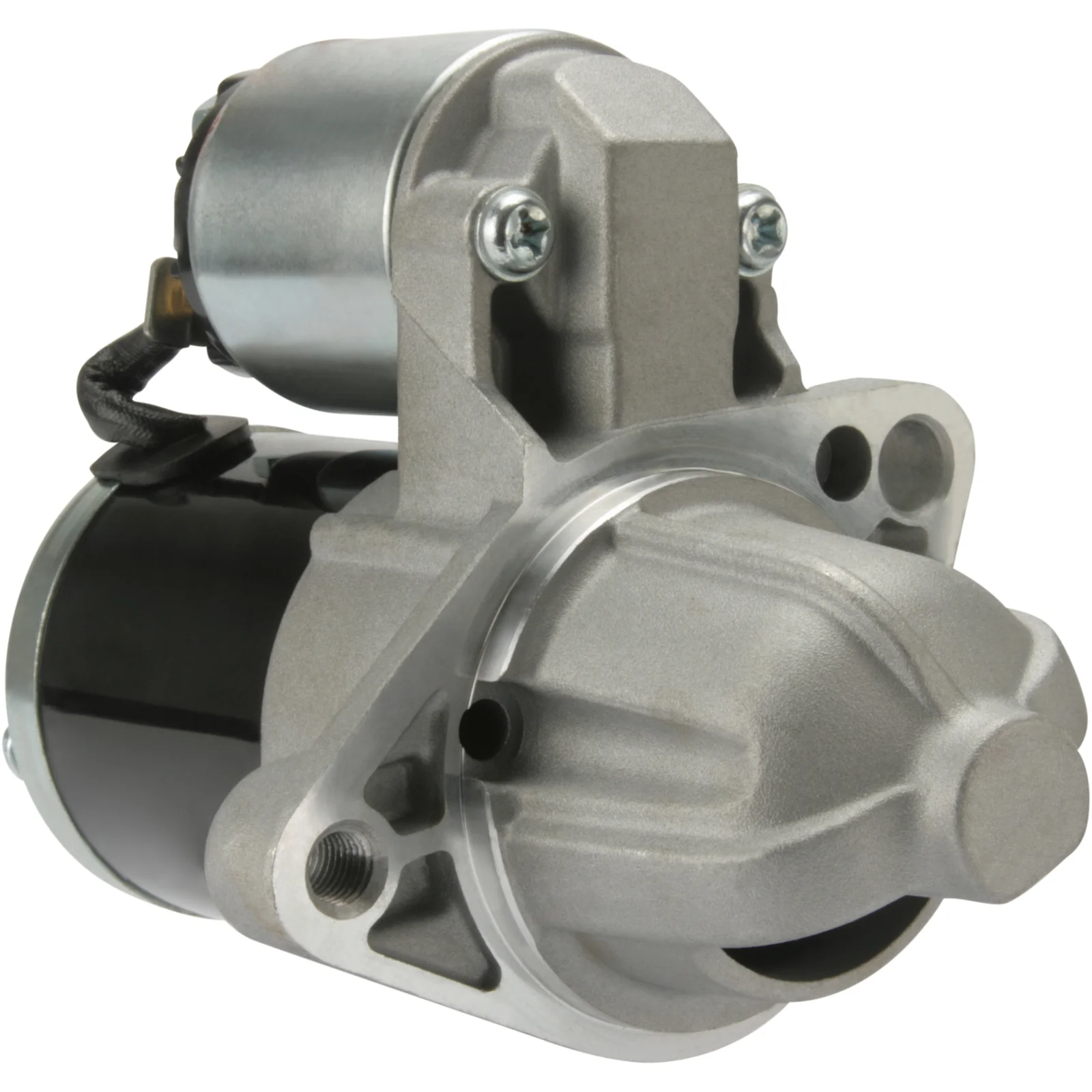

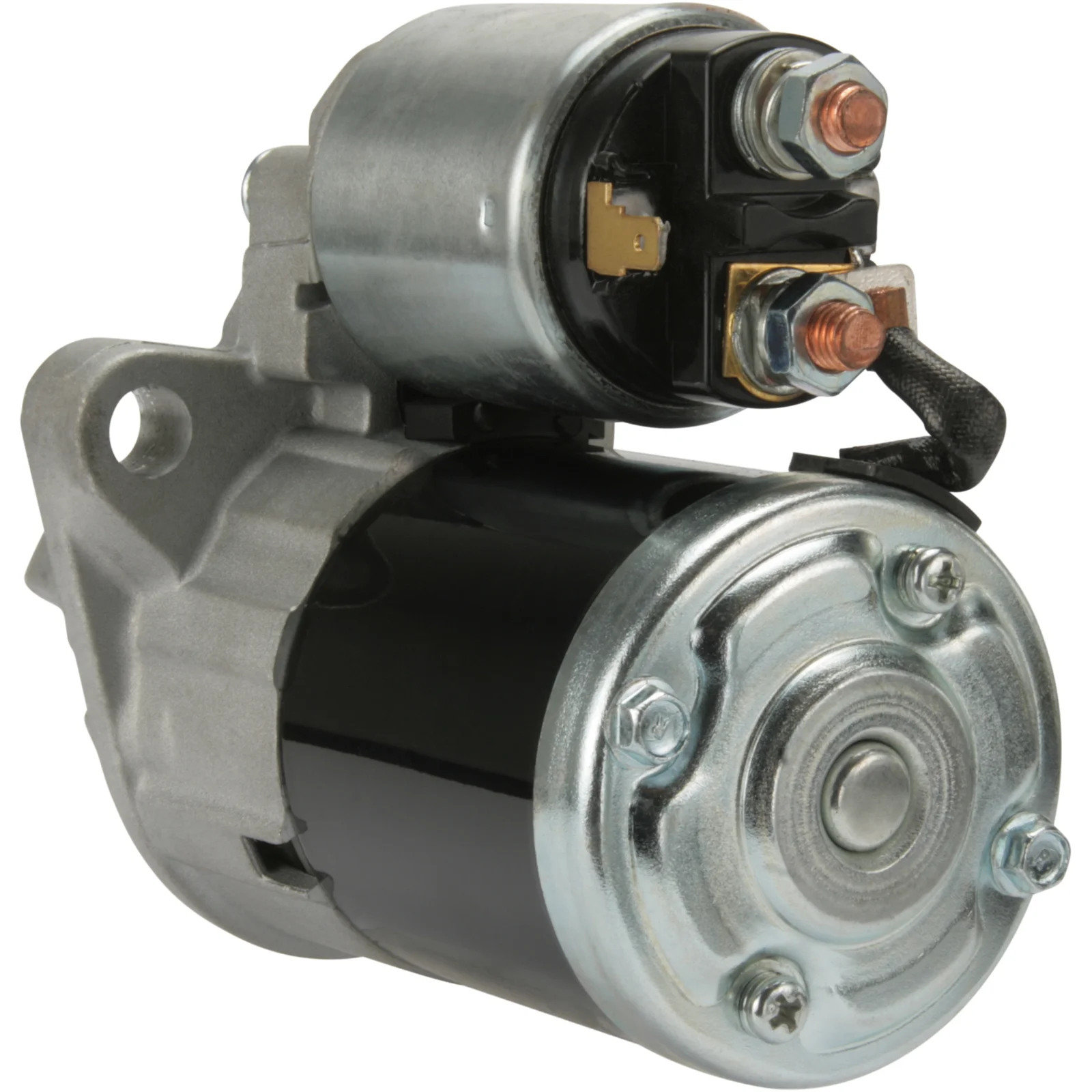

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114761

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 8, Rotation: CW

Description

Voltage: 12
kW: 1.0
Mount. flange: 70.00
Drive dist.: 29.00
Mount. hole 1 mm: 11.50
Dist./back: 116.00
Dist./front: 60.00
No./teeth: 8
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 101.00
Rotation: CW
Total length mm: 176.00
Prod. info: BN
No./mounting holes: 2 (1)

Files

  • OEM
    cs1539, F032114761, M000T33071, M000T33071ZM, M0T33071, M0T33071ZM, 1986S01256, 23300-4a00b, 31100-61M00, 31100-M68K10

  • Normalised article numbler
    cs1539, drs0653, f032114761, lrs02503, m000t33071, m000t33071zm, m0t33071, m0t33071zm, s5198, 8ea011611731, 1986s01256, 31100m68k10, 31245n, 220894, 220894a, 233004a00b, 254175, 254488, 438394, 3110061m00, 11040809, 11040835, 160584082, 345028082, 0986025310
  • Description
    Voltage: 12
    kW: 1.0
    Mount. flange: 70.00
    Drive dist.: 29.00
    Mount. hole 1 mm: 11.50
    Dist./back: 116.00
    Dist./front: 60.00
    No./teeth: 8
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 101.00
    Rotation: CW
    Total length mm: 176.00
    Prod. info: BN
    No./mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      cs1539, F032114761, M000T33071, M000T33071ZM, M0T33071, M0T33071ZM, 1986S01256, 23300-4a00b, 31100-61M00, 31100-M68K10

    • Normalised article numbler
      cs1539, drs0653, f032114761, lrs02503, m000t33071, m000t33071zm, m0t33071, m0t33071zm, s5198, 8ea011611731, 1986s01256, 31100m68k10, 31245n, 220894, 220894a, 233004a00b, 254175, 254488, 438394, 3110061m00, 11040809, 11040835, 160584082, 345028082, 0986025310
