Article no.: F032114818

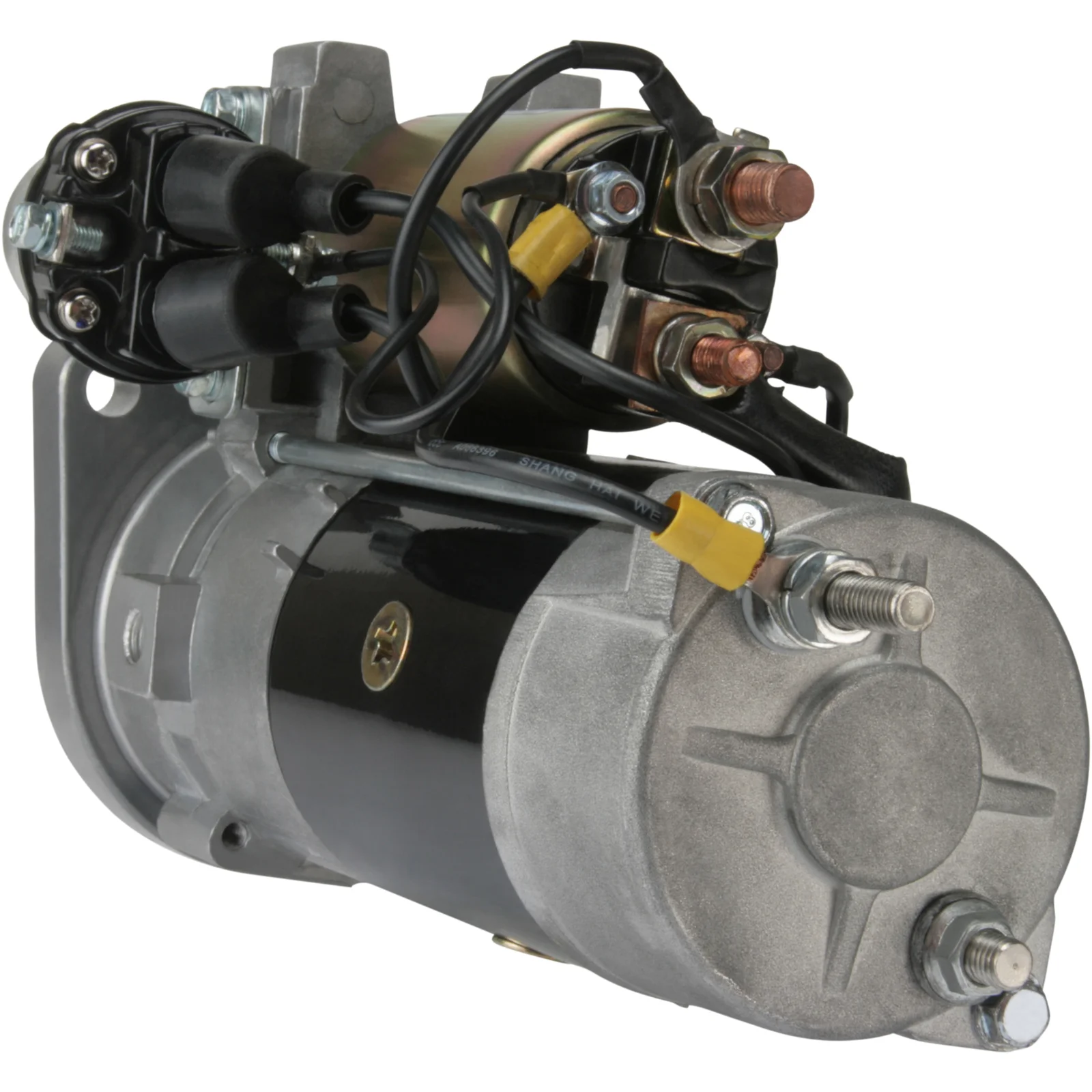

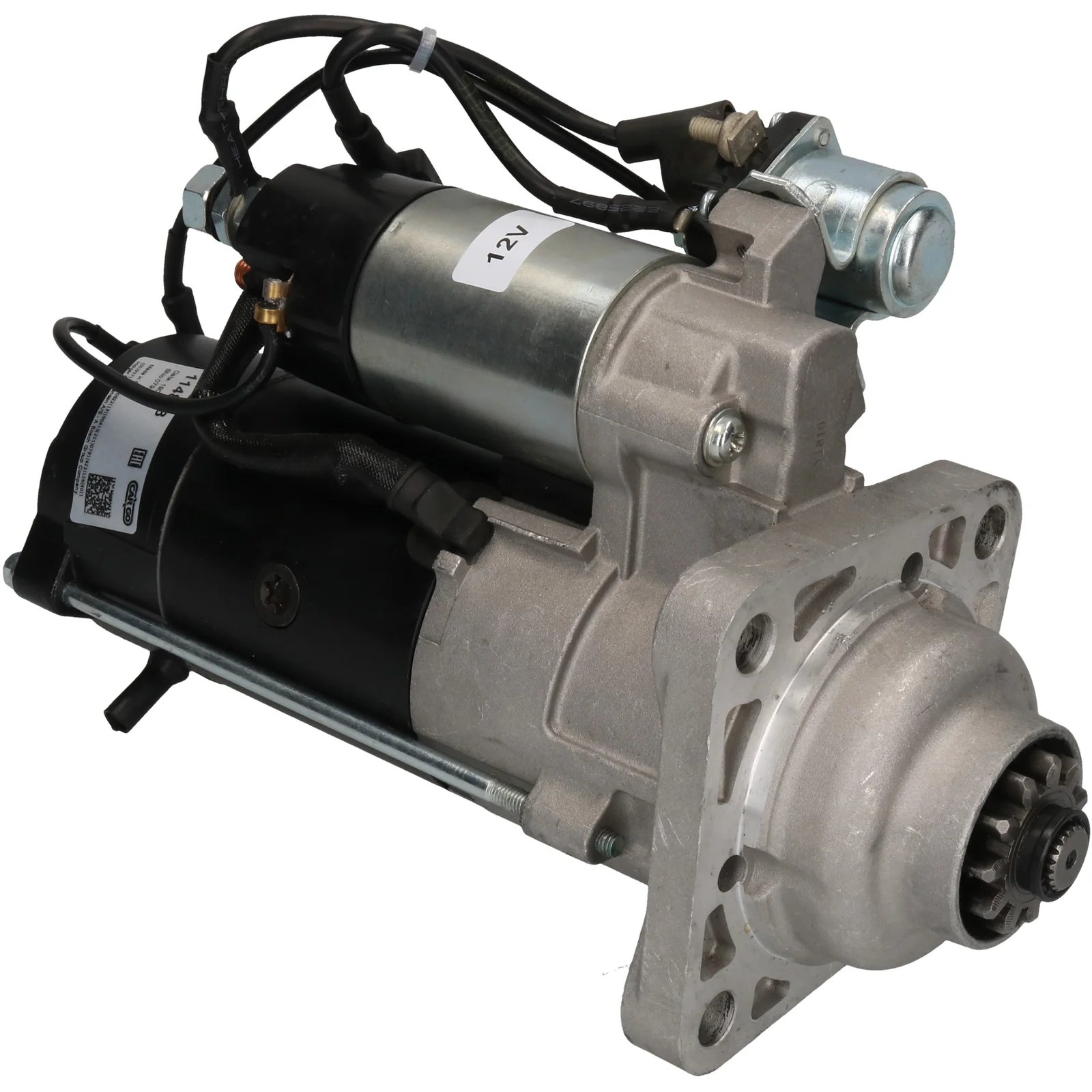

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.6, No./teeth: 11, Rotation: CW

Description

Start 12V-3.6kW fits Penta 12V - 3.6kW, 11k, insulated A - 89mm, B - 48mm, The End cover mounting bracket = 11.5 mm Alternative: 91-605-5579 (13mm mounting holes) For Yourrex product order 91-605-8555

Voltage: 12
kW: 3.6
Insulated return: Yes
Mounting flange: 89.00
Drive distance: 47.50
Mounting hole 3 mm: 13.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 235.00
Distance / front: 54.00
Number / teeth: 11
B+: M10
Position / B+: 7
Thread length mm: 22.00
Terminal 50: M5
Gear type: GR
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Position / B-: 50
B-: M8
Total length mm: 314.00
Product info: BN
Number / mounting holes: 3 (0)
  • OEM

    F032114818, M008T55578, M008T55579, M008T55779, M8T-55578, M8T55578, M8T55579, M8T55779, M8T55779AM, 874501, 3588491, 3594614, 3801296, 3803938, 3841359, 21423438, 21423488
  • Normalised article numbler

    cst35210, drs0545, f032114818, lrs02636, m008t55578, m008t55579, m008t55779, m8t55578, m8t55579, m8t55779, m8t55779am, mitm8t55779, s5302s, s5395s, 30626n, 31502n, 220553, 220553a, 254309, 254537, 254699, 255179, 874501, 3588491, 3594614, 3801296, 3803938, 3841359, 11040931, 21423438, 21423488, 638057112, 810532113
  • Description
    Start 12V-3.6kW fits Penta 12V - 3.6kW, 11k, insulated A - 89mm, B - 48mm, The End cover mounting bracket = 11.5 mm Alternative: 91-605-5579 (13mm mounting holes) For Yourrex product order 91-605-8555

    Voltage: 12
    kW: 3.6
    Insulated return: Yes
    Mounting flange: 89.00
    Drive distance: 47.50
    Mounting hole 3 mm: 13.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 235.00
    Distance / front: 54.00
    Number / teeth: 11
    B+: M10
    Position / B+: 7
    Thread length mm: 22.00
    Terminal 50: M5
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Position / B-: 50
    B-: M8
    Total length mm: 314.00
    Product info: BN
    Number / mounting holes: 3 (0)
  • Suitable for these vehicles
    • OEM

      F032114818, M008T55578, M008T55579, M008T55779, M8T-55578, M8T55578, M8T55579, M8T55779, M8T55779AM, 874501, 3588491, 3594614, 3801296, 3803938, 3841359, 21423438, 21423488
    • Normalised article numbler

      cst35210, drs0545, f032114818, lrs02636, m008t55578, m008t55579, m008t55779, m8t55578, m8t55579, m8t55779, m8t55779am, mitm8t55779, s5302s, s5395s, 30626n, 31502n, 220553, 220553a, 254309, 254537, 254699, 255179, 874501, 3588491, 3594614, 3801296, 3803938, 3841359, 11040931, 21423438, 21423488, 638057112, 810532113
