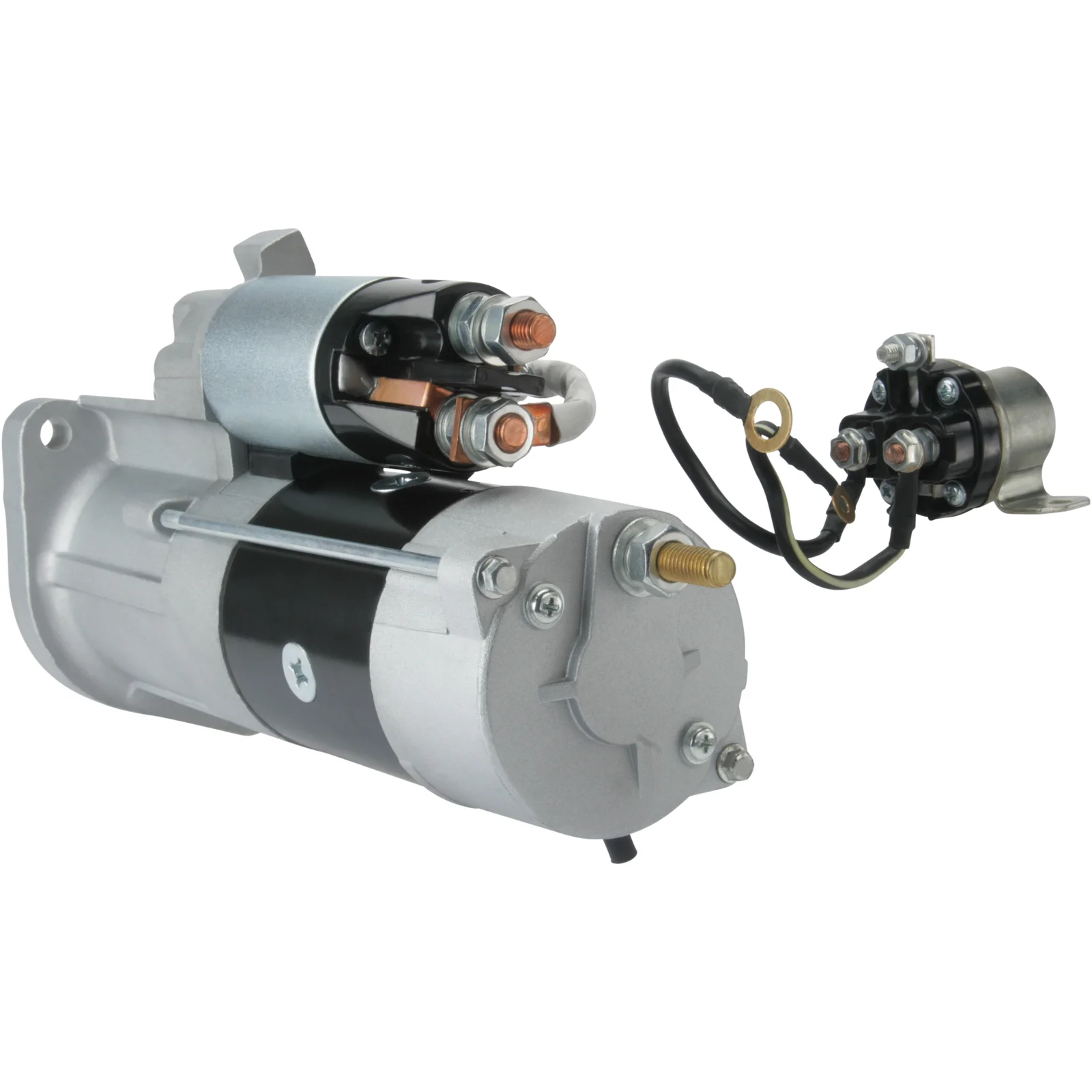

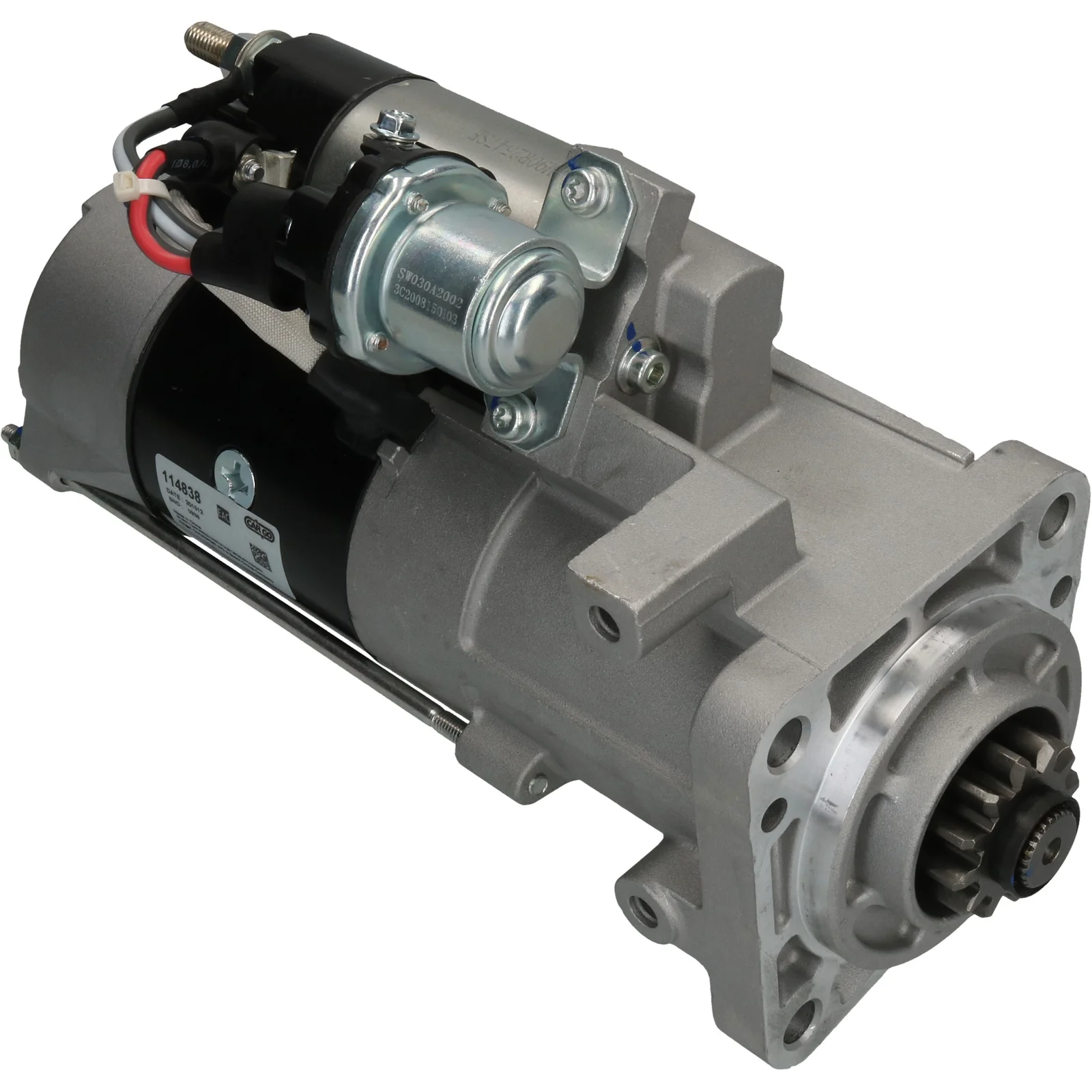

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114838

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 4.5, No./teeth: 12, Rotation: CW

Description

Voltage: 12
kW: 4.5
Mounting flange: 89.00
Drive distance: 27.50
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 286.00
Distance / front: 34.00
Number / teeth: 12
B+: M10
Position / B+: 60
Position / 50: 15
Terminal 50: M5
Gear type: GR
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Total length mm: 328.00
Prod. info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    F032114838, F934900060010, M009t50471, m9t50471, 01182761, 1182761

  • Normalised article numbler
    cst35272, drs0776, f032114838, f934900060010, m009t50471, m9t50471, mitm9t50471, s5207, 220861, 220861a, 01182761, 1182761, 11040852
  • Description
    Voltage: 12
    kW: 4.5
    Mounting flange: 89.00
    Drive distance: 27.50
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 286.00
    Distance / front: 34.00
    Number / teeth: 12
    B+: M10
    Position / B+: 60
    Position / 50: 15
    Terminal 50: M5
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 328.00
    Prod. info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114838, F934900060010, M009t50471, m9t50471, 01182761, 1182761

    • Normalised article numbler
      cst35272, drs0776, f032114838, f934900060010, m009t50471, m9t50471, mitm9t50471, s5207, 220861, 220861a, 01182761, 1182761, 11040852
