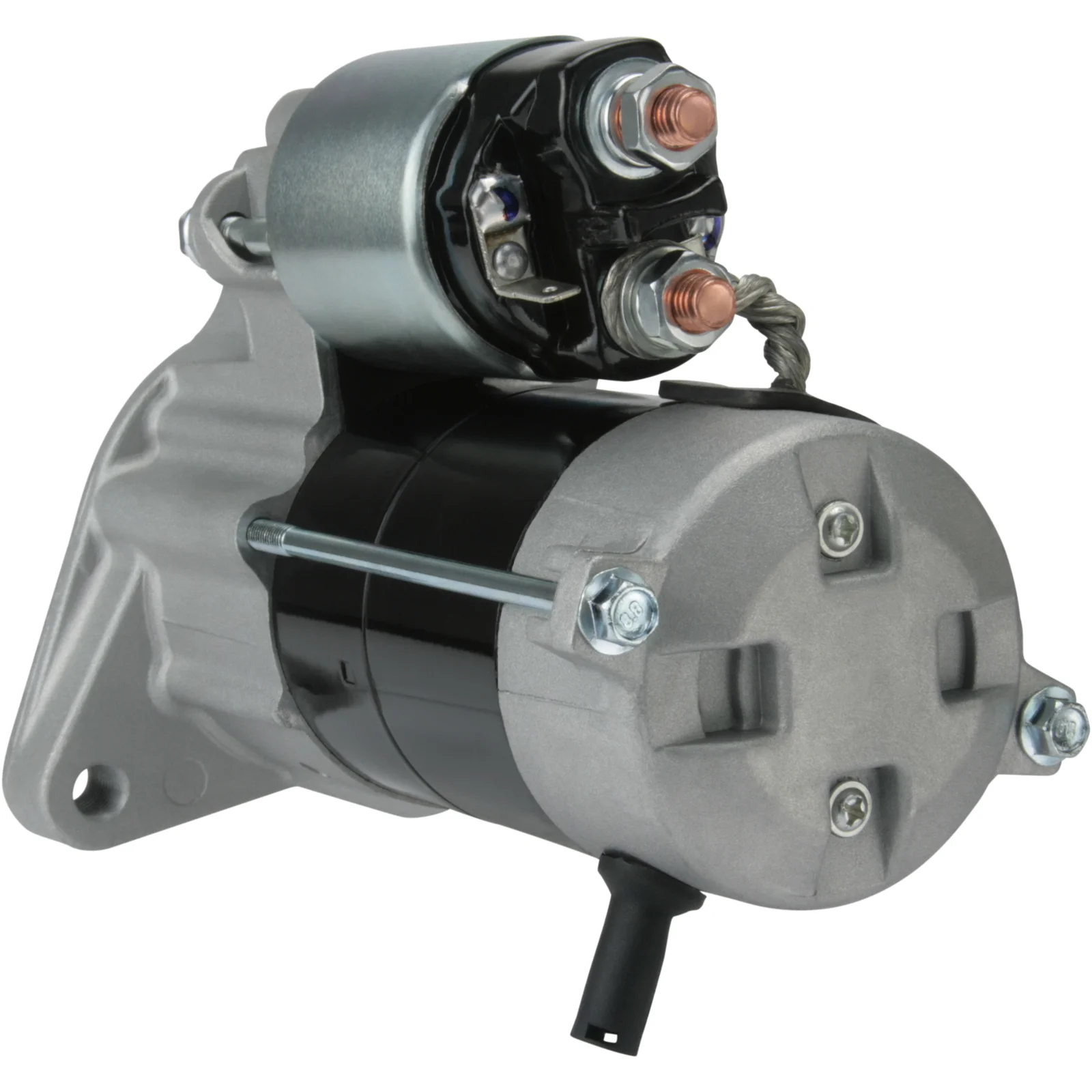

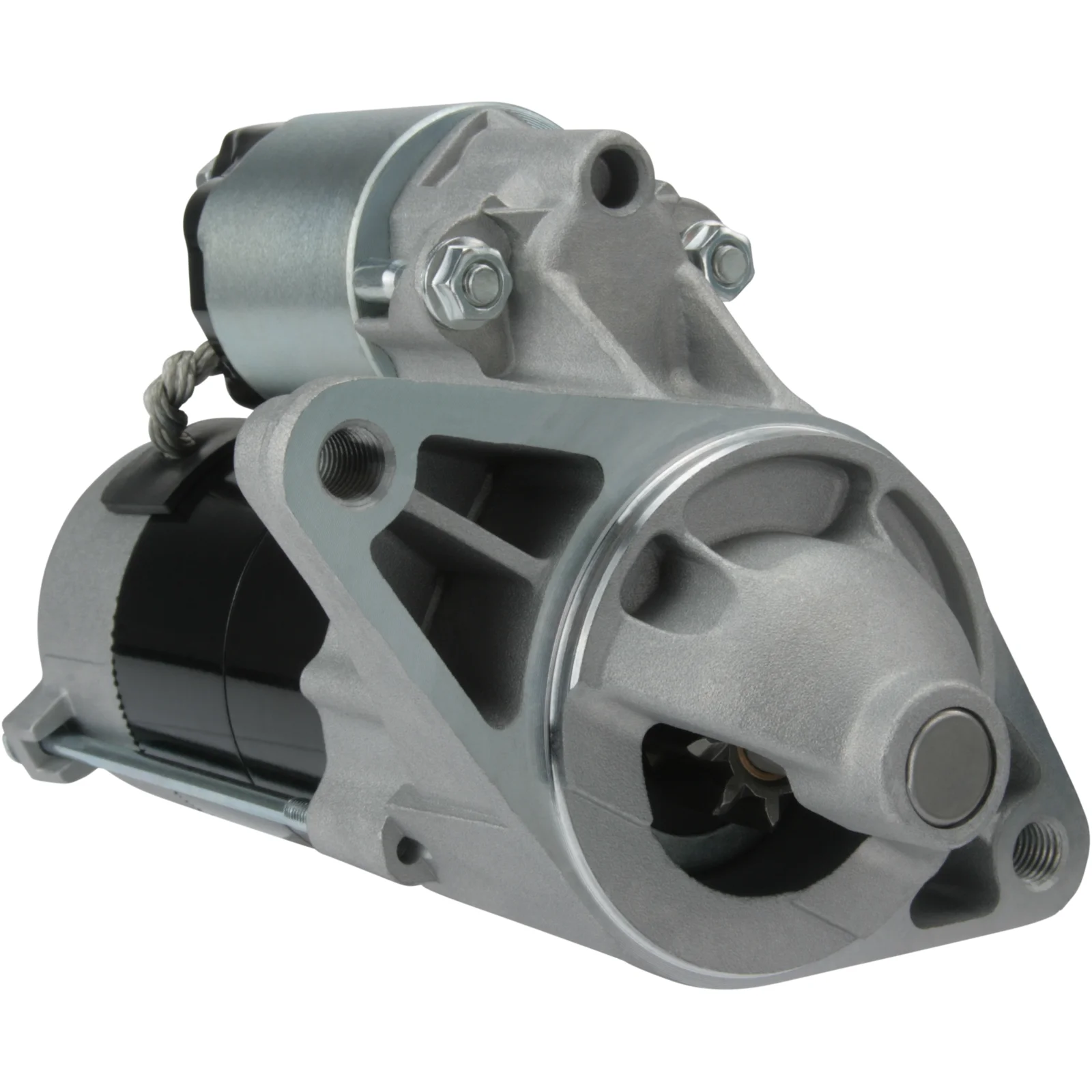

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114851

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 8, Rotation: CW

Description

Voltage: 12
kW: 0.8
Mounting flange: 74.00
Drive distance: 4.00
Distance/back: 164.00
Distance/front: 37.00
Number of/teeth: 8
B+: M8
Position/50: 40
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 132.00
Rotation: CW
Total length in millimeters: 202.00
Production info: BN
Number of/mounting holes: 2 (2)

Files

  • OEM
    cs1523, F032114851, 1986S01086, 28100-87548, 28100-87551, 28100-87551-000, 228000-5710

  • Normalised article numbler
    cs1523, cst40241, drs0219, drs3213, f032114851, j5216029, lrs02285, s6163, 1986s01086, 3234, 33285n, 107150, 220209, 220209a, 253456, 11040737, 190583092, 317030082, 0986029200, 2280005710, 2810087548, 2810087551, 2810087551000
  • Description
    Voltage: 12
    kW: 0.8
    Mounting flange: 74.00
    Drive distance: 4.00
    Distance/back: 164.00
    Distance/front: 37.00
    Number of/teeth: 8
    B+: M8
    Position/50: 40
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 132.00
    Rotation: CW
    Total length in millimeters: 202.00
    Production info: BN
    Number of/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      cs1523, F032114851, 1986S01086, 28100-87548, 28100-87551, 28100-87551-000, 228000-5710

    • Normalised article numbler
      cs1523, cst40241, drs0219, drs3213, f032114851, j5216029, lrs02285, s6163, 1986s01086, 3234, 33285n, 107150, 220209, 220209a, 253456, 11040737, 190583092, 317030082, 0986029200, 2280005710, 2810087548, 2810087551, 2810087551000
