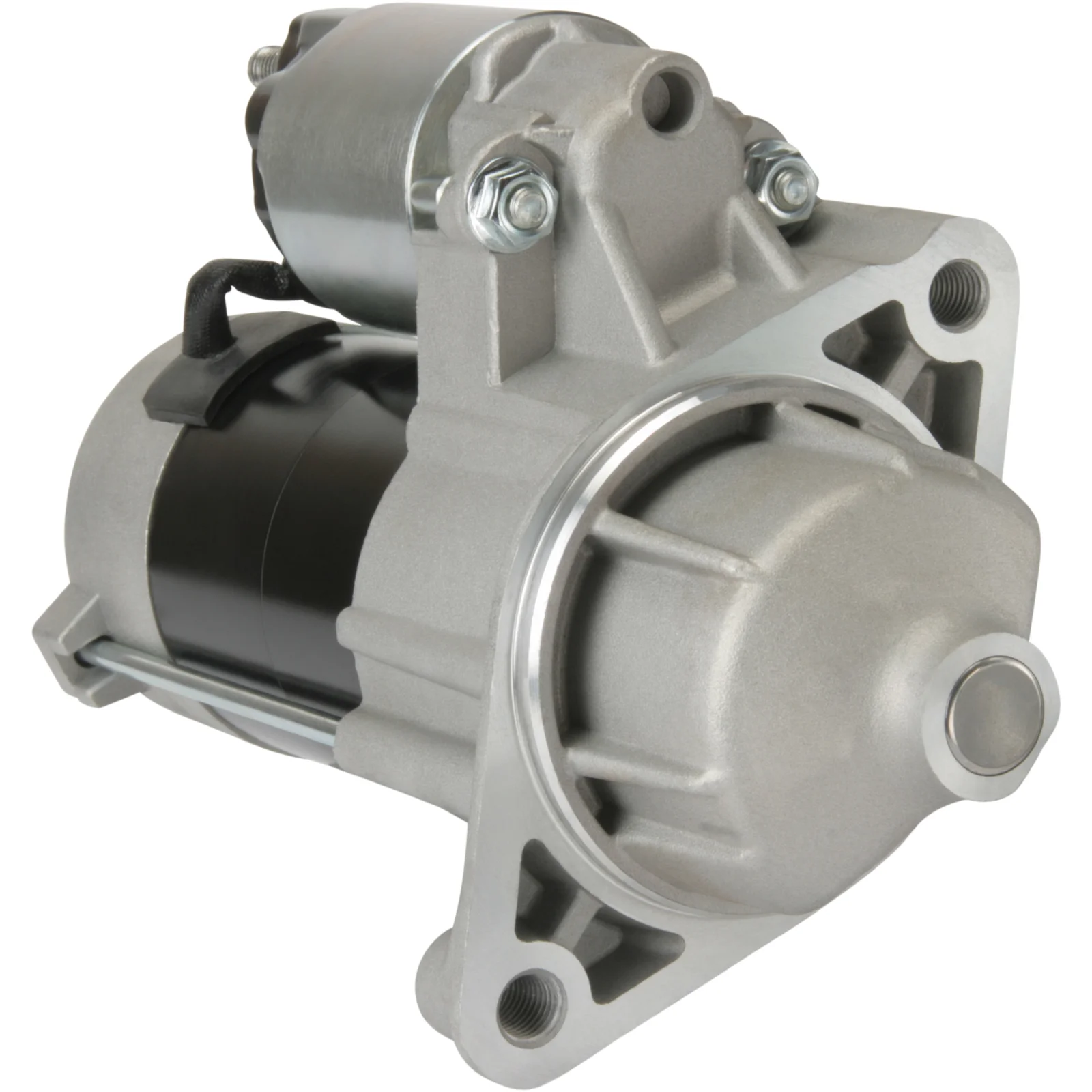

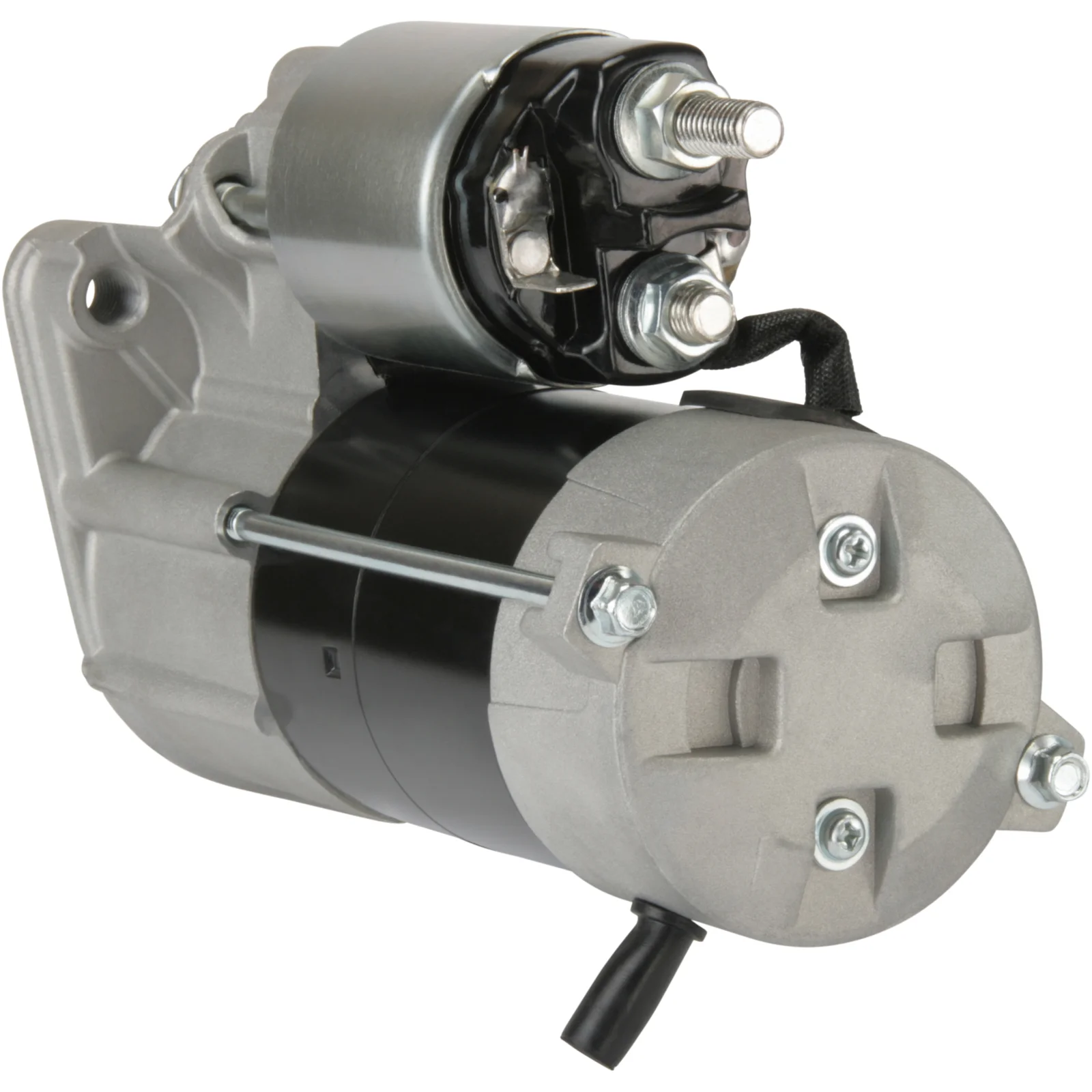

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114860

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 13, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mounting flange: 74.00
Drive distance: 20.50
Distance / back: 159.00
Distance / front: 54.00
Number / teeth: 13
B+: M8
Position / B+: 60
Position / 50: 45
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 115.00
Rotation: CW
Total length in millimeters: 214.00
Position / 30h: 30
Production info: BN
Number / mounting holes: 2 (2)

Files

  • OEM
    F032114860, 6281-100-014-0, 228000-8160, 228000-8161, 228000-9450, 368543M91, 3608543M91, 628110001400, 628110002300

  • Normalised article numbler
    cst40353, drs1003, f032114860, ms656, snd0730, 19786, 19786n, 254431, 368543m91, 3608543m91, 600244132, 650506132, 2280008160, 2280008161, 2280009450, 62811000140, 628110001400, 628110002300
  • Description
    Voltage: 12
    kW: 1.1
    Mounting flange: 74.00
    Drive distance: 20.50
    Distance / back: 159.00
    Distance / front: 54.00
    Number / teeth: 13
    B+: M8
    Position / B+: 60
    Position / 50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 115.00
    Rotation: CW
    Total length in millimeters: 214.00
    Position / 30h: 30
    Production info: BN
    Number / mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032114860, 6281-100-014-0, 228000-8160, 228000-8161, 228000-9450, 368543M91, 3608543M91, 628110001400, 628110002300

    • Normalised article numbler
      cst40353, drs1003, f032114860, ms656, snd0730, 19786, 19786n, 254431, 368543m91, 3608543m91, 600244132, 650506132, 2280008160, 2280008161, 2280009450, 62811000140, 628110001400, 628110002300
