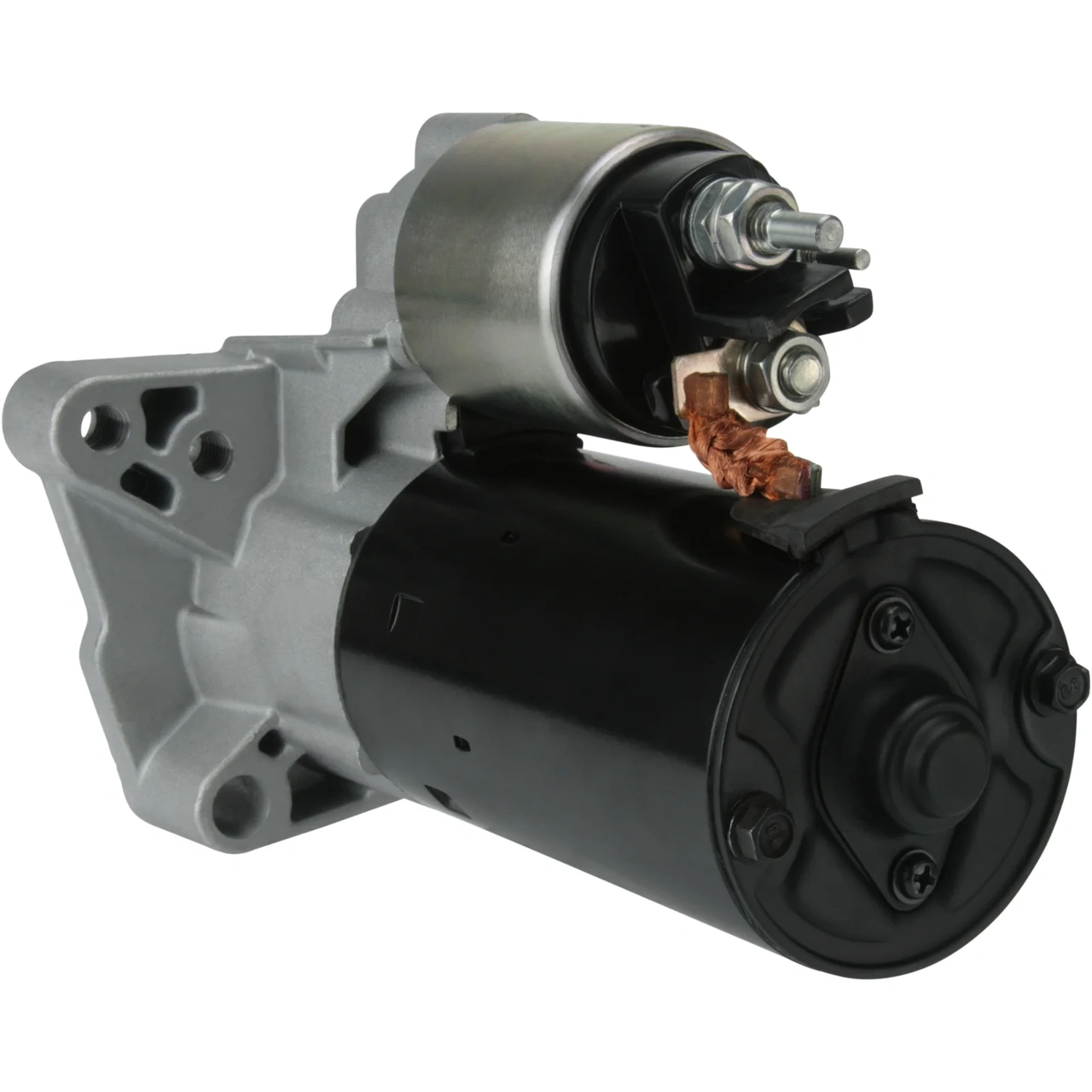

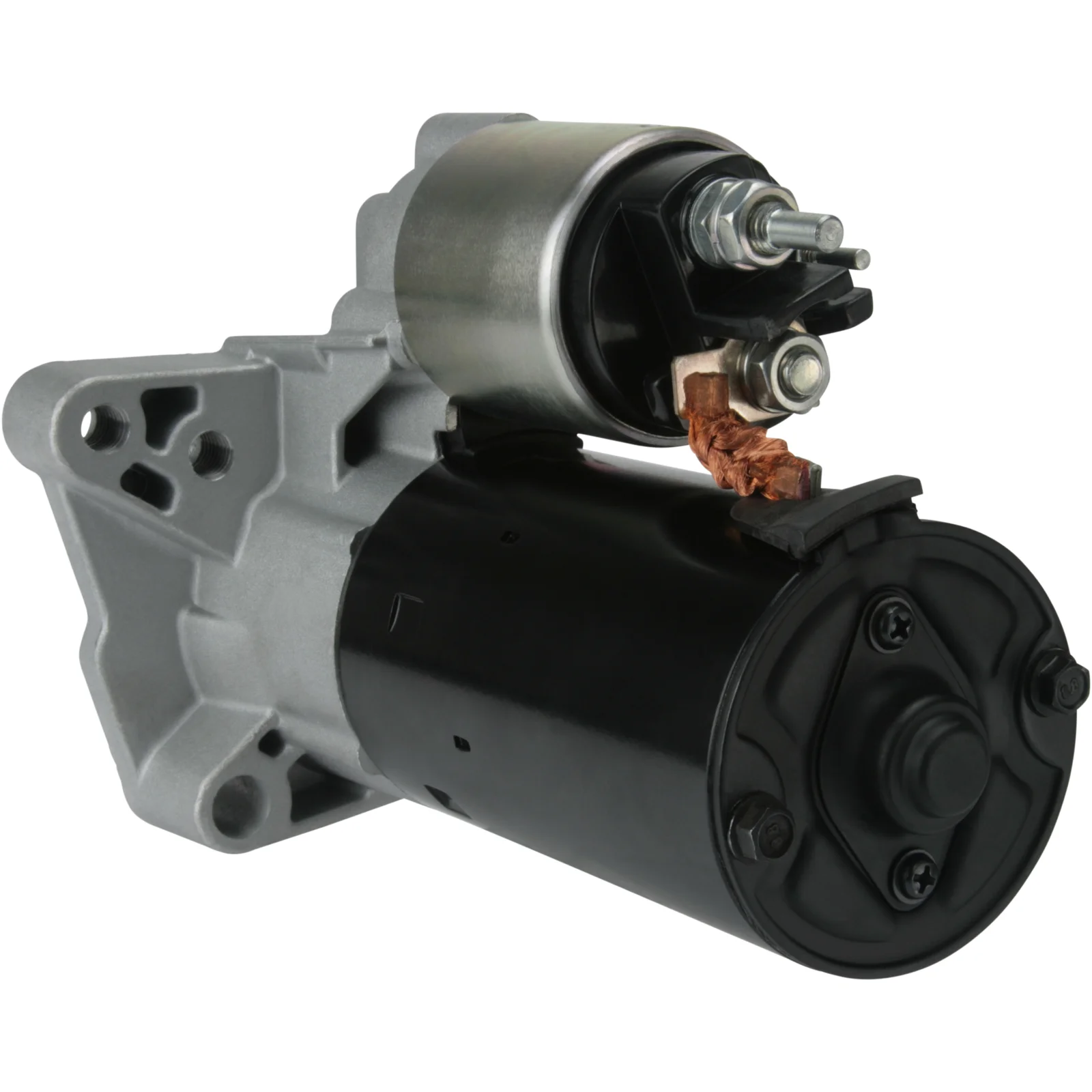

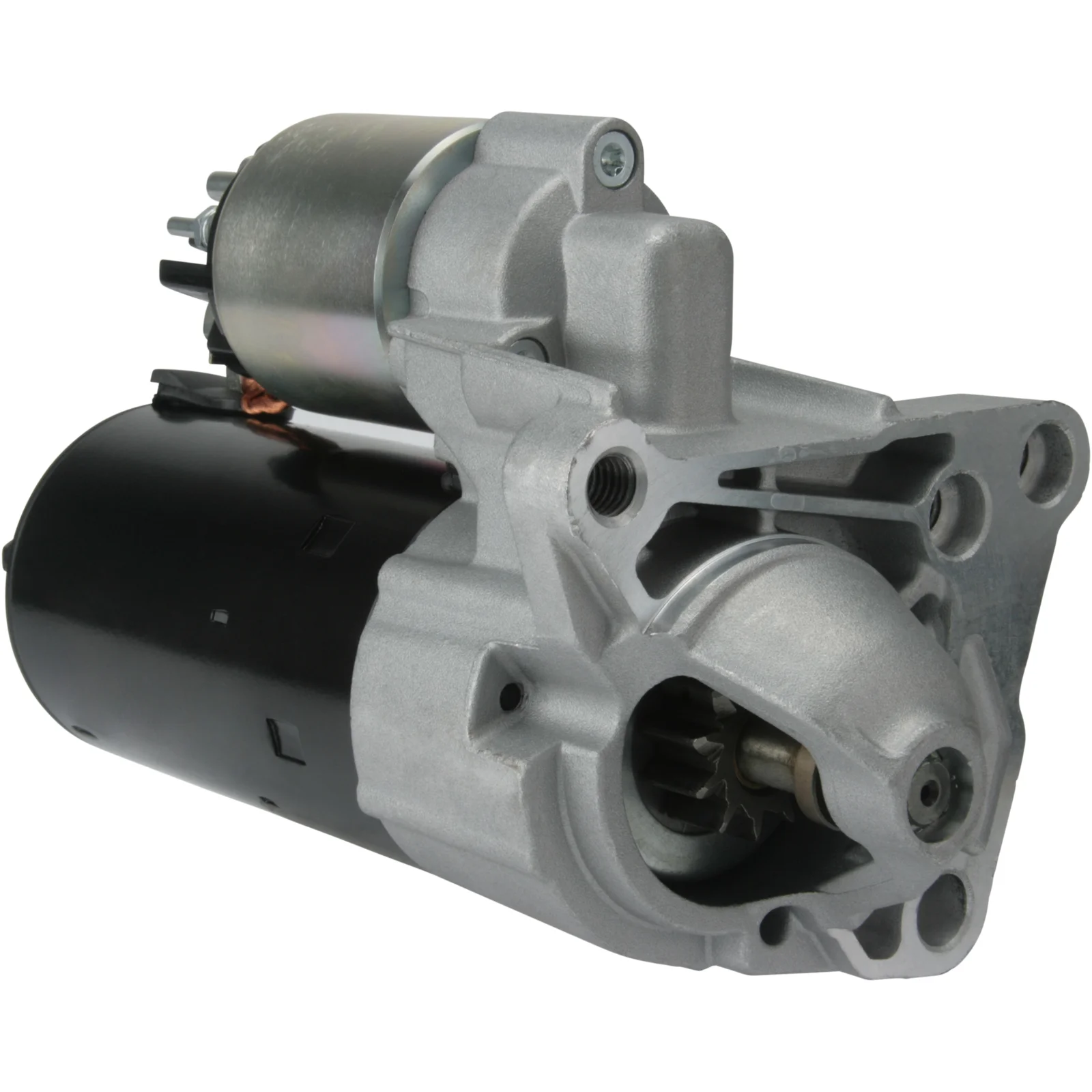

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114869

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 66.00
Drive distance: 0.50
Mounting hole 4 mm: M10
Mounting hole 3 mm: 12.00
Mounting hole 2 mm: M10
Mounting hole 1 mm: M10
Distance/ rear: 174.00
Distance/ front: 33.50
Number/ teeth: 11
B+: M8
Position/50: 10
Terminal 50: M5
Gear type: GR
Distance 2: 74.00
Distance 3: 104.50
Distance 4: 72.50
Distance mm: 22.00
Rotation: CW
Total length mm: 214.00
Production info: BN
Number/ mounting holes: 4 (3)

Files

  • OEM
    F032114869, 1986S00707, 0001108428, 0001108429, 8200741476

  • Normalised article numbler
    cst10442, drs0232, f032114869, lrs02404, s0497, 1986s00707, 3087, 30364n, 220882, 220882a, 254076, 458815, 0001108428, 0001108429, 11024130, 330056112, 0986024130, 8200741476
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 66.00
    Drive distance: 0.50
    Mounting hole 4 mm: M10
    Mounting hole 3 mm: 12.00
    Mounting hole 2 mm: M10
    Mounting hole 1 mm: M10
    Distance/ rear: 174.00
    Distance/ front: 33.50
    Number/ teeth: 11
    B+: M8
    Position/50: 10
    Terminal 50: M5
    Gear type: GR
    Distance 2: 74.00
    Distance 3: 104.50
    Distance 4: 72.50
    Distance mm: 22.00
    Rotation: CW
    Total length mm: 214.00
    Production info: BN
    Number/ mounting holes: 4 (3)

    Files

  • Suitable for these vehicles

    • OEM
      F032114869, 1986S00707, 0001108428, 0001108429, 8200741476

    • Normalised article numbler
      cst10442, drs0232, f032114869, lrs02404, s0497, 1986s00707, 3087, 30364n, 220882, 220882a, 254076, 458815, 0001108428, 0001108429, 11024130, 330056112, 0986024130, 8200741476
