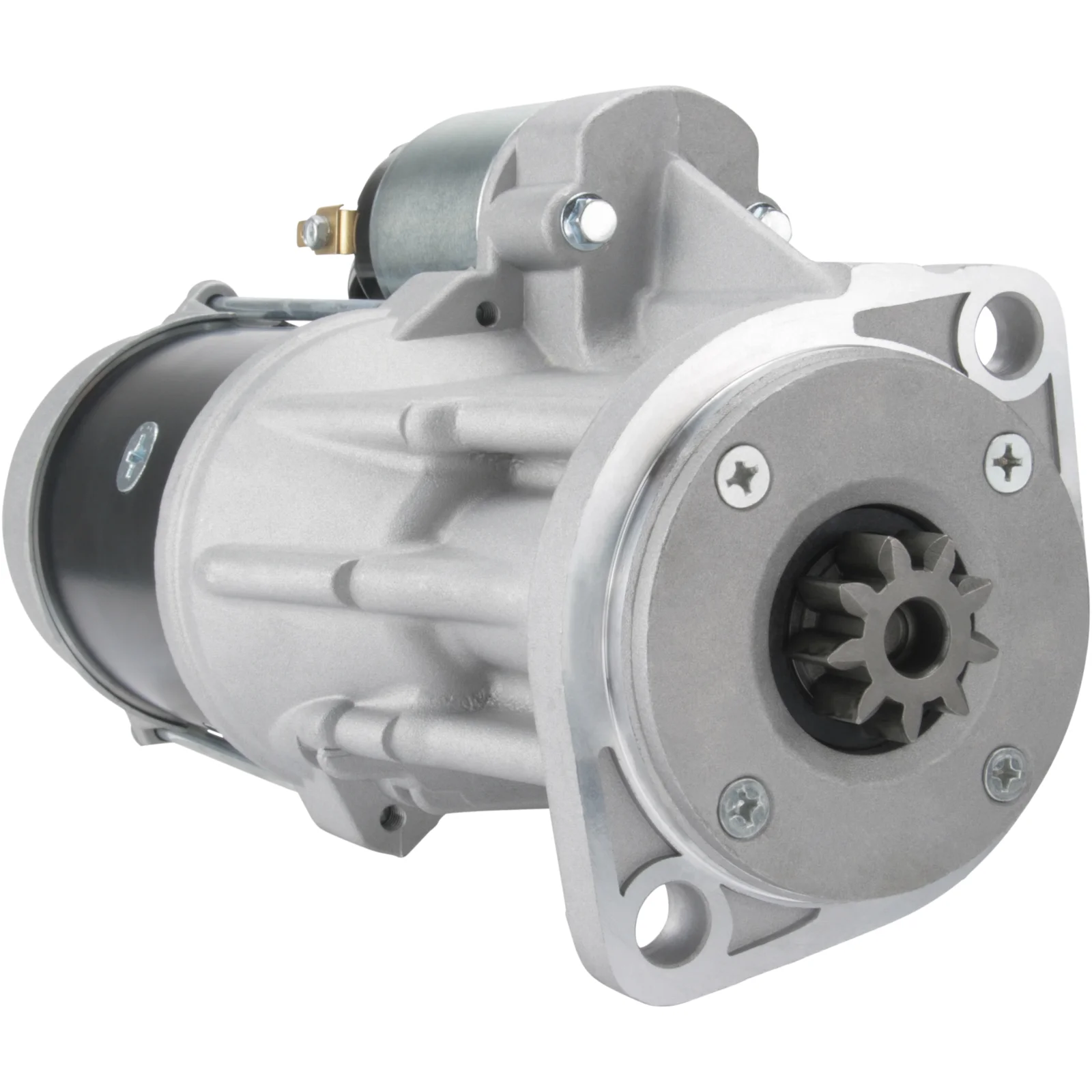

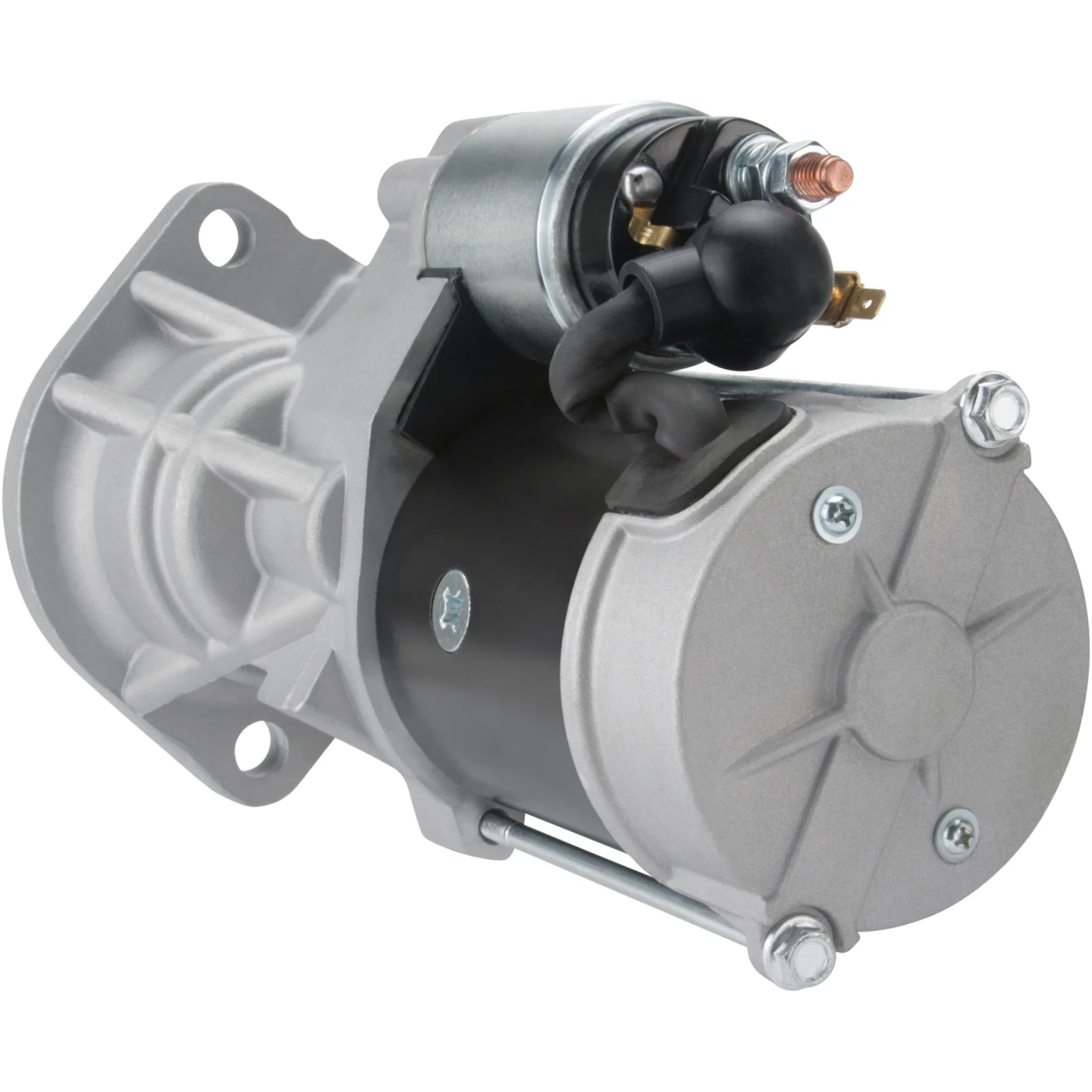

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114874

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mounting flange: 95.00
Drive distance: 21.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 219.00
Distance / front: 21.00
Number / teeth: 9
B+: M8
Position / 50: 20
Terminal 50: M4-6.30
Gear type: GR
Distance mm: 119.50
Rotation: CW
Total length mm: 240.00
Product info: BN
Number / mounting holes: 2 (0)

Files

  • OEM
    F032114874, S14-102, S14-102A, S14-102B, 129940-77010, 129940-77011, 129940-77012, 14522114

  • Normalised article numbler
    cst20226, f032114874, f042200150, lrs02678, s14102, s14102a, s14102b, s2049, 8ea015642221, 19708, 19708n, 254350, 14522114, 682042092, 12994077010, 12994077011, 12994077012
  • Description
    Voltage: 12
    kW: 3.0
    Mounting flange: 95.00
    Drive distance: 21.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 219.00
    Distance / front: 21.00
    Number / teeth: 9
    B+: M8
    Position / 50: 20
    Terminal 50: M4-6.30
    Gear type: GR
    Distance mm: 119.50
    Rotation: CW
    Total length mm: 240.00
    Product info: BN
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114874, S14-102, S14-102A, S14-102B, 129940-77010, 129940-77011, 129940-77012, 14522114

    • Normalised article numbler
      cst20226, f032114874, f042200150, lrs02678, s14102, s14102a, s14102b, s2049, 8ea015642221, 19708, 19708n, 254350, 14522114, 682042092, 12994077010, 12994077011, 12994077012
