HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114887

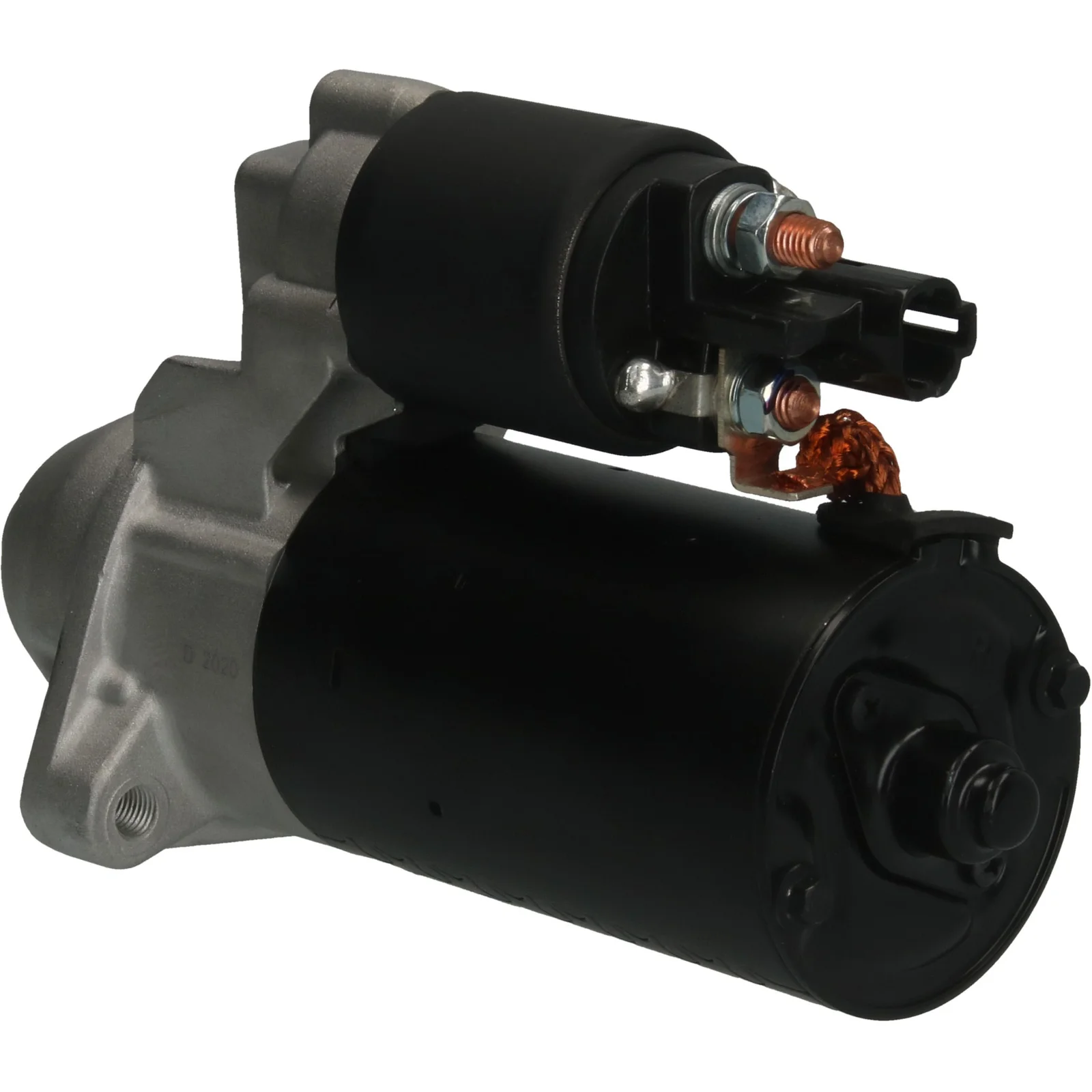

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 77.00
Drive distance: 21.00
Distance / back: 174.00
Distance / front: 55.50
Number / teeth: 9
B+: M8
Position / B+: 60
Position / 50: 17
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 99.50
Rotation: CW
Total length in millimeters: 229.50
Starter motor type: Start/Stop
Number / mounting holes: 2 (0)

Files

  • OEM
    F032114887, M36100-2B300, 1986S00831, 36100-2B300, 0001138017, 0001138018

  • Normalised article numbler
    cst10510, drs0312, f032114887, lrs02458, m361002b300, s0611s, 8ea011611571, 1986s00831, 19158, 19158n, 220546, 220546a, 254130, 361002b300, 438406, 438562, 458837, 0001138017, 0001138018, 150578092, 324066092, 0986025140, 0986025147
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 77.00
    Drive distance: 21.00
    Distance / back: 174.00
    Distance / front: 55.50
    Number / teeth: 9
    B+: M8
    Position / B+: 60
    Position / 50: 17
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 99.50
    Rotation: CW
    Total length in millimeters: 229.50
    Starter motor type: Start/Stop
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114887, M36100-2B300, 1986S00831, 36100-2B300, 0001138017, 0001138018

    • Normalised article numbler
      cst10510, drs0312, f032114887, lrs02458, m361002b300, s0611s, 8ea011611571, 1986s00831, 19158, 19158n, 220546, 220546a, 254130, 361002b300, 438406, 438562, 458837, 0001138017, 0001138018, 150578092, 324066092, 0986025140, 0986025147
