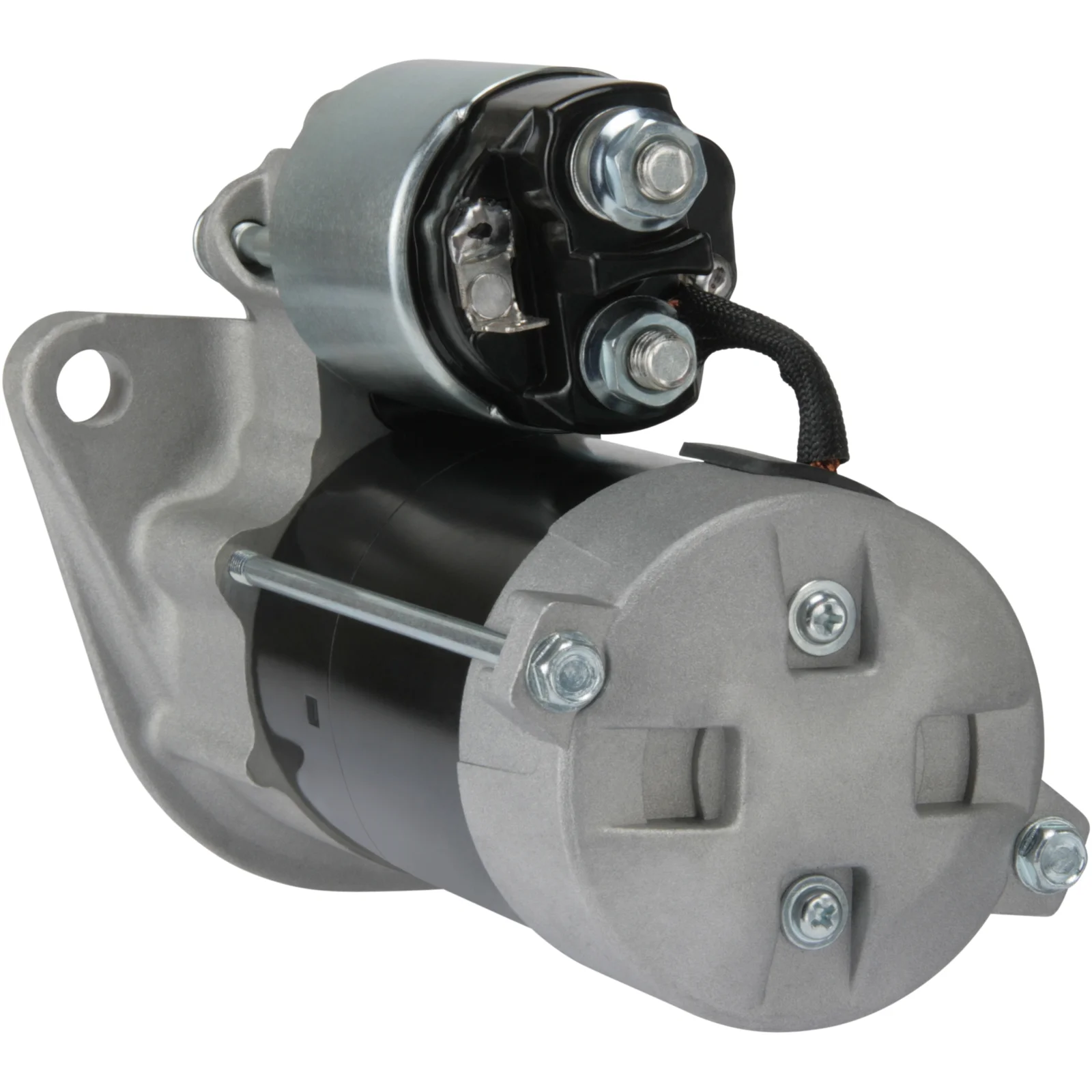

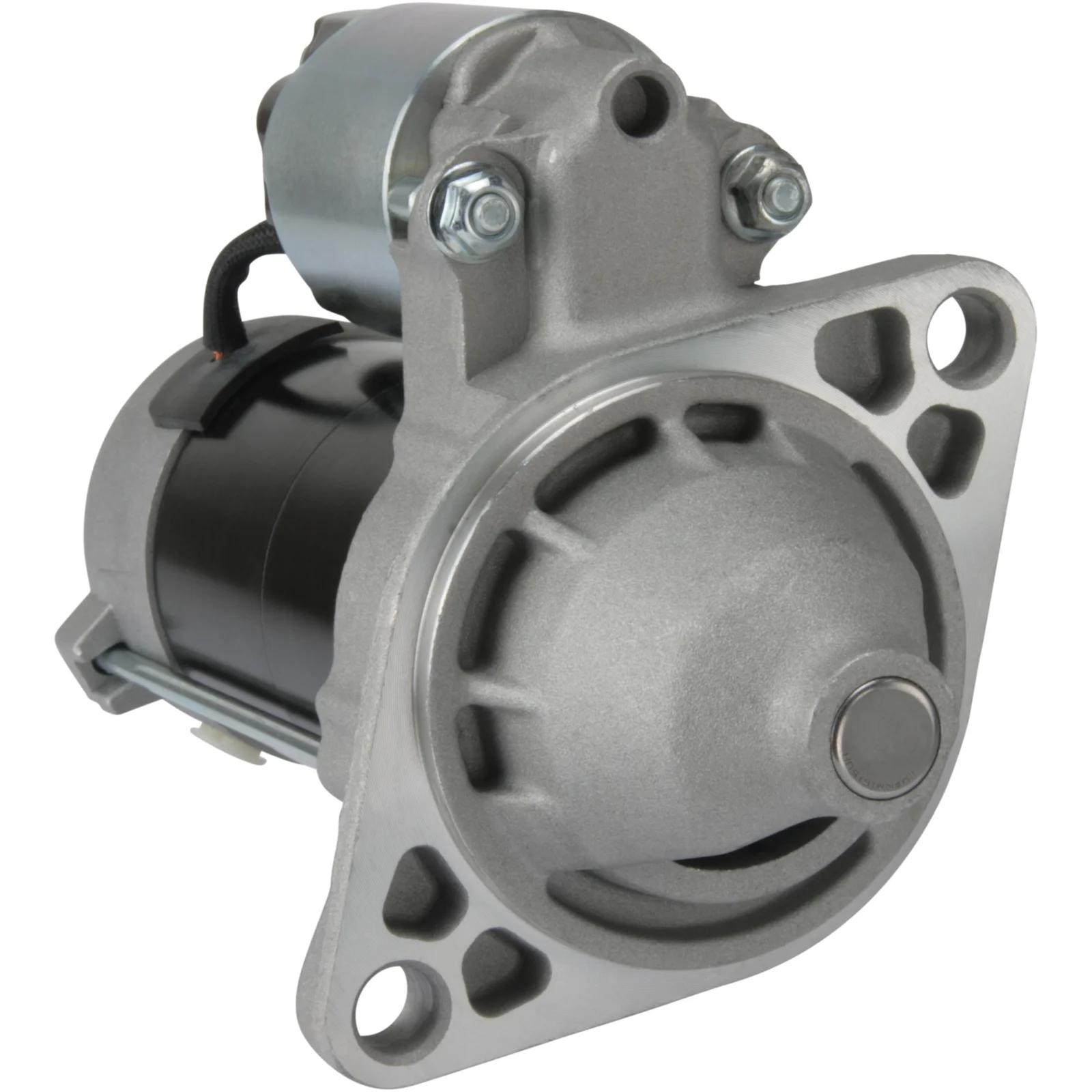

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114891

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mount. flange: 80.00
Drive distance: 21.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Distance / back: 149.00
Distance / front: 54.00
Number / teeth: 9
B+: M8
Position / 50: 45
Terminal 50: 6.30
Gear type: GR
Distributor in millimeters: 120.00
Rotation: CW
Total length in millimeters: 202.00
Product information: BN
Number / mounting holes: 2 (0)

Files

  • OEM
    F032114891, MIU800612, 119515-77010, 119717-77010, 428000-1590, 428000-1591, 428000-2190, 428000-2191, 428000-2192

  • Normalised article numbler
    cst40330, dsn2137, f032114891, lrs02709, miu800612, s6183, 8ea015642201, 8233, 19615, 19615n, 19897, 106421, 254381, 254443, 254524, 682043092, 682047092, 980526092, 4280001590, 4280001591, 4280002190, 4280002191, 4280002192, 11951577010, 11971777010
  • Description
    Voltage: 12
    kW: 1.1
    Mount. flange: 80.00
    Drive distance: 21.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Distance / back: 149.00
    Distance / front: 54.00
    Number / teeth: 9
    B+: M8
    Position / 50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distributor in millimeters: 120.00
    Rotation: CW
    Total length in millimeters: 202.00
    Product information: BN
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114891, MIU800612, 119515-77010, 119717-77010, 428000-1590, 428000-1591, 428000-2190, 428000-2191, 428000-2192

    • Normalised article numbler
      cst40330, dsn2137, f032114891, lrs02709, miu800612, s6183, 8ea015642201, 8233, 19615, 19615n, 19897, 106421, 254381, 254443, 254524, 682043092, 682047092, 980526092, 4280001590, 4280001591, 4280002190, 4280002191, 4280002192, 11951577010, 11971777010
