HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115314

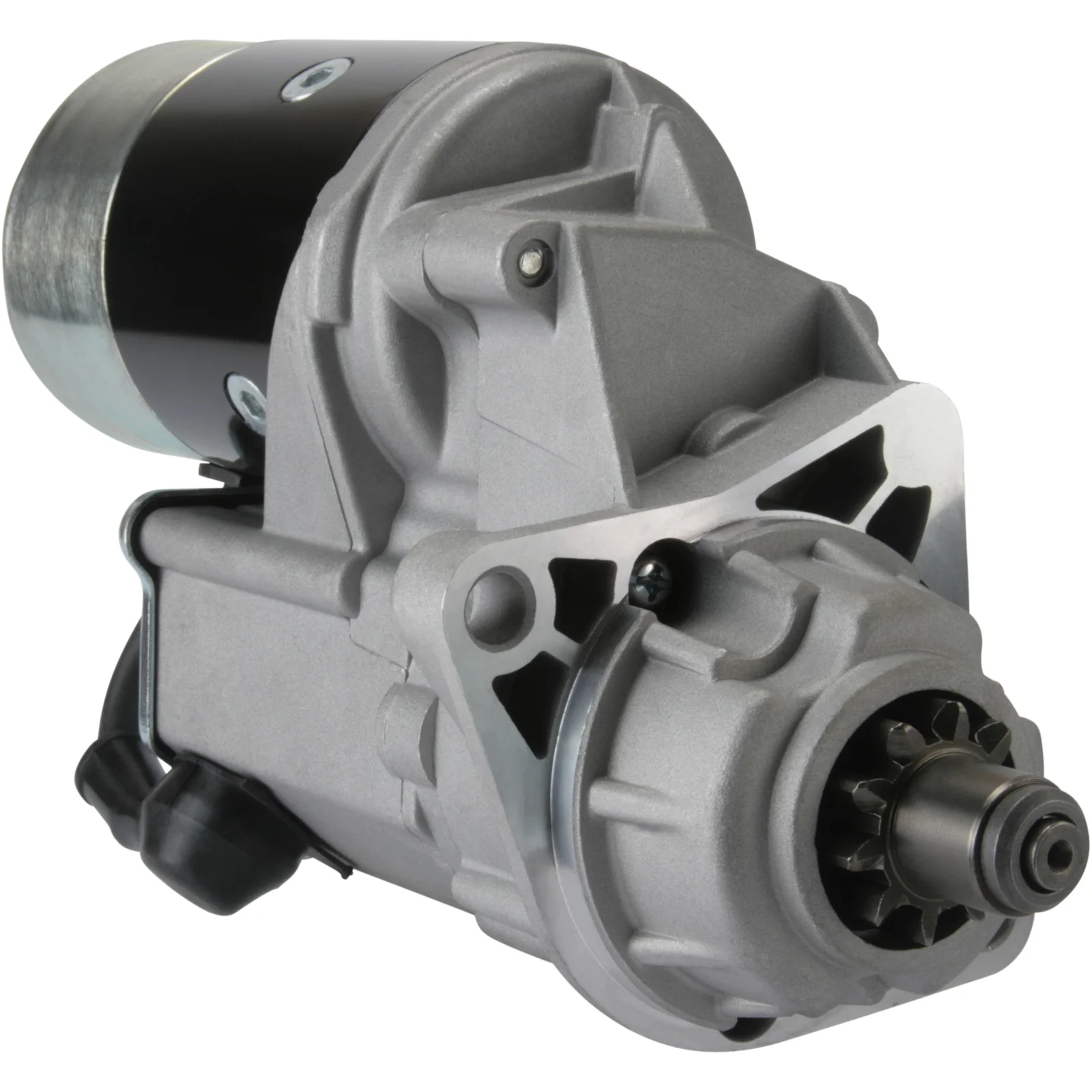

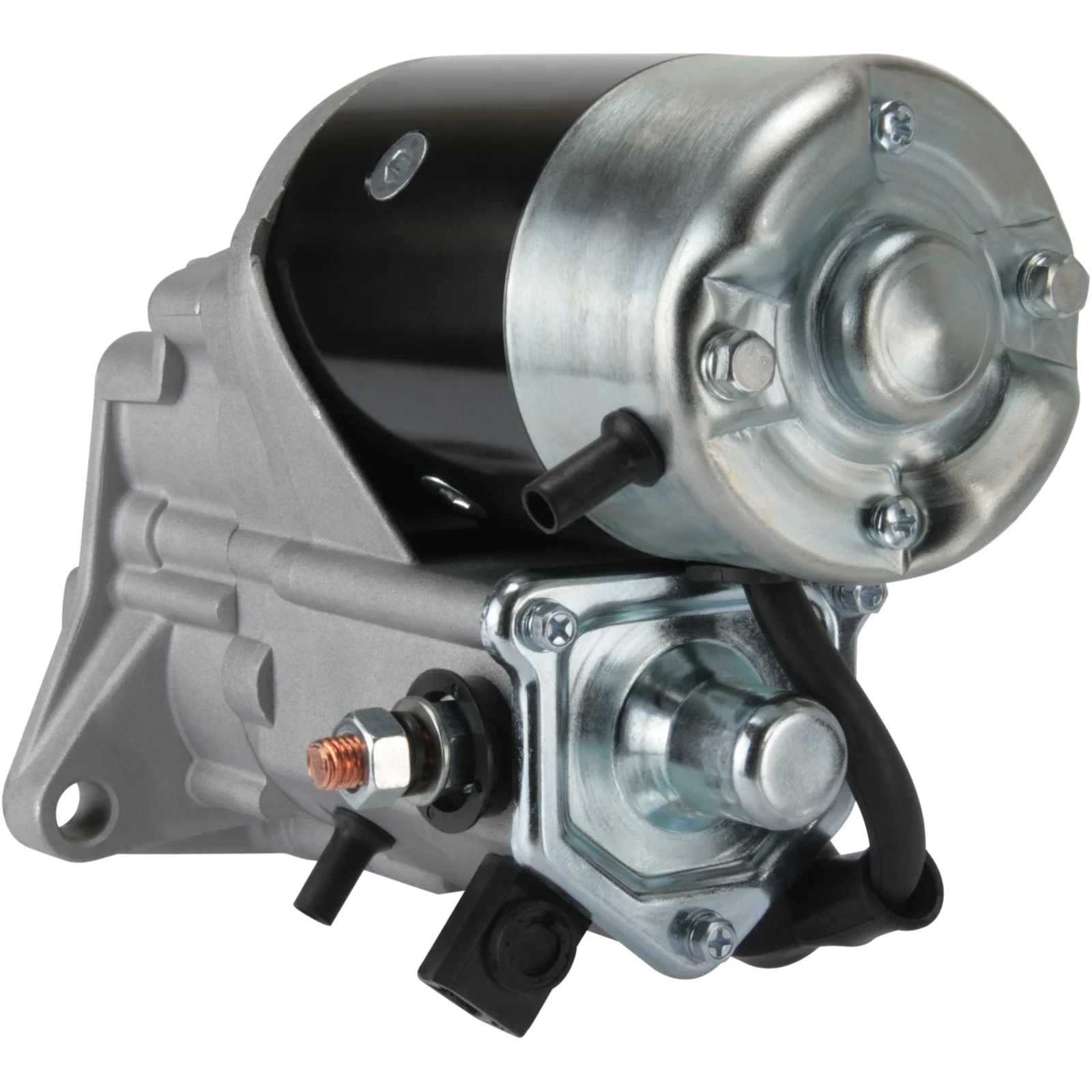

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mounting flange: 89.00
Drive distance: 47.50
Mounting hole 2 mm: 12.00
Mounting hole 1 mm: 12.00
Distance / back: 162.50
Distance / front: 74.00
Number / teeth: 10
B+: M10
Position / 50: 7
Terminal 50: M5
Gear type: GR
Distance in millimeters: 126.50
Rotation: CW
Total length in millimeters: 294.00
Position / 30h: 15
Production info: BN
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032115314, RE50165, RE540301, RE54091, RE59588, TY24436, 228000-0840, 228000-0841, 228000-0842, 228000-0844, 501401

  • Normalised article numbler
    cst40448, dsn2060, f032115314, re50165, re540301, re54091, re59588, s6444s, ty24436, 18456, 18456n, 254628, 501401, 41052285, 630525102, 2280000840, 2280000841, 2280000842, 2280000844
  • Description
    Voltage: 12
    kW: 2.5
    Mounting flange: 89.00
    Drive distance: 47.50
    Mounting hole 2 mm: 12.00
    Mounting hole 1 mm: 12.00
    Distance / back: 162.50
    Distance / front: 74.00
    Number / teeth: 10
    B+: M10
    Position / 50: 7
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 126.50
    Rotation: CW
    Total length in millimeters: 294.00
    Position / 30h: 15
    Production info: BN
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032115314, RE50165, RE540301, RE54091, RE59588, TY24436, 228000-0840, 228000-0841, 228000-0842, 228000-0844, 501401

    • Normalised article numbler
      cst40448, dsn2060, f032115314, re50165, re540301, re54091, re59588, s6444s, ty24436, 18456, 18456n, 254628, 501401, 41052285, 630525102, 2280000840, 2280000841, 2280000842, 2280000844
