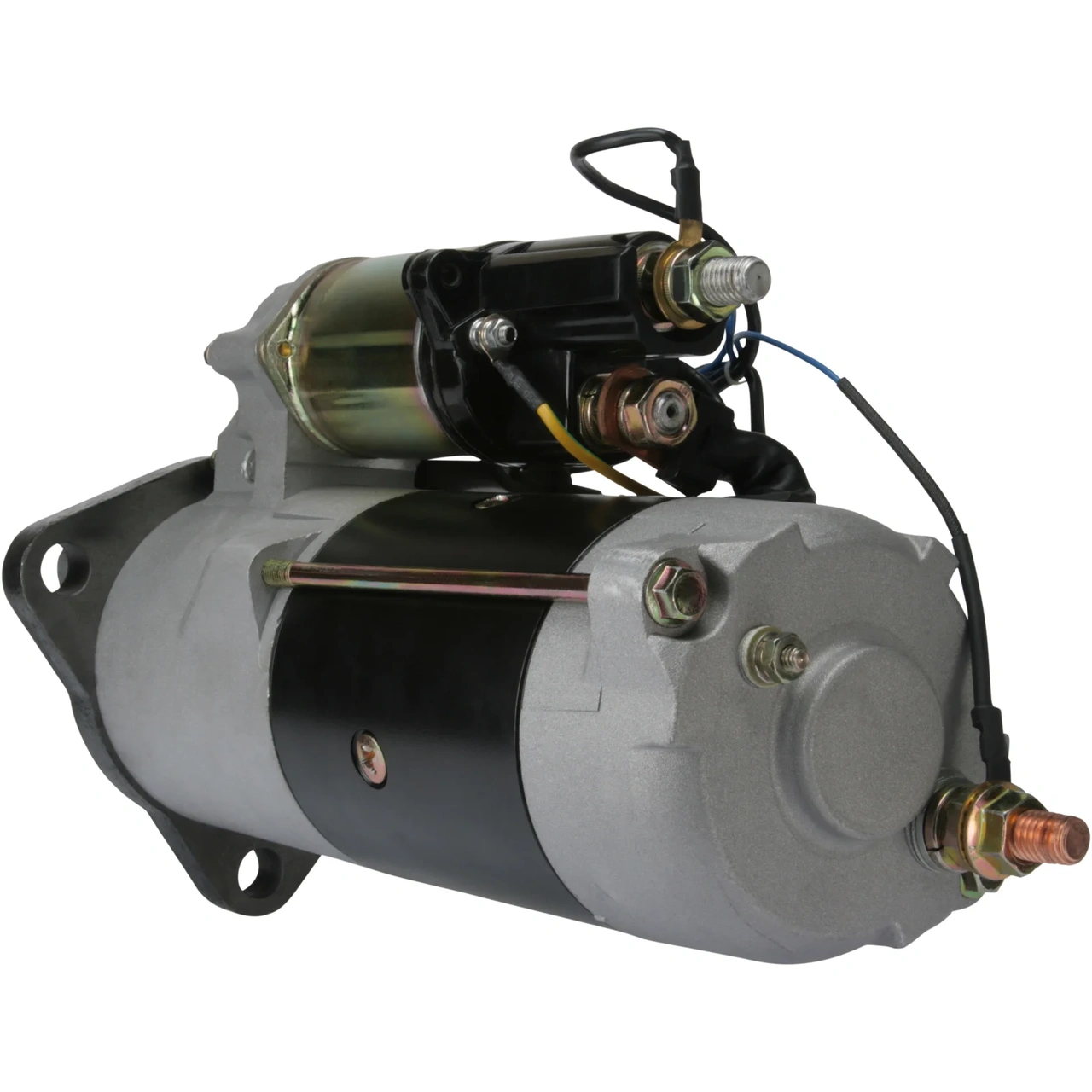

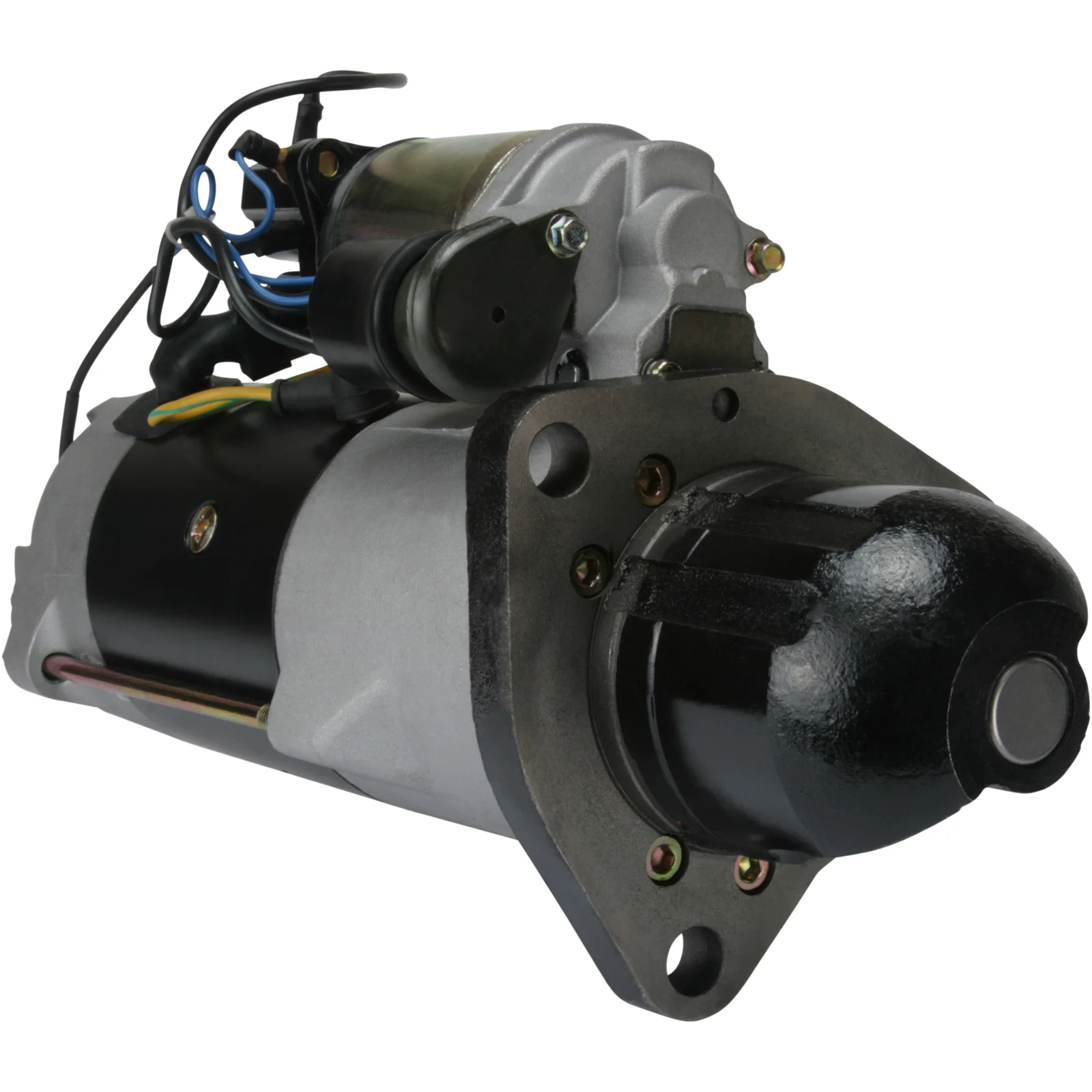

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115326

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 5.0, No./teeth: 12, Rotation: CW

Description

Voltage: 12
kW: 5.0
Insulated return: Yes
Mount. flange: 92.00
Drive distance: 45.50
Mounting hole 3 mm: 16.50
Mounting hole 2 mm: 16.50
Mounting hole 1 mm: 16.50
Distance / back: 345.00
Number / teeth: 12
B+: 1/2" UNC
Terminal 50: M5
Gear type: GR
Dist. 2: 127.00
Dist. 3: 127.00
Distance mm: 127.00
Rotation: CW
B-: 1/2" UNC
Prod. info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    F032115326, 249-3681, 428000-3630, 0003090520, 0007983020, 07983020, 7983020

  • Normalised article numbler
    cst40486, dsn2070, f032115326, 2493681, 0003090520, 0007983020, 07983020, 7983020, 640527123, 4280003630
  • Description
    Voltage: 12
    kW: 5.0
    Insulated return: Yes
    Mount. flange: 92.00
    Drive distance: 45.50
    Mounting hole 3 mm: 16.50
    Mounting hole 2 mm: 16.50
    Mounting hole 1 mm: 16.50
    Distance / back: 345.00
    Number / teeth: 12
    B+: 1/2" UNC
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 127.00
    Distance mm: 127.00
    Rotation: CW
    B-: 1/2" UNC
    Prod. info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032115326, 249-3681, 428000-3630, 0003090520, 0007983020, 07983020, 7983020

    • Normalised article numbler
      cst40486, dsn2070, f032115326, 2493681, 0003090520, 0007983020, 07983020, 7983020, 640527123, 4280003630
