HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115333

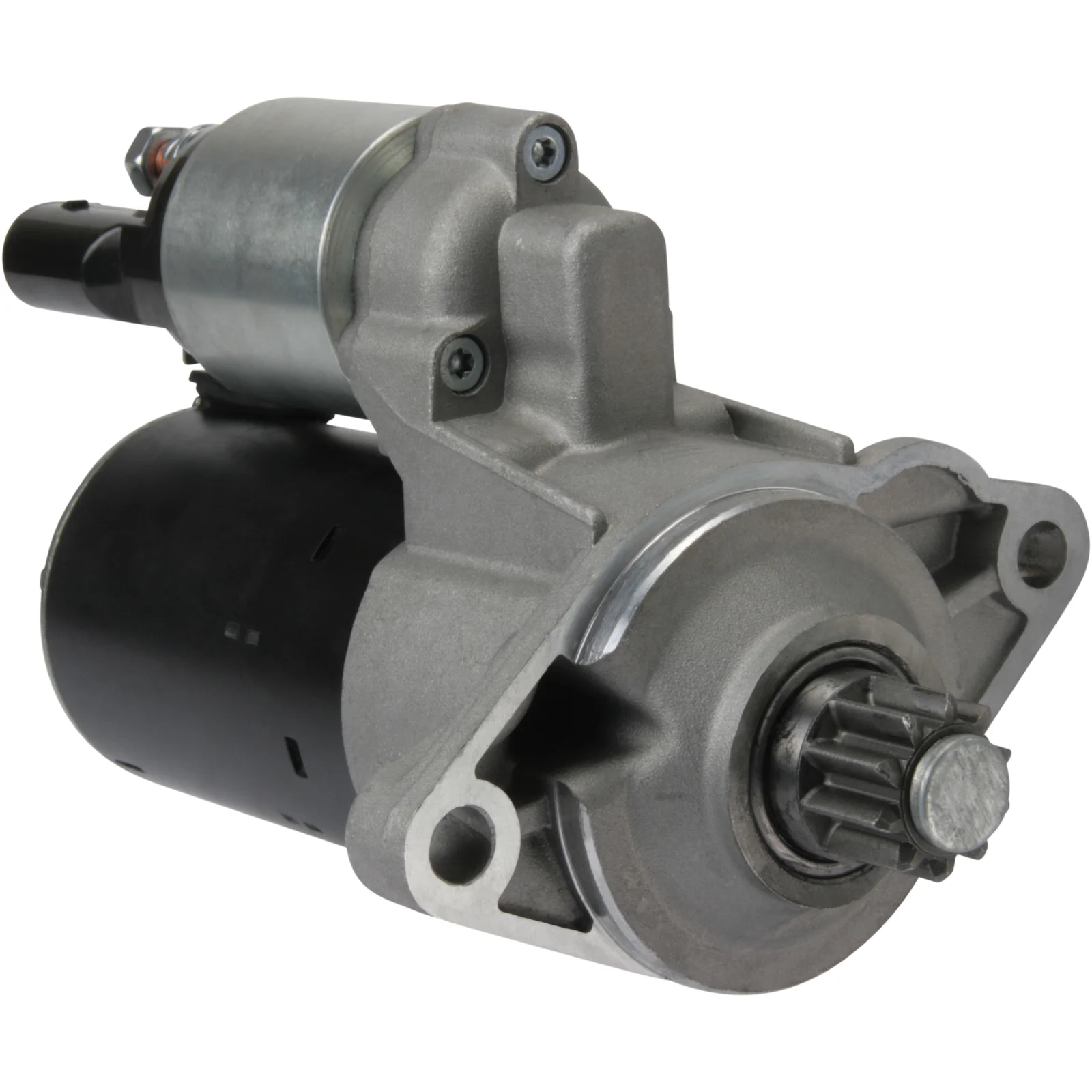

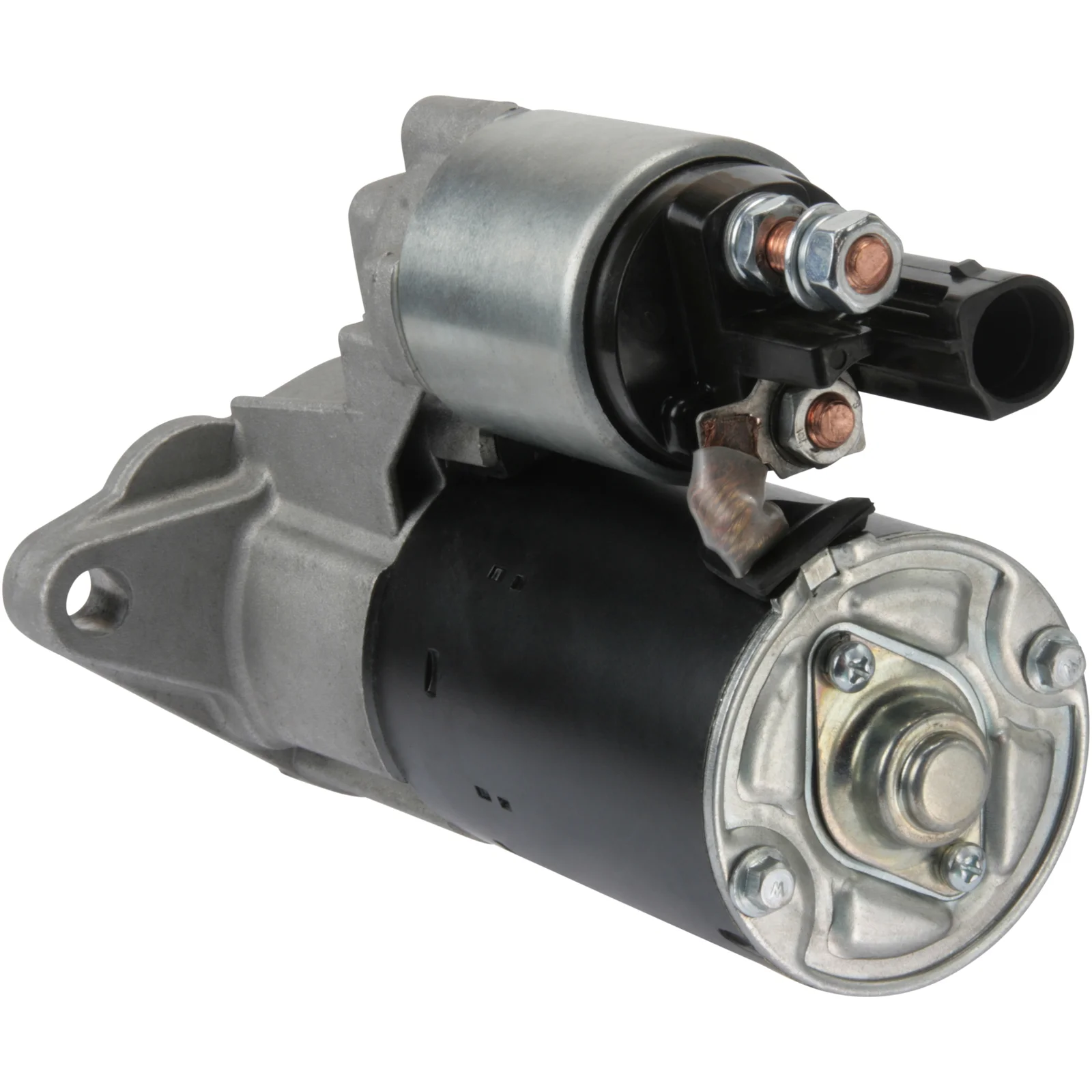

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 10, Rotation: CCW

Description

HC-Cargo Starter motor (A/T) 12V - 1.0kW, 10k, CCW A - 76mm, B - 42.5mm Usually with A/T

Voltage: 12
kW: 1.0
Mounting flange: 76.20
Drive distance: 43.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 158.00
Distance / front: 46.00
Number / teeth: 10
B+: M8
Position / 50: 15
Terminal 50: Plug
Gear type: GR
Distance mm: 119.00
Rotation: CCW
Total length mm: 216.00
Production info: BN
Number / mounting holes: 2 (0)

Files

  • OEM
    cs1409, F032115333, 0001 121 412, 0001 121 413, 02E 911 023J, 02E 911023JX, 02e911023j, 02E911023JX, 0986 022 290, 1986S00790, 115333, 0001121412, 0001121413

  • Normalised article numbler
    cs1409, cst10412, drt2290, f032115333, s0629bosch, s0629pr, s0629s, 02e911023j, 02e911023jx, 8ea012527961, 8ea738258571, 1986s00790, 3045, 19001n, 19001r, 101409, 115333, 220665, 220665a, 253391, 458823, 0001121412, 0001121413, 8022290, 11022290, 42022290, 311400102, 0986022290, 0986022297, 063521214120
  • Description
    HC-Cargo Starter motor (A/T) 12V - 1.0kW, 10k, CCW A - 76mm, B - 42.5mm Usually with A/T

    Voltage: 12
    kW: 1.0
    Mounting flange: 76.20
    Drive distance: 43.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 158.00
    Distance / front: 46.00
    Number / teeth: 10
    B+: M8
    Position / 50: 15
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 119.00
    Rotation: CCW
    Total length mm: 216.00
    Production info: BN
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1409, F032115333, 0001 121 412, 0001 121 413, 02E 911 023J, 02E 911023JX, 02e911023j, 02E911023JX, 0986 022 290, 1986S00790, 115333, 0001121412, 0001121413

    • Normalised article numbler
      cs1409, cst10412, drt2290, f032115333, s0629bosch, s0629pr, s0629s, 02e911023j, 02e911023jx, 8ea012527961, 8ea738258571, 1986s00790, 3045, 19001n, 19001r, 101409, 115333, 220665, 220665a, 253391, 458823, 0001121412, 0001121413, 8022290, 11022290, 42022290, 311400102, 0986022290, 0986022297, 063521214120
