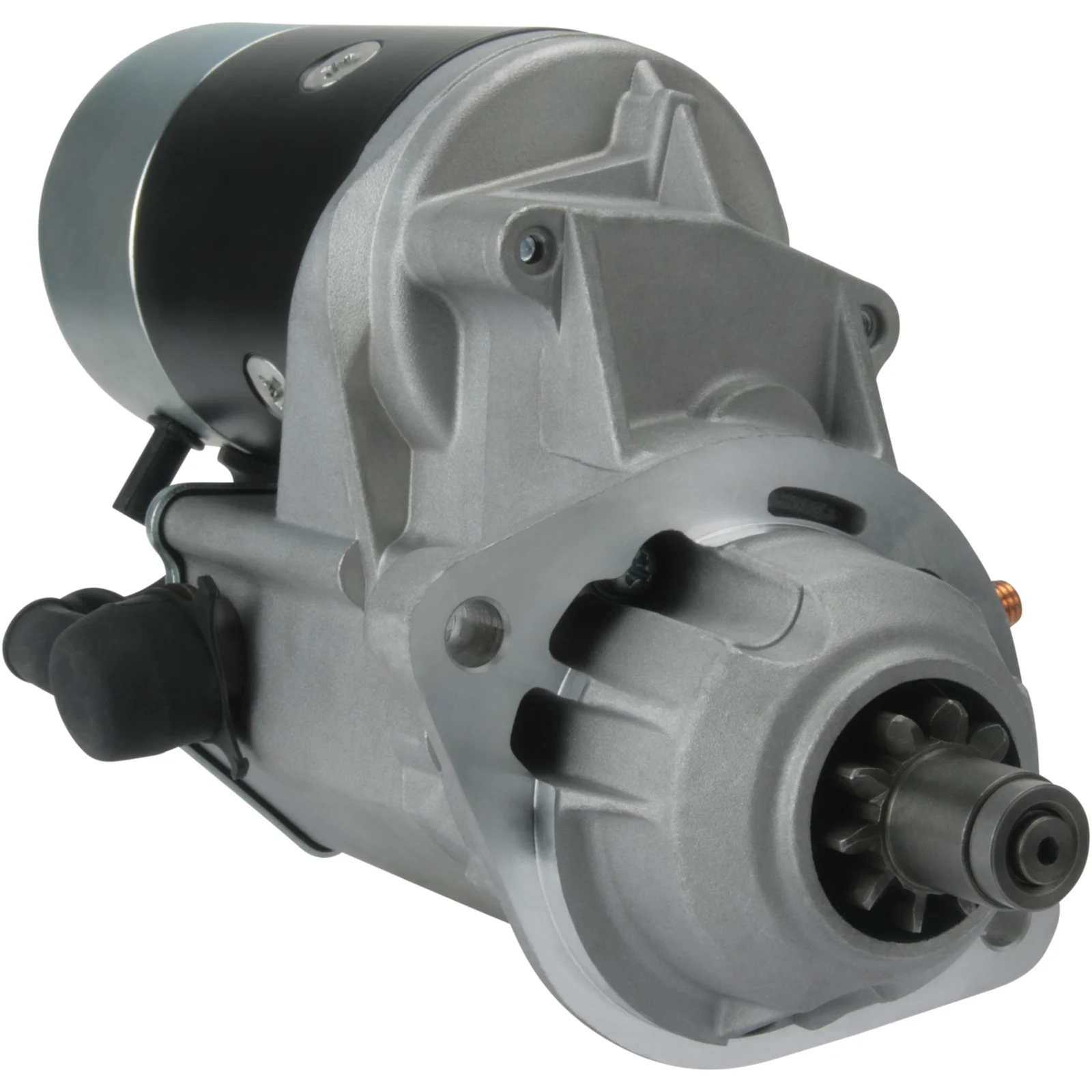

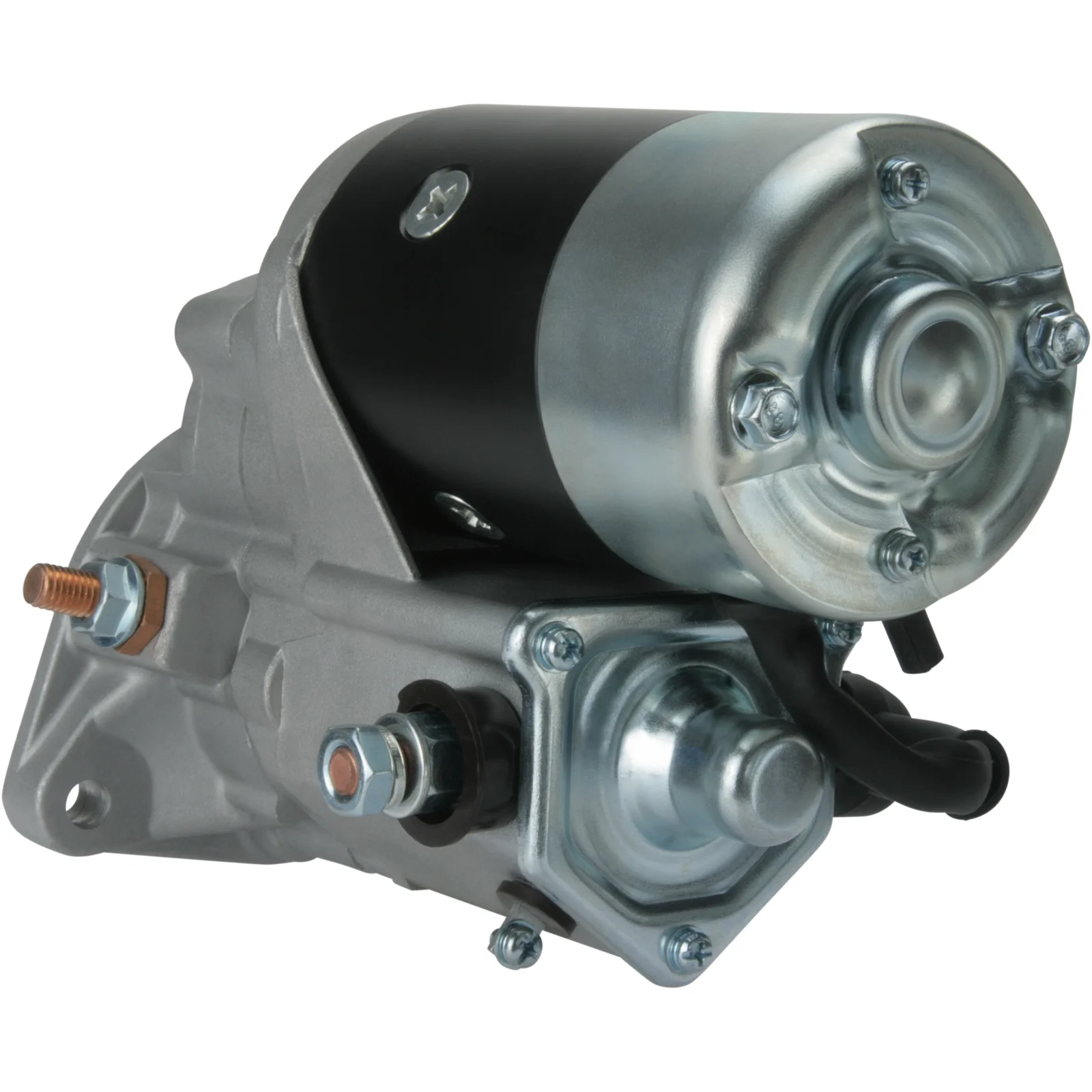

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115352

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 161.00
Distance / front: 73.00
Number / teeth: 10
B+: M10
Position / 50: 40
Terminal 50: M5
Gear type: GR
Distance in millimeters: 127.00
Rotation: CW
Position / b-: 50
B-: M10
Total length in millimeters: 294.50
Clutch type: Dry
Product info: BN
Number / mounting holes: 2 (0)

Files

  • OEM
    F032115352, 428000-2870, 428000-2900, 428000-2910, 428000-2911, 428000-2920, 428080-2910, 428080-2920, 1654059, 3971610, 3971613, 3971614, 3971615

  • Normalised article numbler
    cst40332, dsn2049, dsn2050, f032115352, lrs04015, s6374s, 19104n, 19806, 106696, 254396, 255177, 1654059, 3971610, 3971613, 3971614, 3971615, 640518102, 4280002870, 4280002900, 4280002910, 4280002911, 4280002920, 4280802910, 4280802920
  • Description
    Voltage: 12
    kW: 2.5
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 161.00
    Distance / front: 73.00
    Number / teeth: 10
    B+: M10
    Position / 50: 40
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 127.00
    Rotation: CW
    Position / b-: 50
    B-: M10
    Total length in millimeters: 294.50
    Clutch type: Dry
    Product info: BN
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032115352, 428000-2870, 428000-2900, 428000-2910, 428000-2911, 428000-2920, 428080-2910, 428080-2920, 1654059, 3971610, 3971613, 3971614, 3971615

    • Normalised article numbler
      cst40332, dsn2049, dsn2050, f032115352, lrs04015, s6374s, 19104n, 19806, 106696, 254396, 255177, 1654059, 3971610, 3971613, 3971614, 3971615, 640518102, 4280002870, 4280002900, 4280002910, 4280002911, 4280002920, 4280802910, 4280802920
